Description

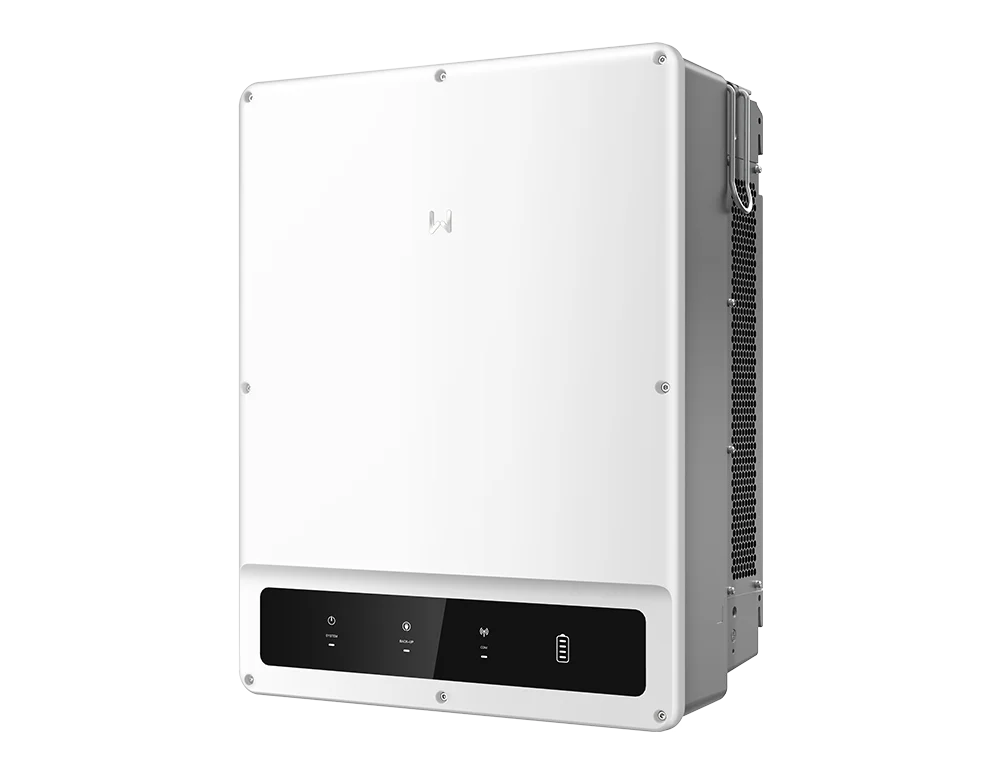

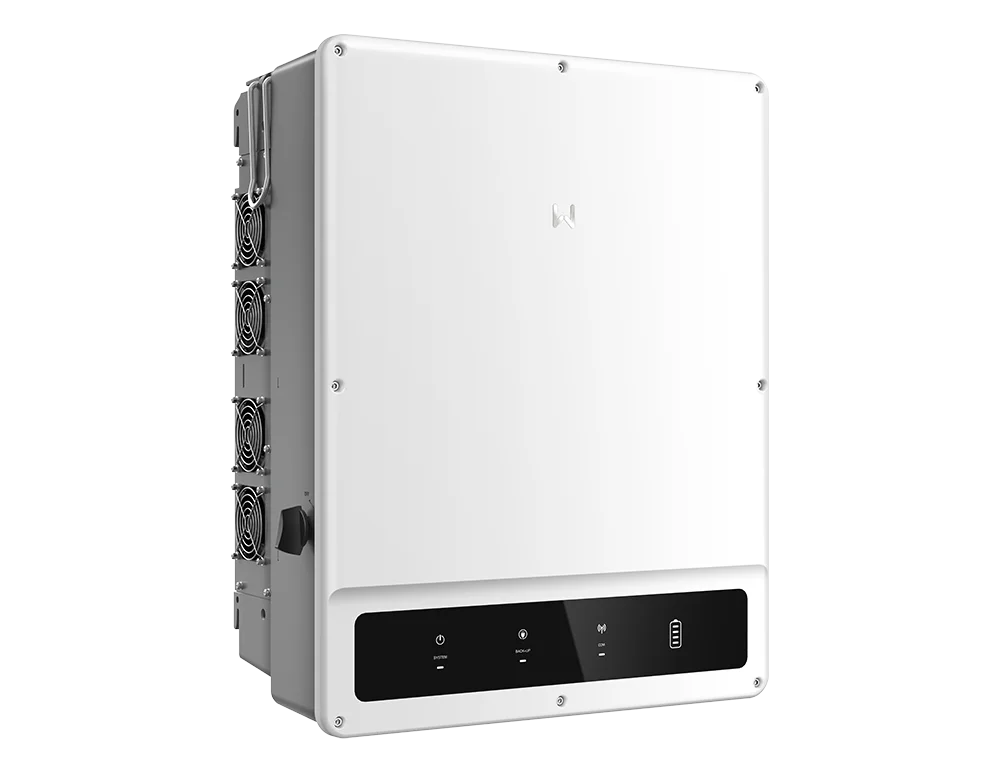

The GoodWe ET Series (25-50kW) is a three phase high voltage hybrid inverter with 3 or 4 MPPTs, offering 21A input current and peak shaving support today.
Key Features
- Superb Safety & Reliability: Type II surge protection on DC side is integrated to protect the inverter from lightning, providing upgraded safety and reliability for the PV system. With an optional Arc Fault Circuit Interrupter (AFCI), the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously.
- High Generation and Optimized Consumption: The ET Series has been improved for compatibility with high-power modules, with a maximum of 21A input current per string. The 150% DC input oversizing and 98.1% maximum efficiency, drive your inverter to its full capacity to increase your power output in lower solar radiation conditions.
Technical Specifications
GW50K-ET-10
| Battery Voltage Range (V) | 200~800 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 100 / 100 |
| Max. Input Current per MPPT (A) | 42 / 32 / 42 / 32 |
| Max. Apparent Power Output to Utility Grid (VA) | 50000 |
| Back-up Nominal Apparent Power (VA) | 50000 |
GW40K-ET-10
| Battery Voltage Range (V) | 200~800 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 100 / 100 |
| Max. Input Current per MPPT (A) | 42 / 32 / 42 |
| Max. Apparent Power Output to Utility Grid (VA) | 40000 |
| Back-up Nominal Apparent Power (VA) | 40000 |
GW30K-ET-10
| Battery Voltage Range (V) | 200~800 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 100 / 100 |
| Max. Input Current per MPPT (A) | 42 / 32 / 42 |
| Max. Apparent Power Output to Utility Grid (VA) | 30000 |
| Back-up Nominal Apparent Power (VA) | 30000 |
GW25K-ET-10
| Battery Voltage Range (V) | 200~800 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 100 / 100 |
| Max. Input Current per MPPT (A) | 42 / 32 / 42 |
| Max. Apparent Power Output to Utility Grid (VA) | 25000 |
| Back-up Nominal Apparent Power (VA) | 25000 |
