Description

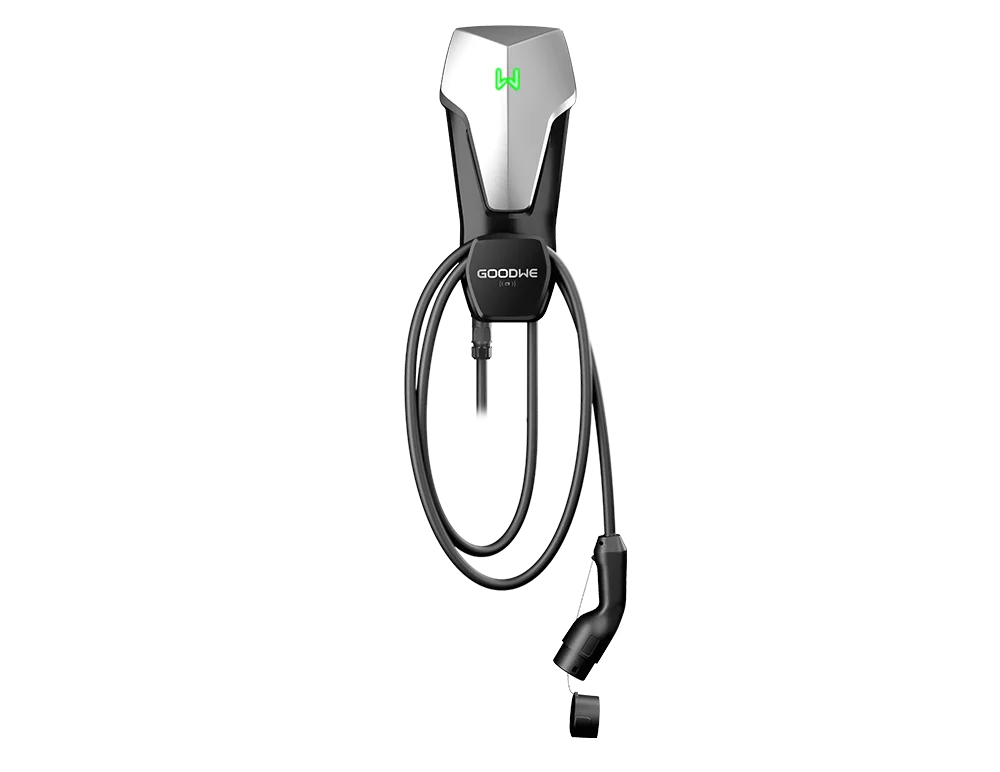

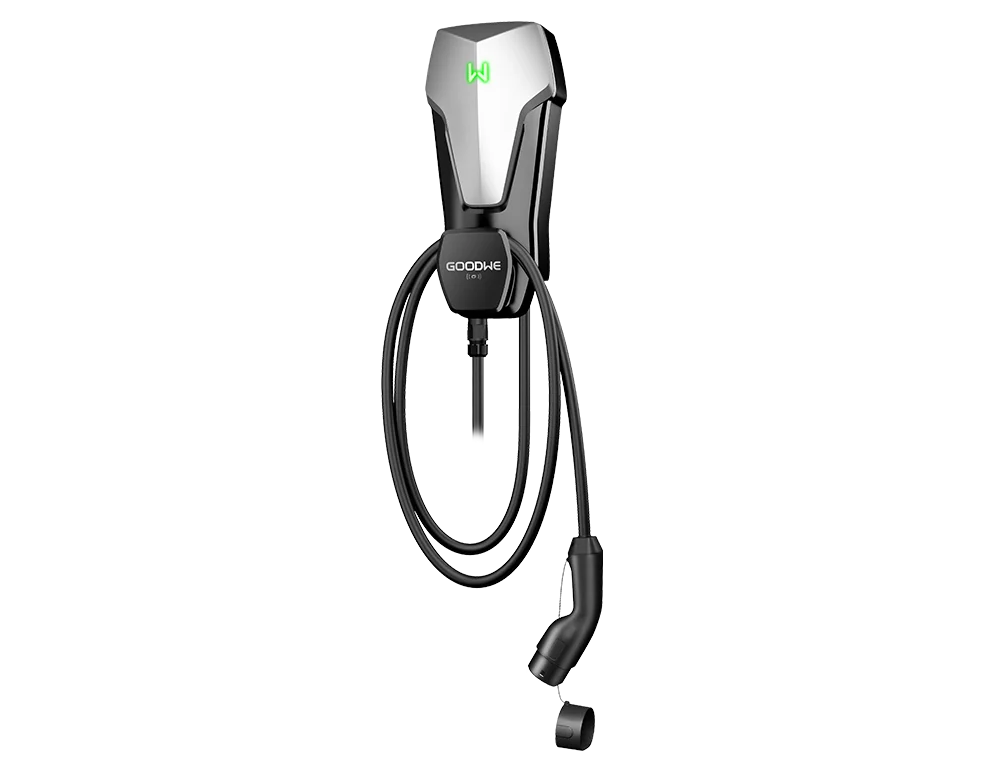

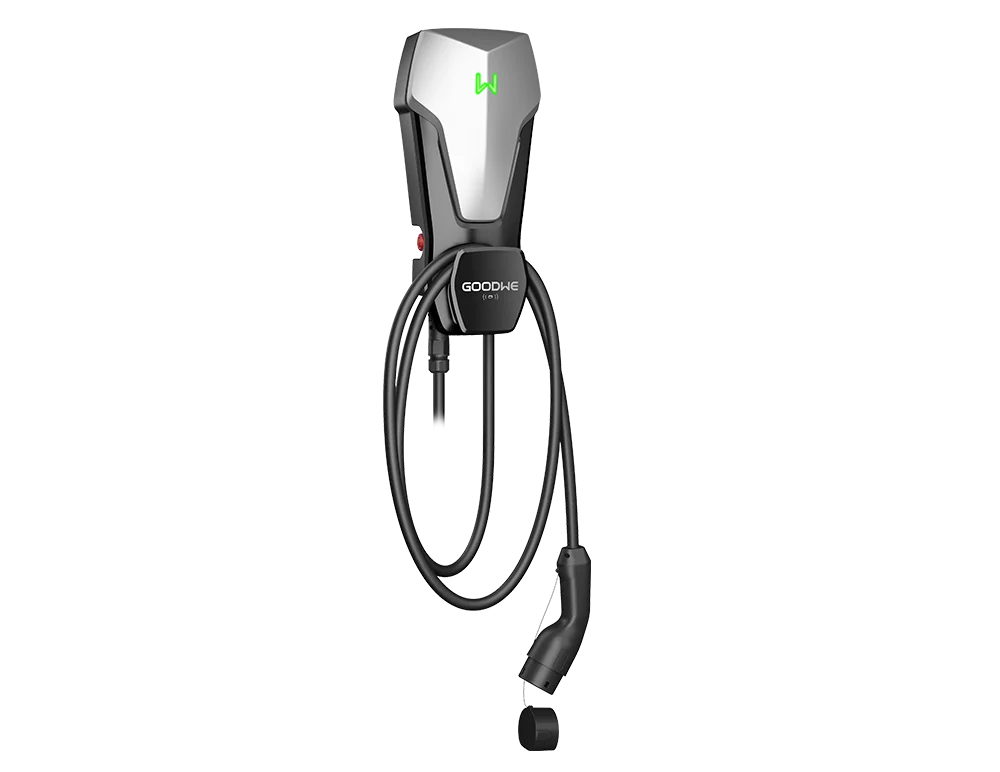

GoodWe's HCA G2 Series AC Charger enables drivers to maximize solar energy for EV charging, offering single phase 7kW and three phase 11 or 22kW output.
Key Features
- Remote Control & Monitoring: The GoodWe HCA G2 EV Charger provides various communication options and integrates seamlessly with the cost-free monitoring platform SEMS+. Therefore, system owners are able to intelligently monitor both the PV and charging systems, schedule charging processes, and optimize all household energy.
- Modern & User-friendly Design: With a wall-mounted and pole-mounted design and IP66 protection against all weather conditions, the GoodWe HCA G2 EV Charger is a great option whether you want to install it indoors or outdoors. Small, lightweight, and compact, the EV Charger can be installed and maintained in a hassle-free manner.
Technical Specifications
GW22K-HCA-20
| Nominal Input Voltage (V) | 400, 3L / N / PE |
|---|---|
| Nominal AC Grid Frequency (Hz) | 50 / 60 |
| Nominal Output Power (W) | 22000 |
| Nominal Output Current (A) | 32 |
| Dimension (W × H × D mm) | 208 × 450 × 170 |
GW11K-HCA-20
| Nominal Input Voltage (V) | 400, 3L / N / PE |
|---|---|
| Nominal AC Grid Frequency (Hz) | 50 / 60 |
| Nominal Output Power (W) | 11000 |
| Nominal Output Current (A) | 16 |
| Dimension (W × H × D mm) | 208 × 450 × 170 |
GW7K-HCA-20
| Nominal Input Voltage (V) | 230, L / N / PE |
|---|---|
| Nominal AC Grid Frequency (Hz) | 50 / 60 |
| Nominal Output Power (W) | 7000 |
| Nominal Output Current (A) | 32 |
| Dimension (W × H × D mm) | 208 × 450 × 170 |
