Description

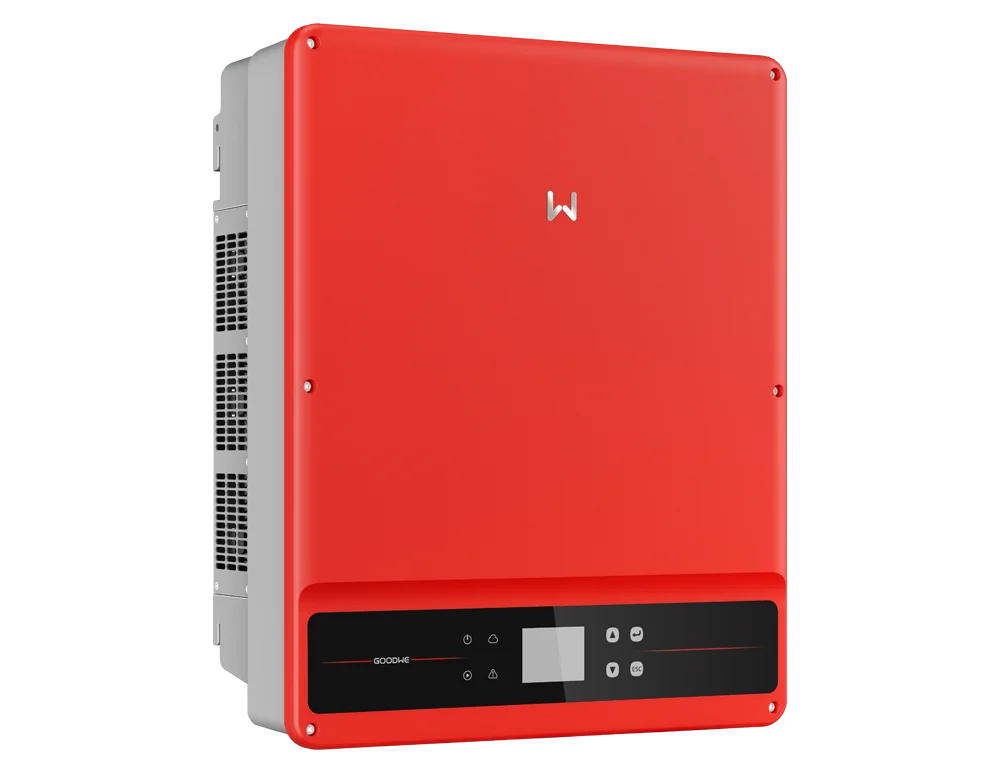

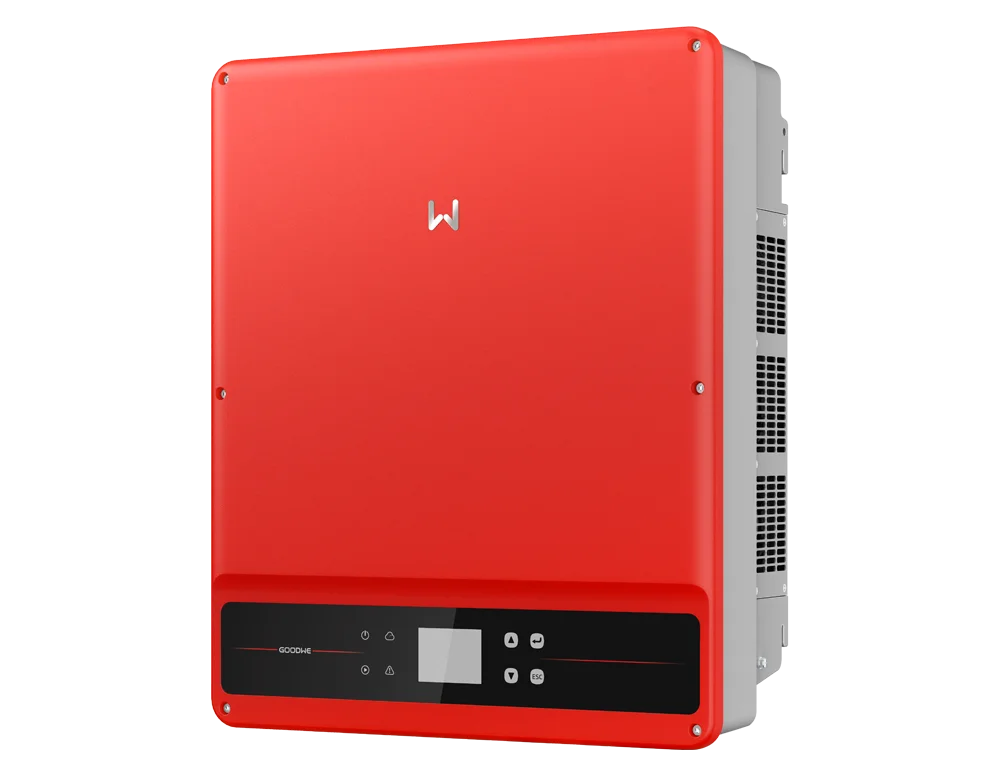

GoodWe's LVSMT Series three-phase inverter is designed with low-voltage power input and is an ideal choice for commercial installations.
Key Features
- Friendly & Thoughtful Design: 200V-650V wide input operating voltage range allows the solar system to start at an early stage, fully utilizing the daytime to maximize solar-powered energy generation and gain higher yield. The fuse-free design without consumable parts significantly reduces the operating time and costs.
- High Power Generation for High Return: With max. 15A DC input current per string, the LVSMT Series is compatible with different types of high-power modules, which ensures more solar power absorption, making it one of the most productive inverters on the market. With 130% DC oversizing, the system efficiency is enormously enhanced.
Technical Specifications
GW35KLS-MT
| Max. Input Voltage (V): | 800 |
|---|---|
| Max. Input Current per MPPT (A): | 30 |
| Number of MPP trackers/Number of Strings per MPPT: | 6/2 |
| Max. Efficiency : | 98.0% |
| Nominal Output Voltage (V) : | 220, 3L/N/PE or 3L/PE |
GW30KLS-MT
| Max. Input Voltage (V): | 800 |
|---|---|
| Max. Input Current per MPPT (A): | 30 |
| Number of MPP trackers/Number of Strings per MPPT: | 5/2 |
| Max. Efficiency : | 98.0% |
| Nominal Output Voltage (V) : | 220, 3L/N/PE or 3L/PE |
GW12KLV-MT
| Max. Input Voltage (V): | 800 |
|---|---|
| Max. Input Current per MPPT (A): | 30 |
| Number of MPP trackers/Number of Strings per MPPT: | 3/2 |
| Max. Efficiency : | 98.7% |
| Nominal Output Voltage (V) : | 220, 3L/N/PE or 3L/PE |
GW15KLV-MT
| Max. Input Voltage (V): | 800 |
|---|---|
| Max. Input Current per MPPT (A): | 30 |
| Number of MPP trackers/Number of Strings per MPPT: | 3/2 |
| Max. Efficiency : | 98.7% |
| Nominal Output Voltage (V) : | 220, 3L/N/PE or 3L/PE |
GW20KLV-MT
| Max. Input Voltage (V): | 800 |
|---|---|
| Max. Input Current per MPPT (A): | 30 |
| Number of MPP trackers/Number of Strings per MPPT: | 3/2 |
| Max. Efficiency : | 98.8% |
| Nominal Output Voltage (V) : | 220, 3L/N/PE or 3L/PE |
