Description

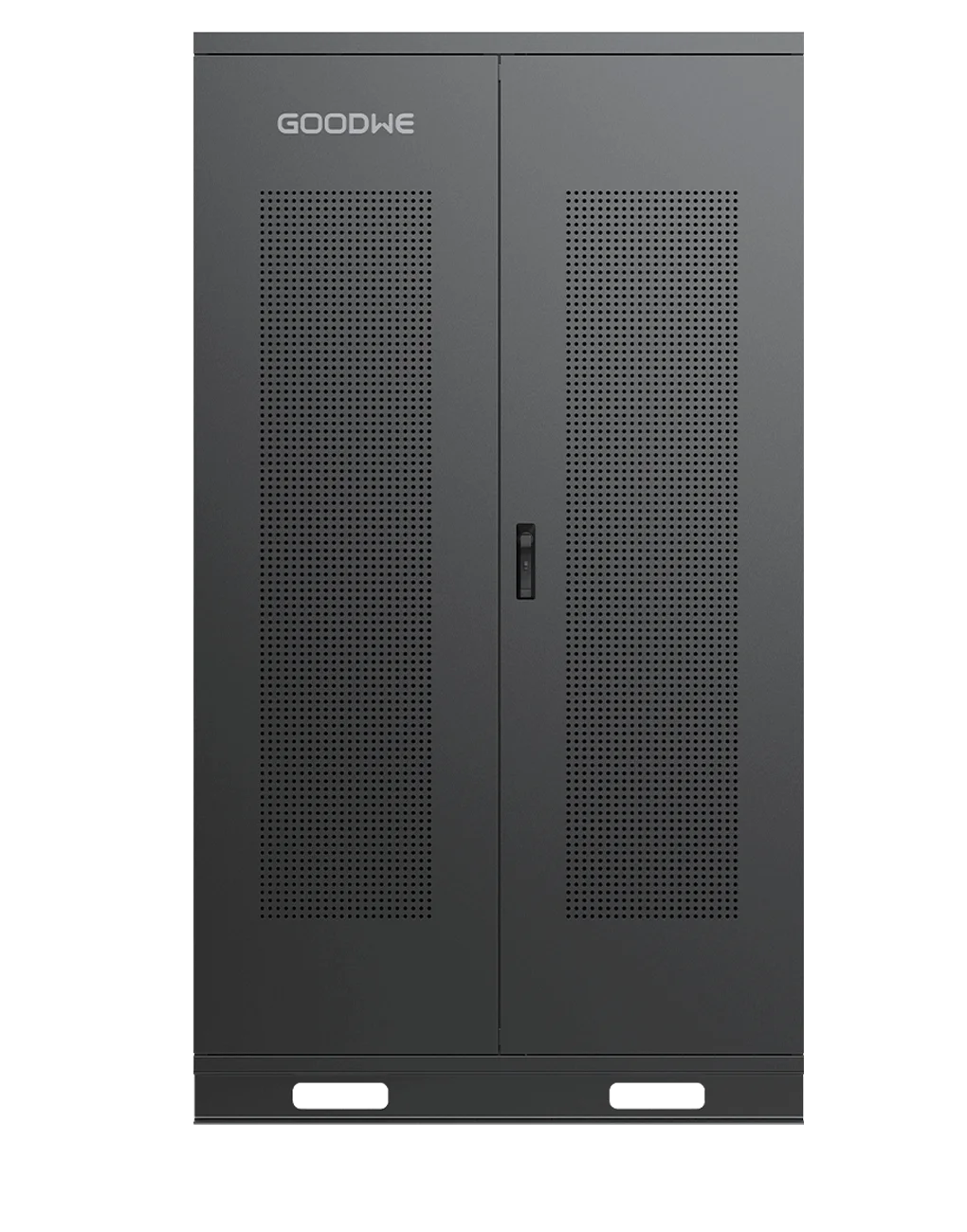

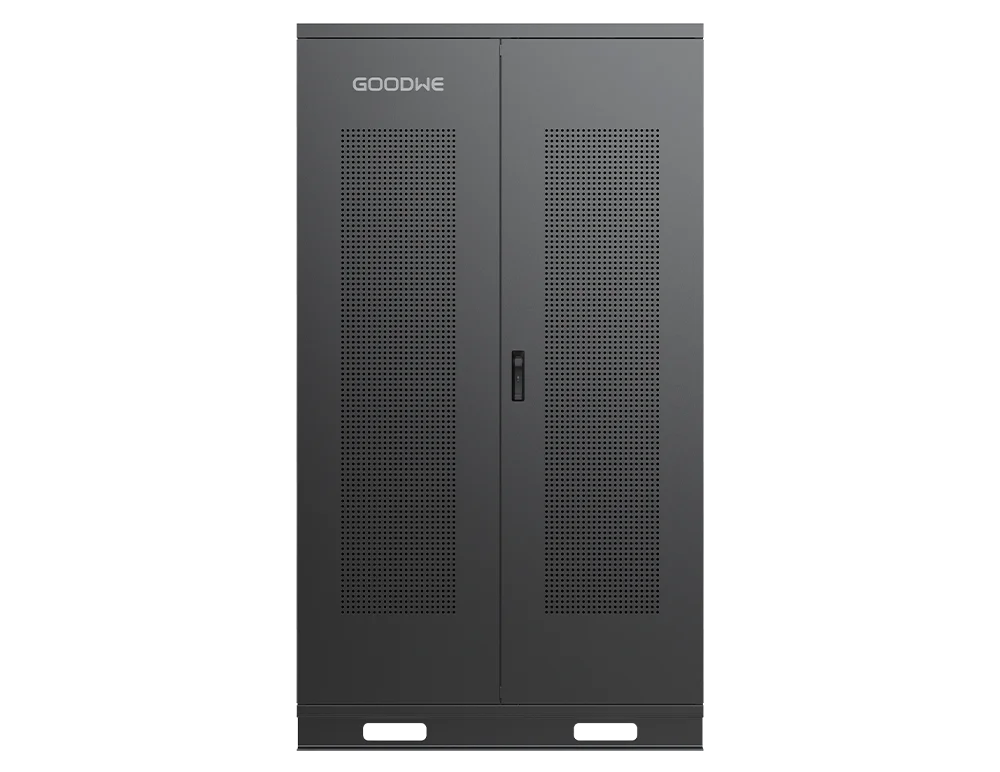

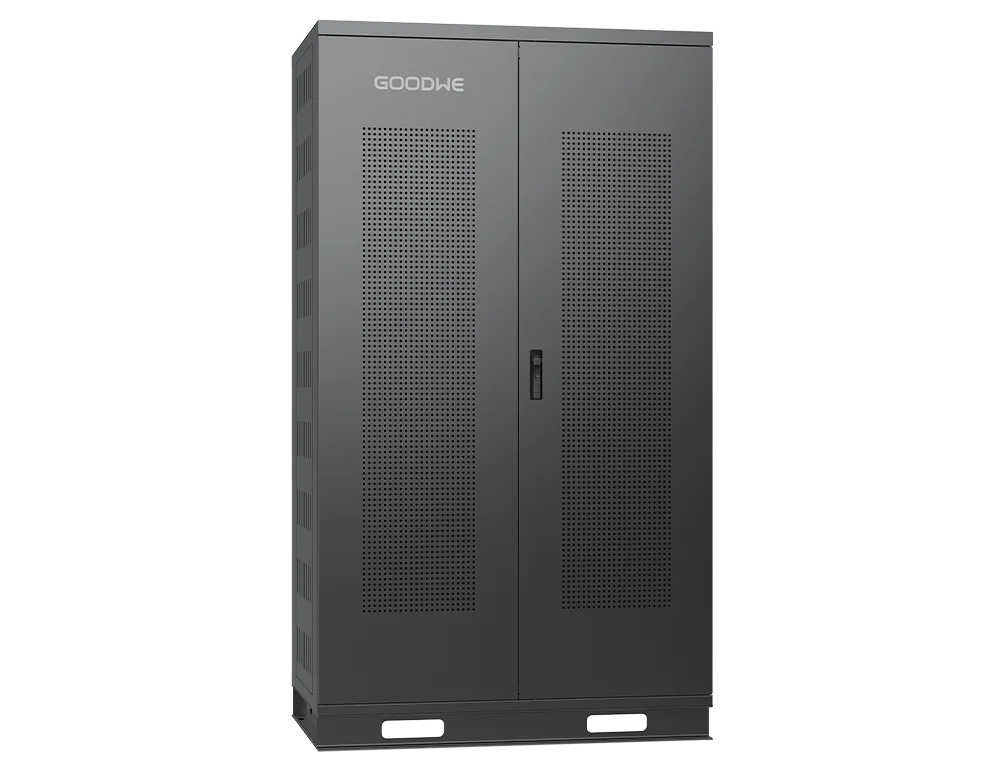

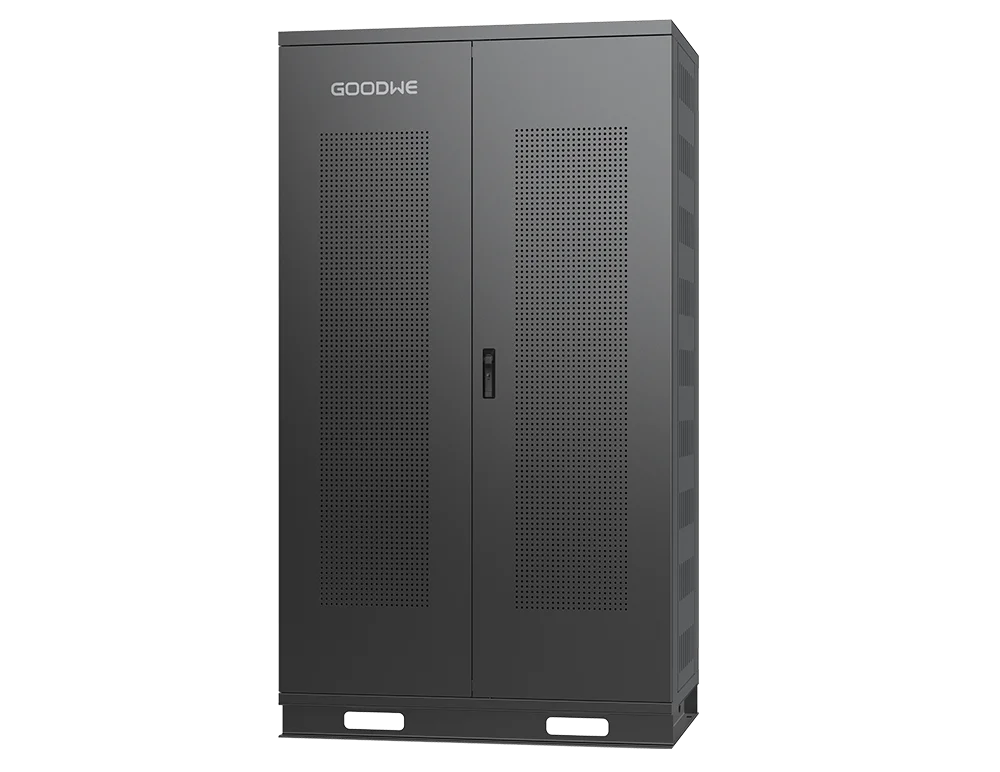

The GoodWe Lynx C Series is a high voltage battery rated 101 to 156kWh, designed for commercial and industrial solar energy storage environments today.
Key Features
- Smart Control for Smart Energy: Lynx C accommodates smart remote monitoring of the whole energy storage system and remote updates. When the battery is running at a low voltage, it automatically enters the low-power sleep mode, which reduces the standby power consumption and guarantees a longer standby time. Take smart control of your smart energy.
- Superb Safety & Reliability: The integrated black start capability ensures the solar plus storage system can continue to run at a certain level even if the rest of the electricity grid is out of service, resulting in system reliability and safety for various scenarios. Insulation resistance test is supported to prevent electrical shocks, ensuring the safety of personnel and reducing or eliminating downtime. Furthermore, the reliable lithium iron phosphate (LFP) battery cell
Technical Specifications
LX C156-10
| Usable Energy (kWh) | 156.67 |
|---|---|
| Nominal Voltage (V) | 652.8 |
| Nominal Charging / Discharging Current (A) | 100/100 |
| Installation Location | Ground-Mounted |
| Enclosure Type | IP21 |
LX C138-10
| Usable Energy (kWh) | 138.24 |
|---|---|
| Nominal Voltage (V) | 576.0 |
| Nominal Charging / Discharging Current (A) | 100/100 |
| Installation Location | Ground-Mounted |
| Enclosure Type | IP21 |
LX C120-10
| Usable Energy (kWh) | 119.81 |
|---|---|
| Nominal Voltage (V) | 499.2 |
| Nominal Charging / Discharging Current (A) | 100/100 |
| Installation Location | Ground-Mounted |
| Enclosure Type | IP21 |
LX C101-10
| Usable Energy (kWh) | 101.38 |
|---|---|
| Nominal Voltage (V) | 422.4 |
| Nominal Charging / Discharging Current (A) | 100/100 |
| Installation Location | Ground-Mounted |
| Enclosure Type | IP21 |
