Description

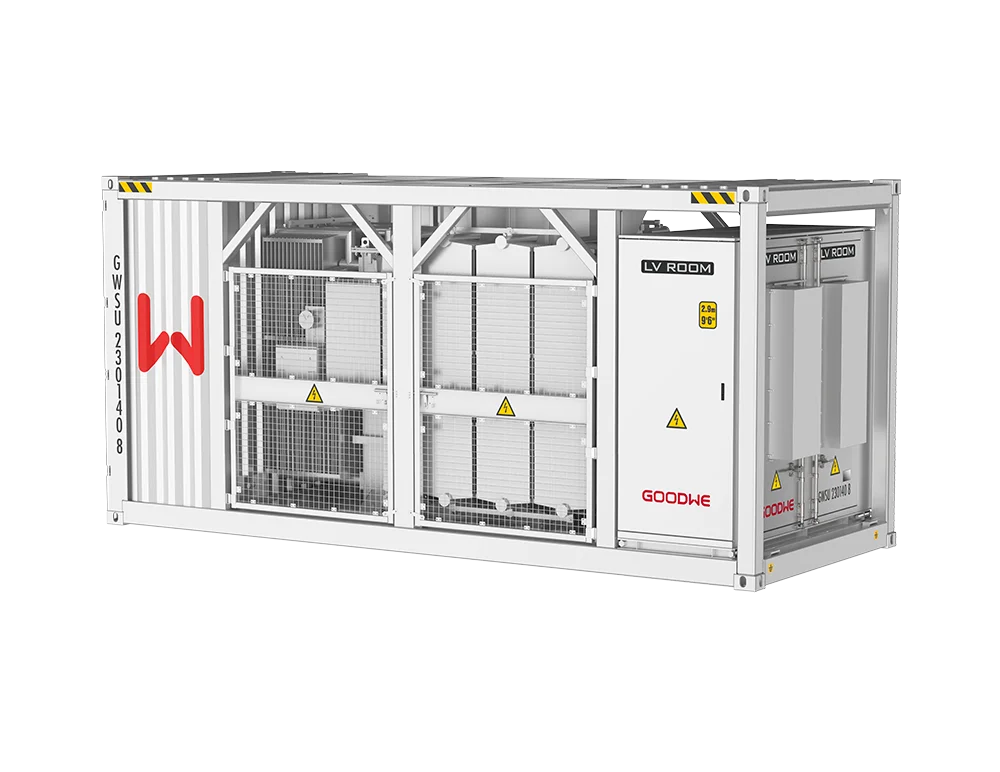

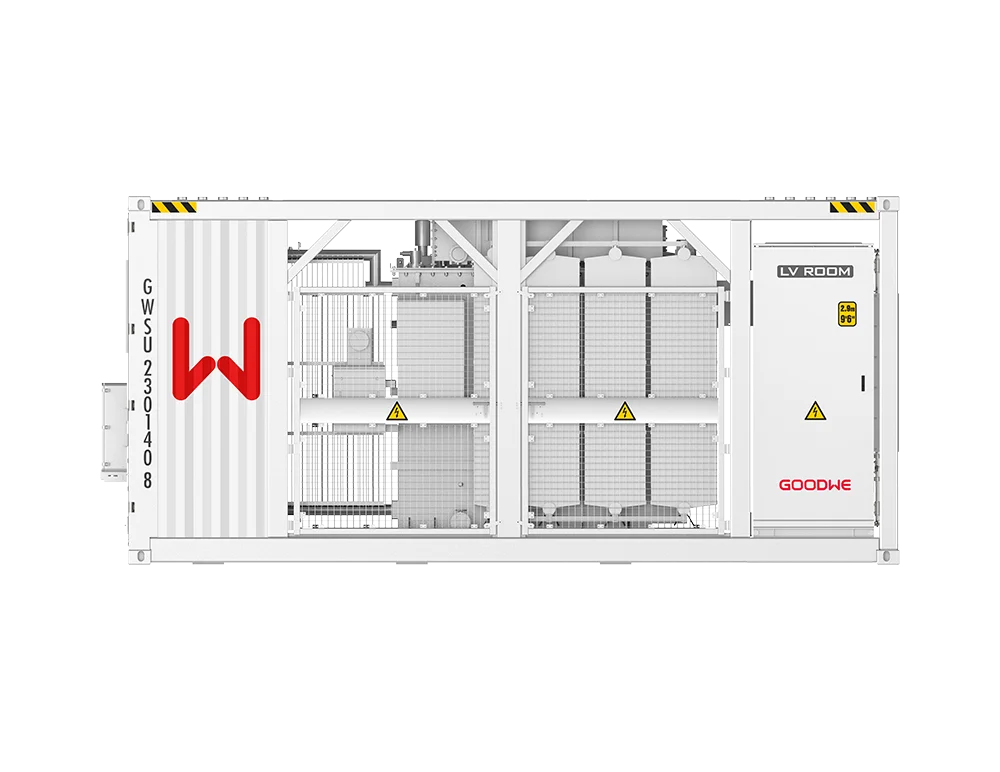

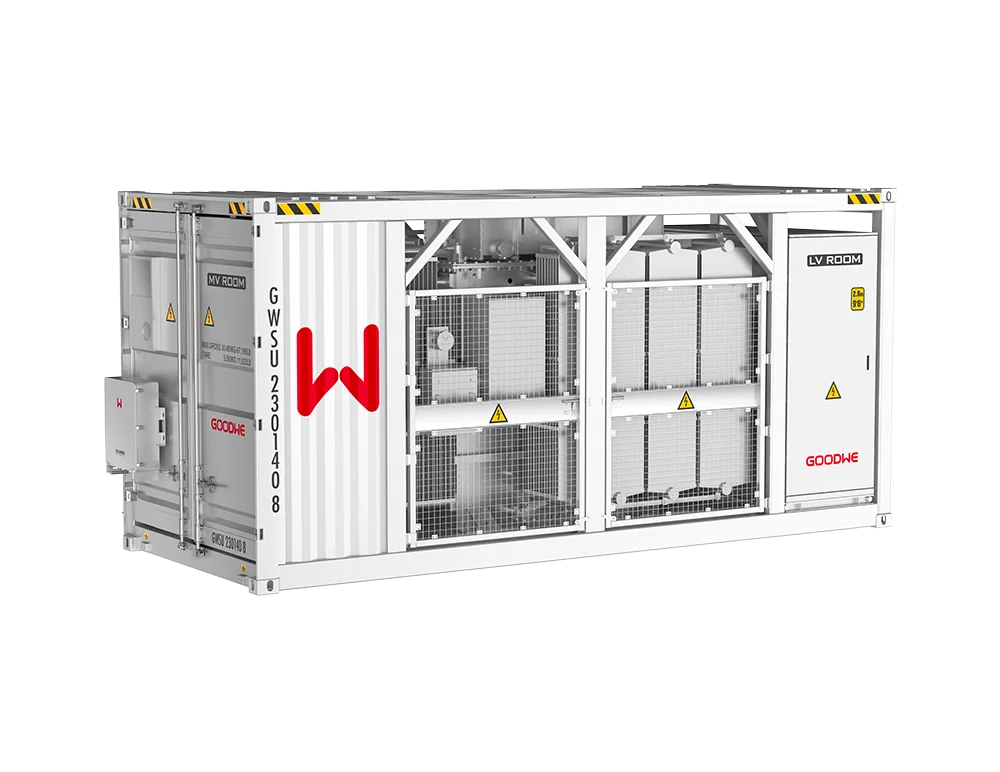

The GoodWe MV Station (9.152MVA) is a compact medium voltage step up power center engineered to endure diverse environmental site conditions worldwide.
Key Features
- High Reliability & Safety: GoodWe Medium-voltage Station is a fully type-tested assembly that ensures high reliability and safety. It is designed to withstand various types of environmental conditions.
- Easy Operation & Maintenance: With an integrated modular design, GoodWe Medium-voltage Station is a plug-and-play solution that guarantees maximum flexibility and improves ease of installation and maintenance.
Technical Specifications
GW9100K-MVS
| Dimensions (W × H × D mm) | 6058 × 2896 × 2438 |
|---|---|
| Approximate Weight (t) | <25 |
| Ingress Protection Rating | IP54 |
| Operating Temperature Range (°C) | -25 ~ +55 (＞ 40°C derating) |
| Max. Operating Altitude (m) | 1000 (Optional: 2000) |
