Description

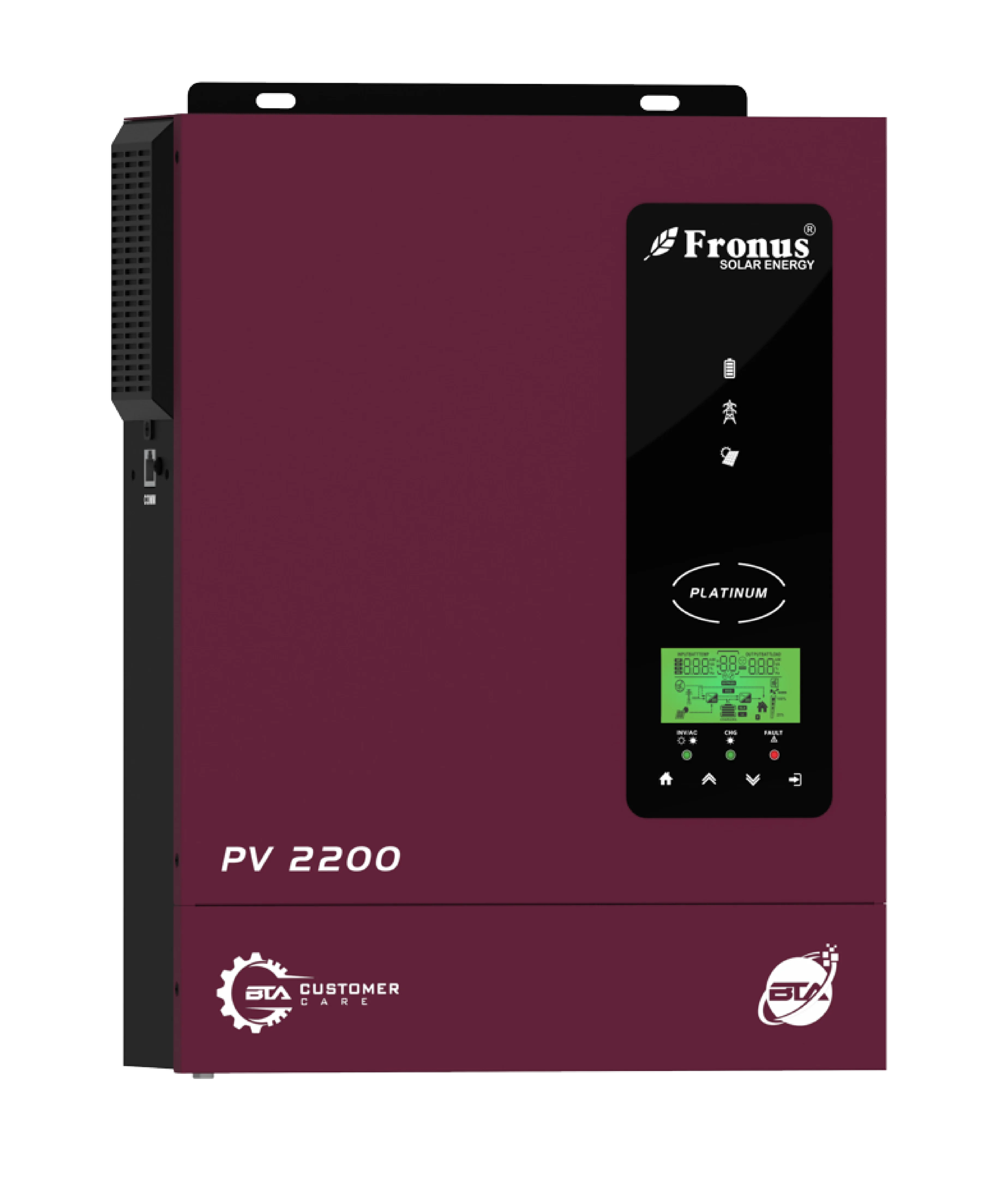

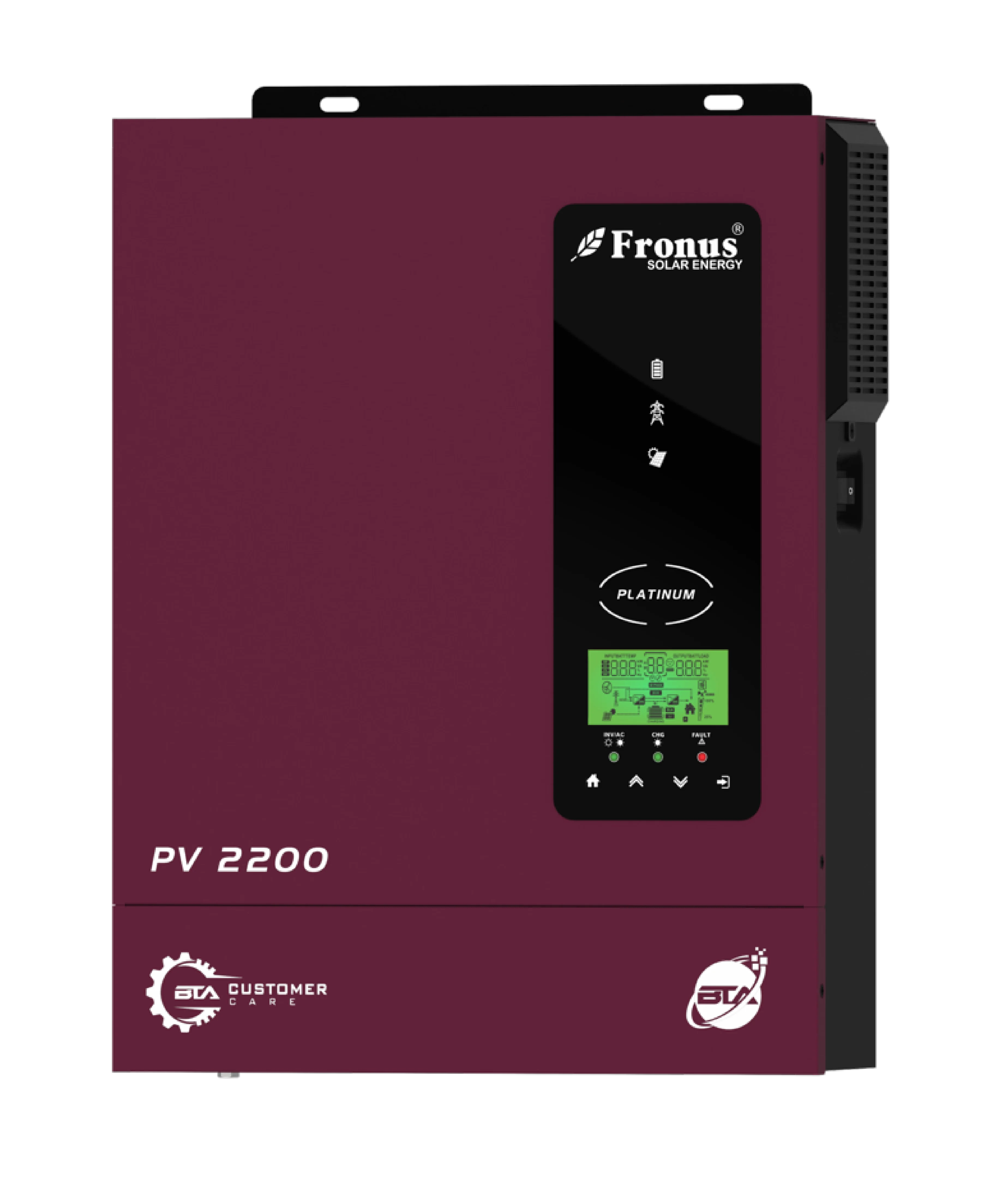

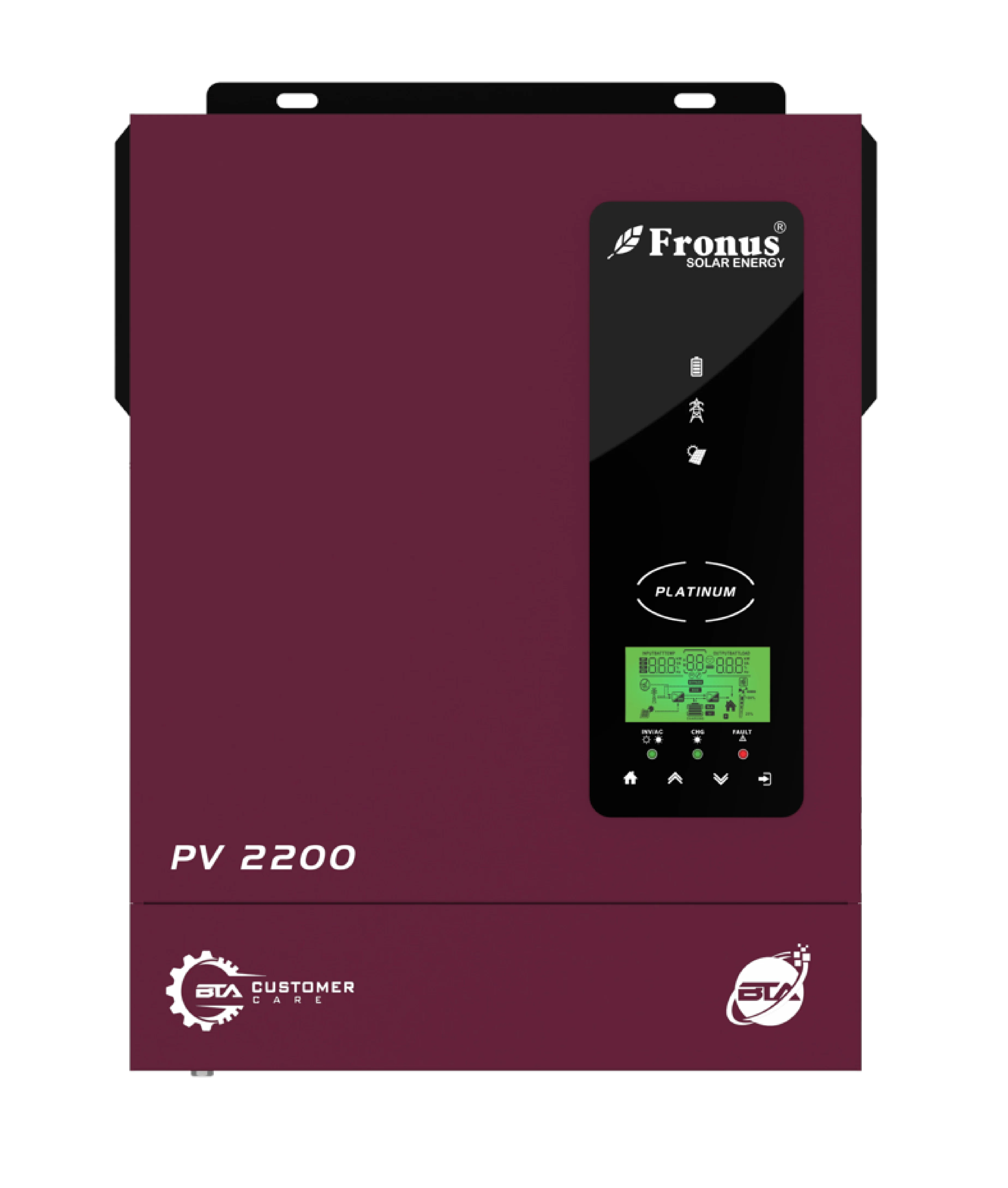

Platinum PV 2200 – 1.6kW Hybrid Inverter features efficient power management, an advanced MPPT chipset, WiFi control, anti-dust protection, 80A PV charging, Li-ion battery compatibility, and pure sine wave output.

Technical Specifications

Rated Output Power	2000VA/1600W
AC Input Voltage	230VAC
Selectable Voltage Range	170~280VAC(For Personal Computer) 90~280VAC(For Home Appliances)
Frequency Range	50/60 Hz (Auto Sensing)

AC Output

AC Voltage Regulation	230VAC+-5%
Surge Power	4000VA
Eciency(Peak) PV to INV	98%
Eciency(Peak) Battery to INV	94%
Transfer Time	10ms (For Personal Computers) 20ms (For Home Appliances)

Battery & AC Charger

Battery Voltage	12VDC
Floating Charge Voltage	13.5VDC
Overcharge Protection	16VDC
Maximum AC Charge Current	60A

Solar Charger

Maximum PV Array Power	2000W
MPPT Range at Operating Voltage	30 ~ 400VDC
Maximum PV Array Open Circut Voltage	400VDC
Maximum Charging Current	80A

Physical

Dimensions D × W × H(mm)	357×273×95

Weight

Net Weight (KG)	4.0

Interface

Communication Port	RS232/WIFI/GPRS

Operating Environment

Humidity	5% to 95% Relative Humidity (Non~Condensing)
Operating Temperature	-10 ~ 50C
