Description

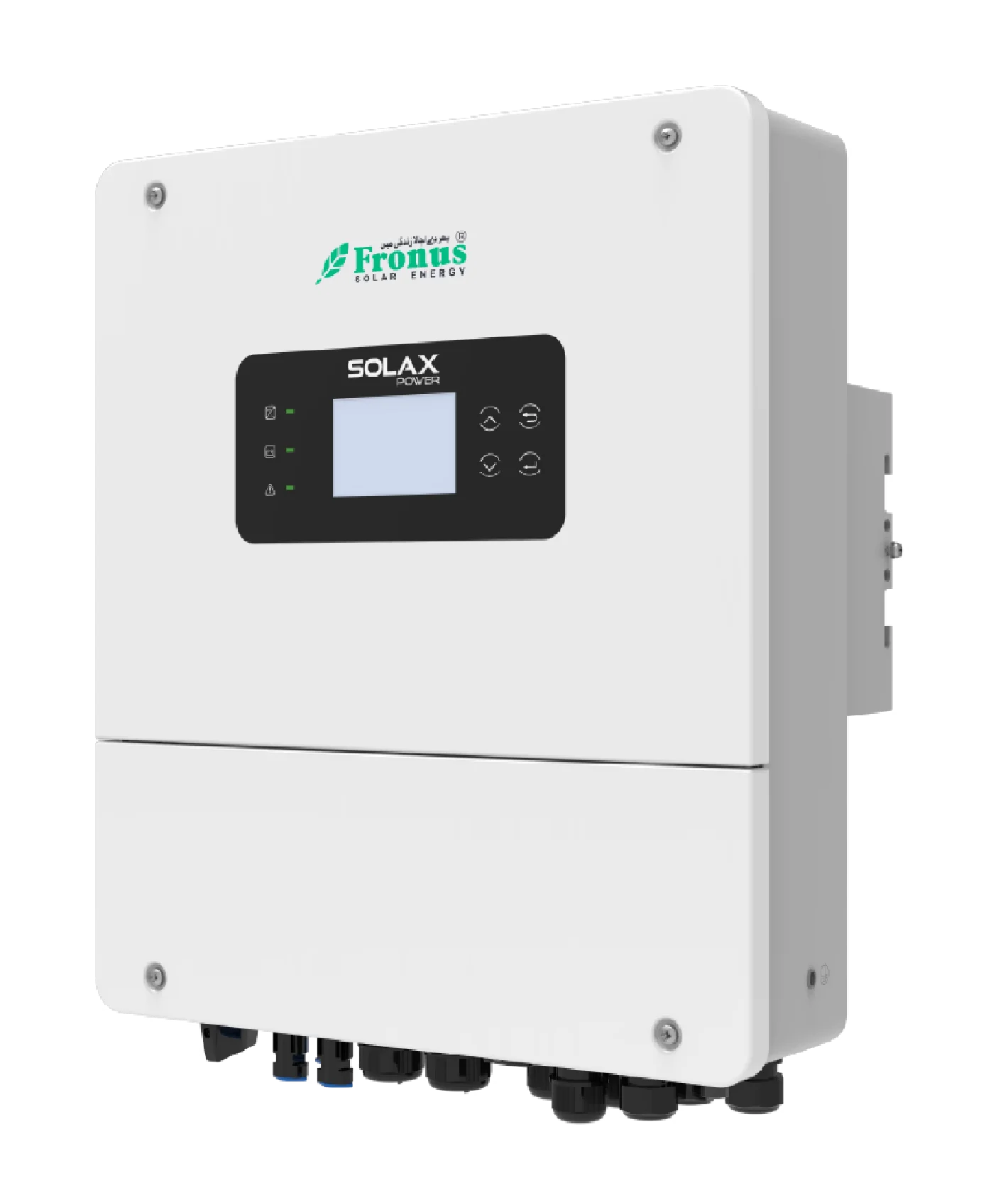

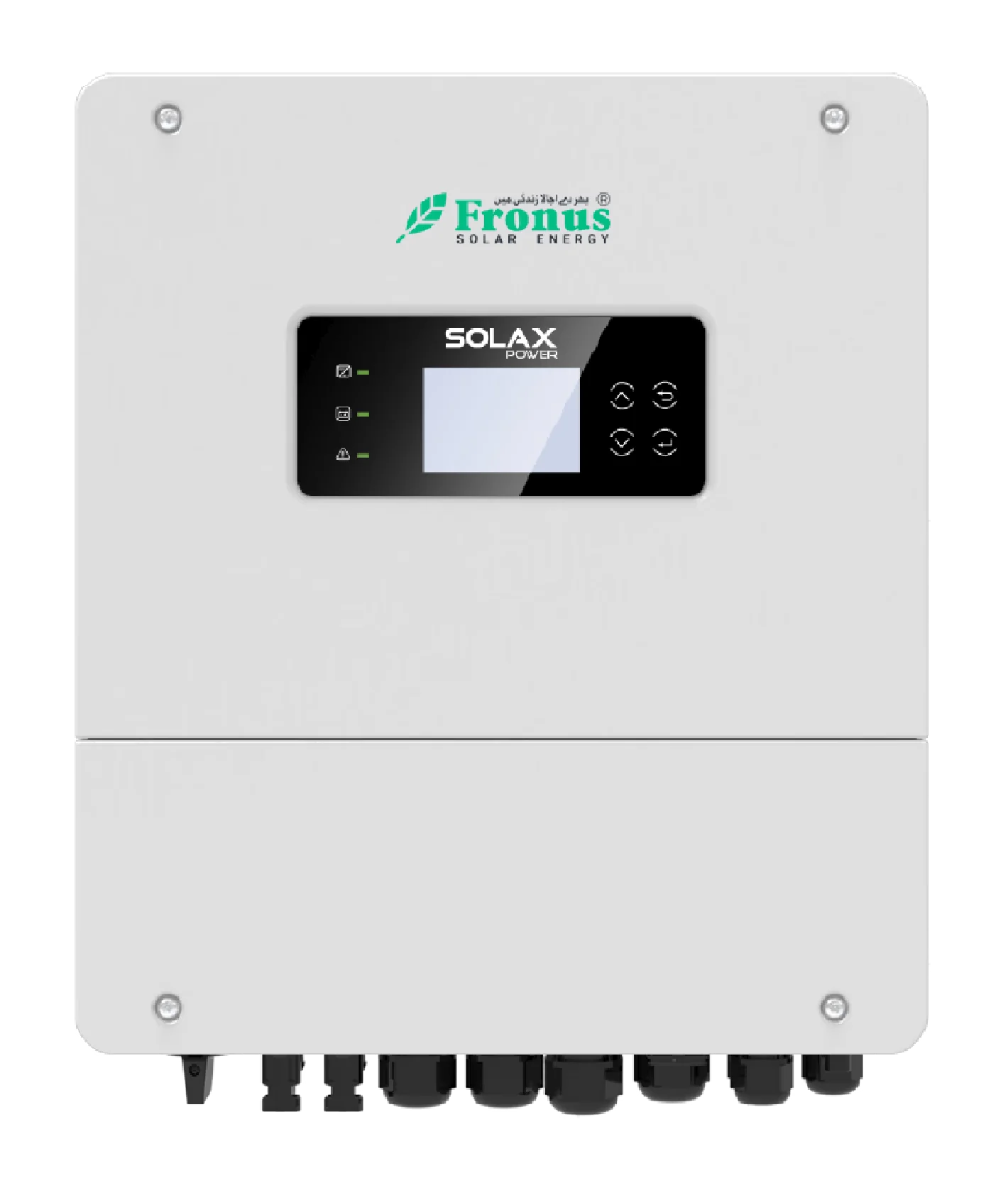

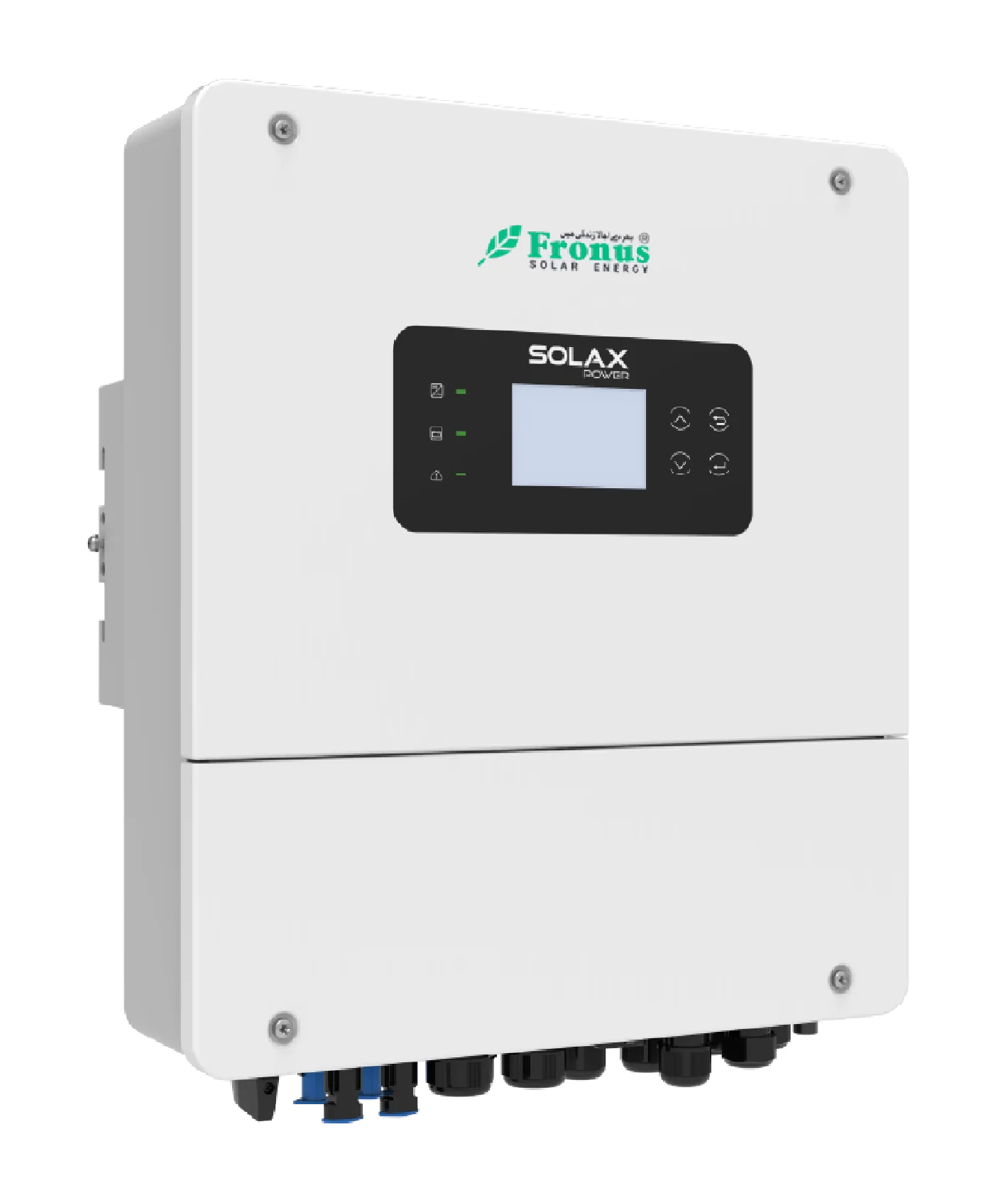

X1 Genki 6.0kW Inverter features efficient power management, an advanced MPPT chipset, WiFi control, anti-dust protection, 80A PV charging, Li-ion battery compatibility, and pure sine wave output.
Technical Specifications
DC Input
| Max. PV array power [Wp] |
12000 |
| Max. PV input power (PV1+PV2) [Wp] |
9000 |
| Max. PV input voltage [V] |
550 |
| Start output voltage [V] |
110 |
| Nominal input voltage [V] |
360 |
| MPPT voltage range [V] |
80 ~ 520 |
| No. of independent MPPT / strings per MPPT |
2 / 2 |
| Max. input current [A] |
16/16 |
| Max. short circuit current [A] |
20 |
Battery Data
| Battery type |
Lithium 3 / Lead-Acid |
| Max. charging / discharging current [A] |
120 |
| Battery voltage range [V] |
40 ~ 60 |
| Nominal battery voltage [V] |
48 |
Eps Output (with Battery)
| Nominal output apparent power [VA] |
6000 |
| Peak apparent power [VA, s] |
12000, 10 |
| Nominal output current [A] |
26.1 |
| Nominal voltage [V], frequency [Hz] |
230, 50 / 60 |
| Switch time [ms] |
< 4 |
SYSTEM DATA
| MPPT Efficiency [%] |
> 99.9 |
| Max. efficiency |
97.6 |
| Euro. efficiency [%] |
97.0 |
ENVIRONMENT LIMIT
| Degree of protection |
IP65 |
| Operating temperature range [°C] |
-25 ~ +60 (derating above +45) |
| Relative humidity [%] |
4 ~ 100% |
| Max. operation altitude [m] |
< 3000 |
| Storage temperature [°C] |
-25 ~ +70 |
| Noise emission(typical) [dB] |
< 45 |
General
| Dimensions (WxHxD) [mm] |
397 X 490 X 201 |
| Net weight [kg] |
17.3 |
| Cooling concept |
Smart Cooling |
| Topology |
Transformerless for PV side / HF for battery side |
| HMI Interface |
LED + LCD |
| Communication interfaces |
CAN, RS485, CT, Meter, USB, NTC, WiFi, LAN, 4G
(Optional), WiFi+Lan (Optional), WiFi+4GM (Optional) |
Standard
| Safety |
EN IEC 62109-1 /-2 |
