Description

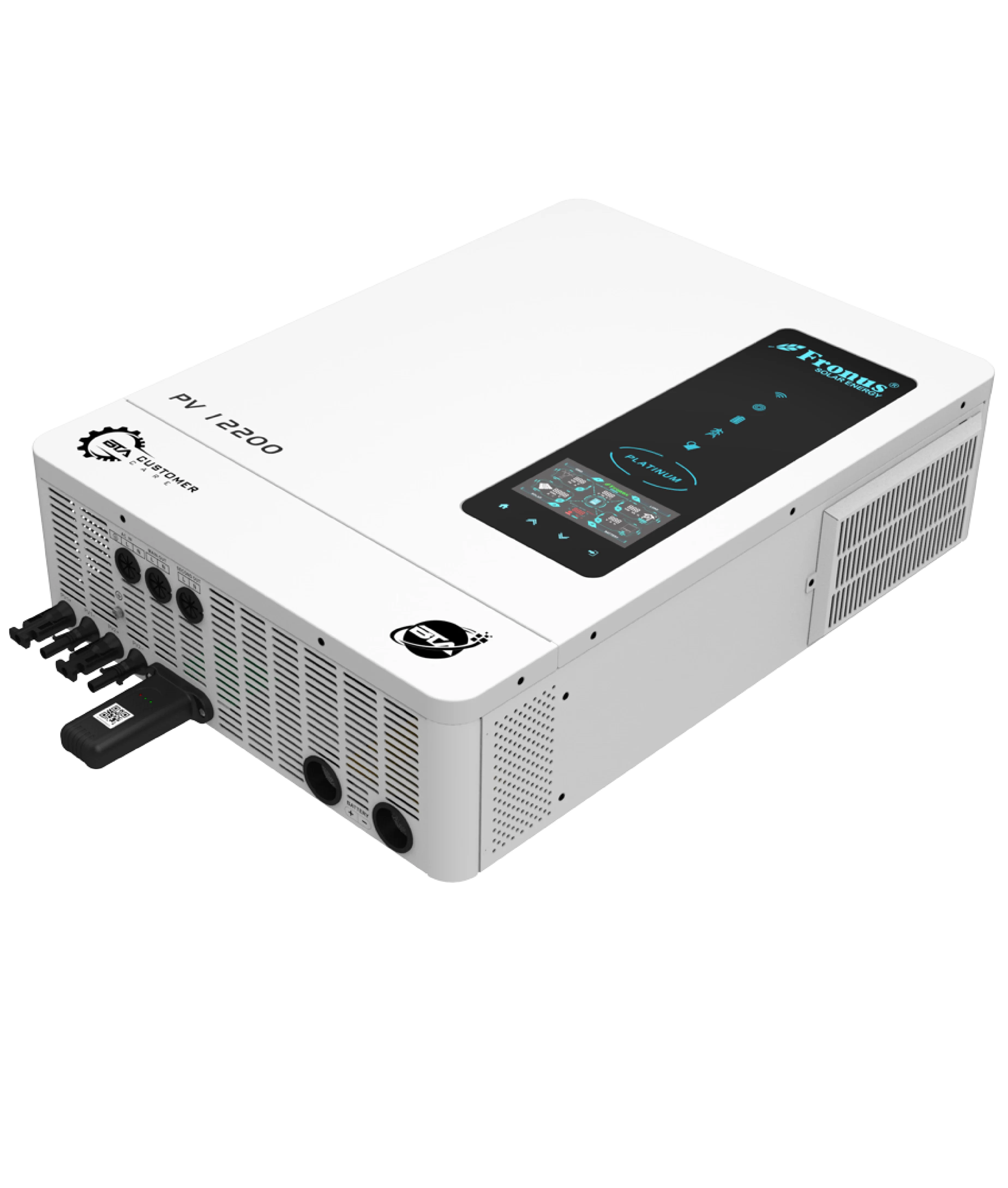

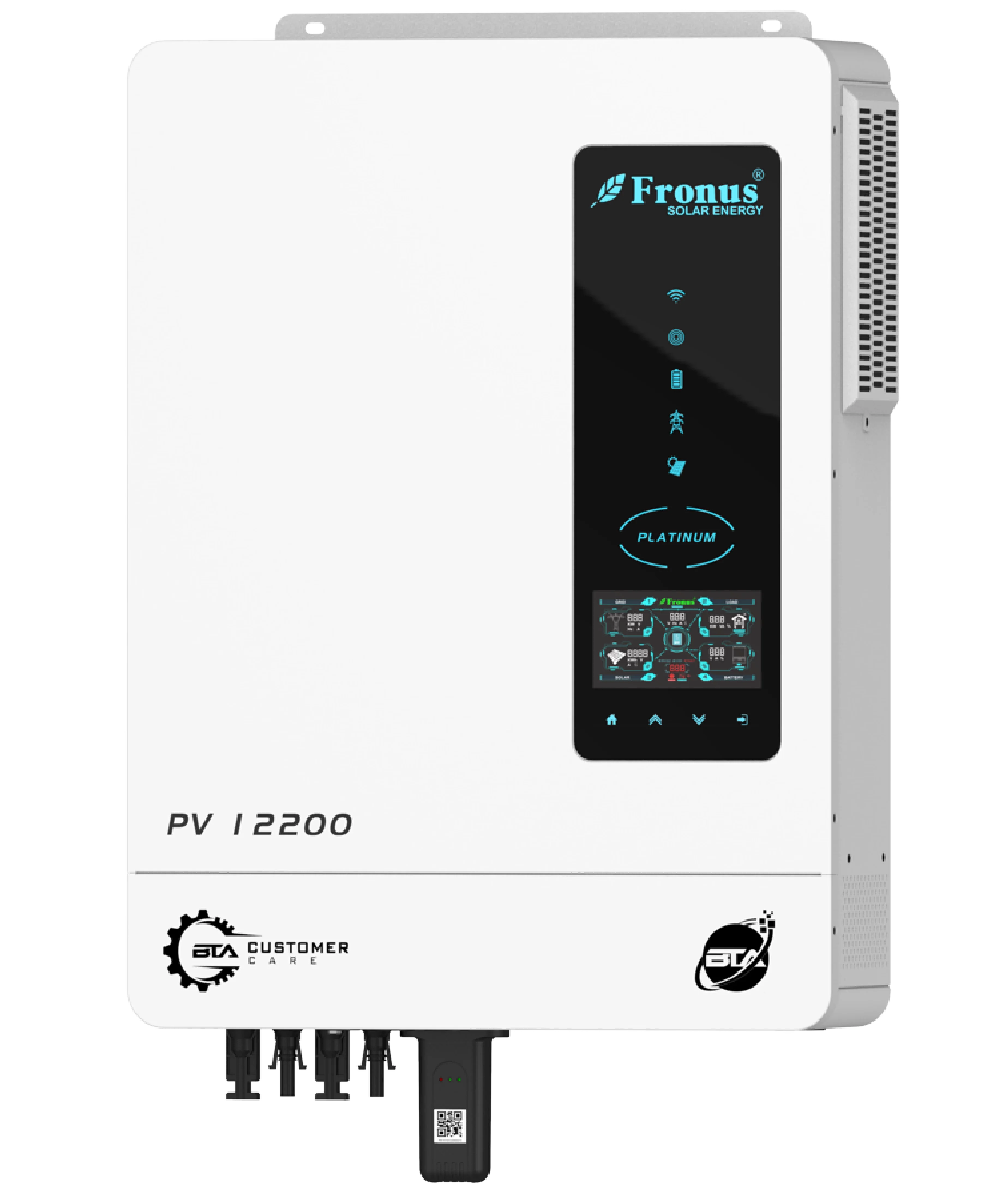

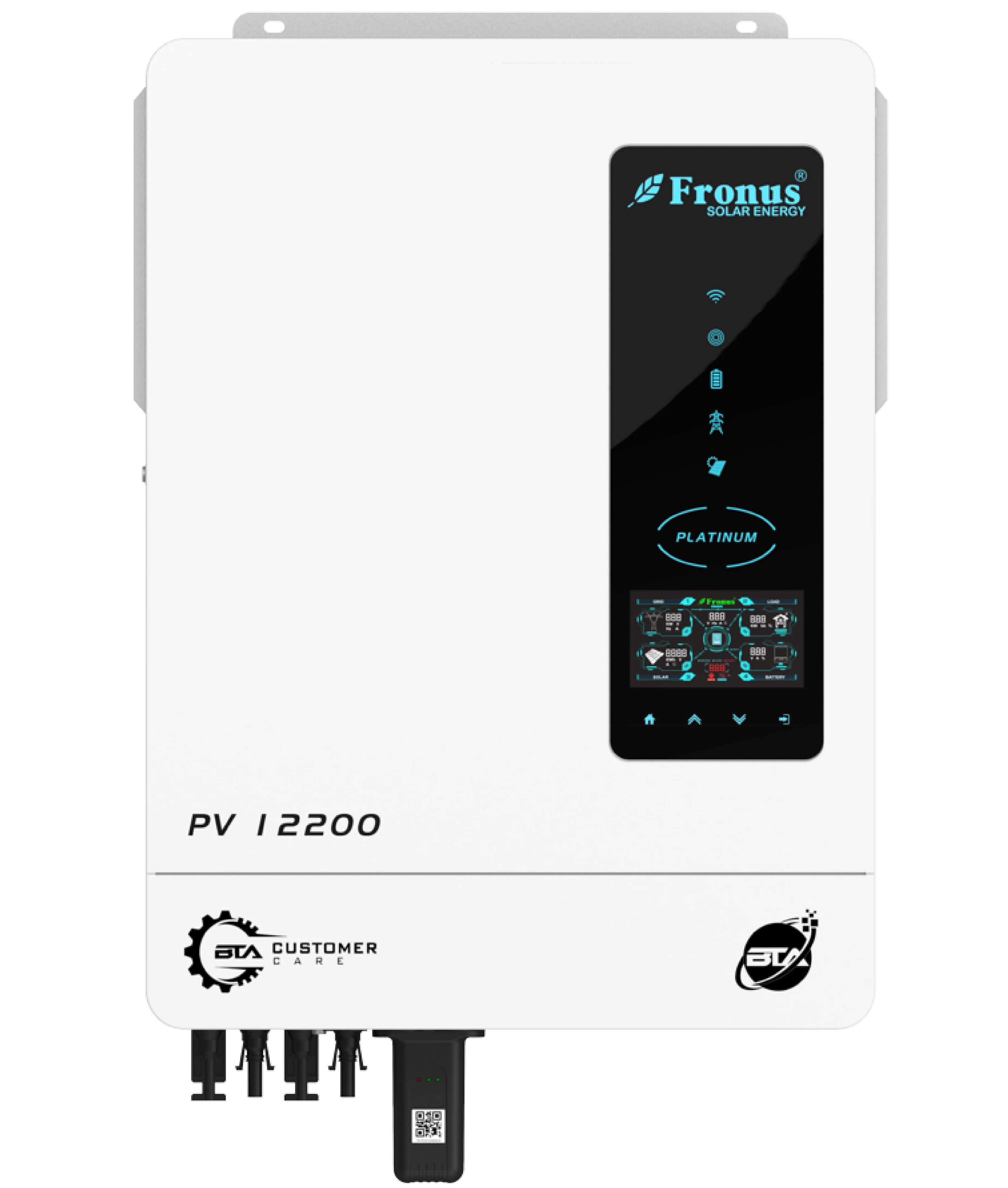

Platinum PV 12200 – 10kW Hybrid Inverter features efficient power management, an advanced MPPT chipset, WiFi control, anti-dust protection, 80A PV charging, Li-ion battery compatibility, and pure sine wave output.

Technical Specifications

Phase	1-Phase
Maximum PV Input Power	6000W x2
Rated Output Power	12000VA
Maximum Solar Charging Current	160 Amp

Grid-Tie Operation

Maximum DC Voltage	500VDC
Nominal DC Voltage	360VDC
Initial Feeding Voltage	120VDC
Start-up Voltage	90VDC
MPPT Voltage Range	90VDC ~ 450VDC
Number of MPPT Trackers	2
Maximum Input Current	18 Amp

Grid Output (AC)

Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195 ~ 253VAC
Nominal Output Current	44.3 Amp
Power Factor	>0.99
Feed-in Grid Frequency Range	49-51 +-1Hz

Efficieny

Maximum Conversion Efficiency (DC/AC)	98%

Two Load Output Power

Full Load	10200W
Maximum Main Load	10200W
Maximum Second Load Upto(Battery Mode)	3400W
Main Load Cutt Off Voltage	44VDC
Main Load Return Voltage	52VDC

AC Input

AC Start-up Voltage	120-140VAC
Auto Restart Voltage	180VAC
Acceptable input Voltage Range	90-280VAC or 170-280VAC
Maximum AC Input Current	50A
Nominal Operating Frequency	50/60Hz
Surge Power	20400W

PV Input (DC)

Maximum DC Voltage	500VDC
MPPT Voltage Range	90VDC – 480VDC
Number of MPPT Trackers	2
Maximum Input Current	18 Amp

Battery Mode Output (AC)

Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure Sine Wave
Efficiency (DC to AC)	94%

Battery & Charger

Nominal DC Voltage	48 VDC
Maximum Solar Charging Current	160 A
Maximum AC Charging Current	140 A
Total Current	200 Amp

Physical

Dimensions D × W × H(mm)	420×310×110
Cartoon Dimensions D × W × H(mm)	618×463×201

Weight

Net Weight (kg)	14.2
Gross Weight (kg)	16.0

Interface

Communication Port	RS232/WIFI/Remove LCD/GPRS

Environment

Operating Temperature	-10~50C
