Description

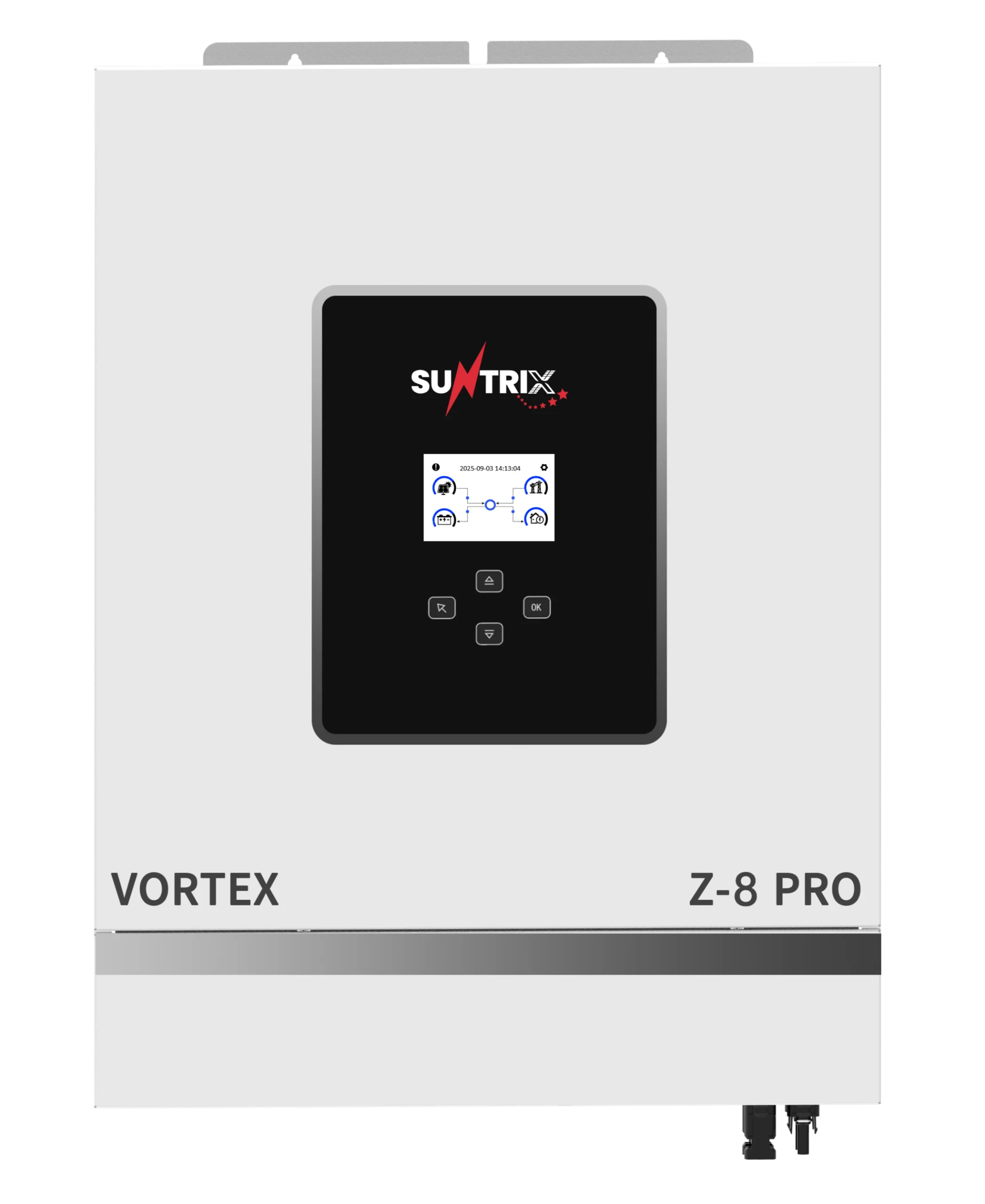

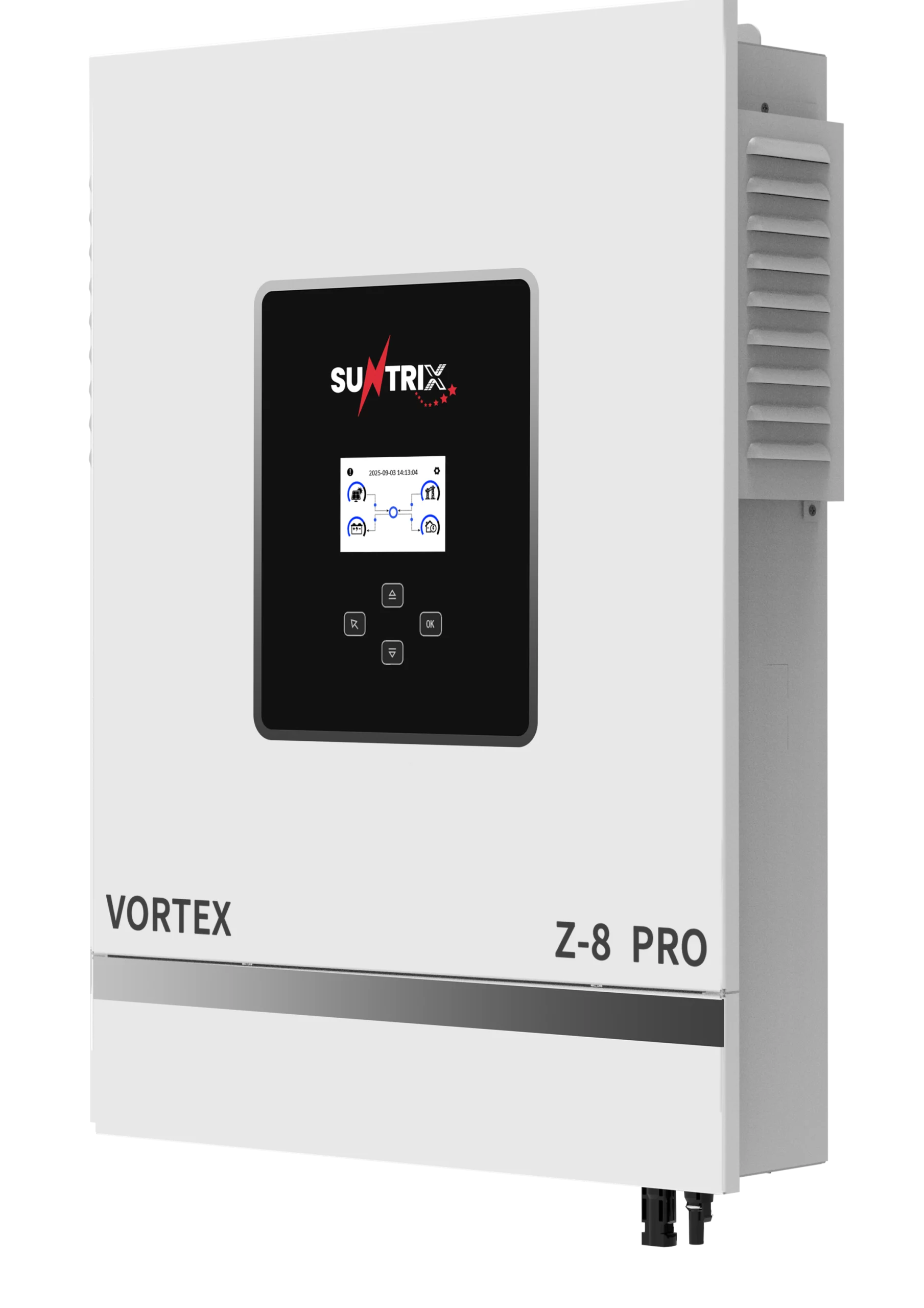

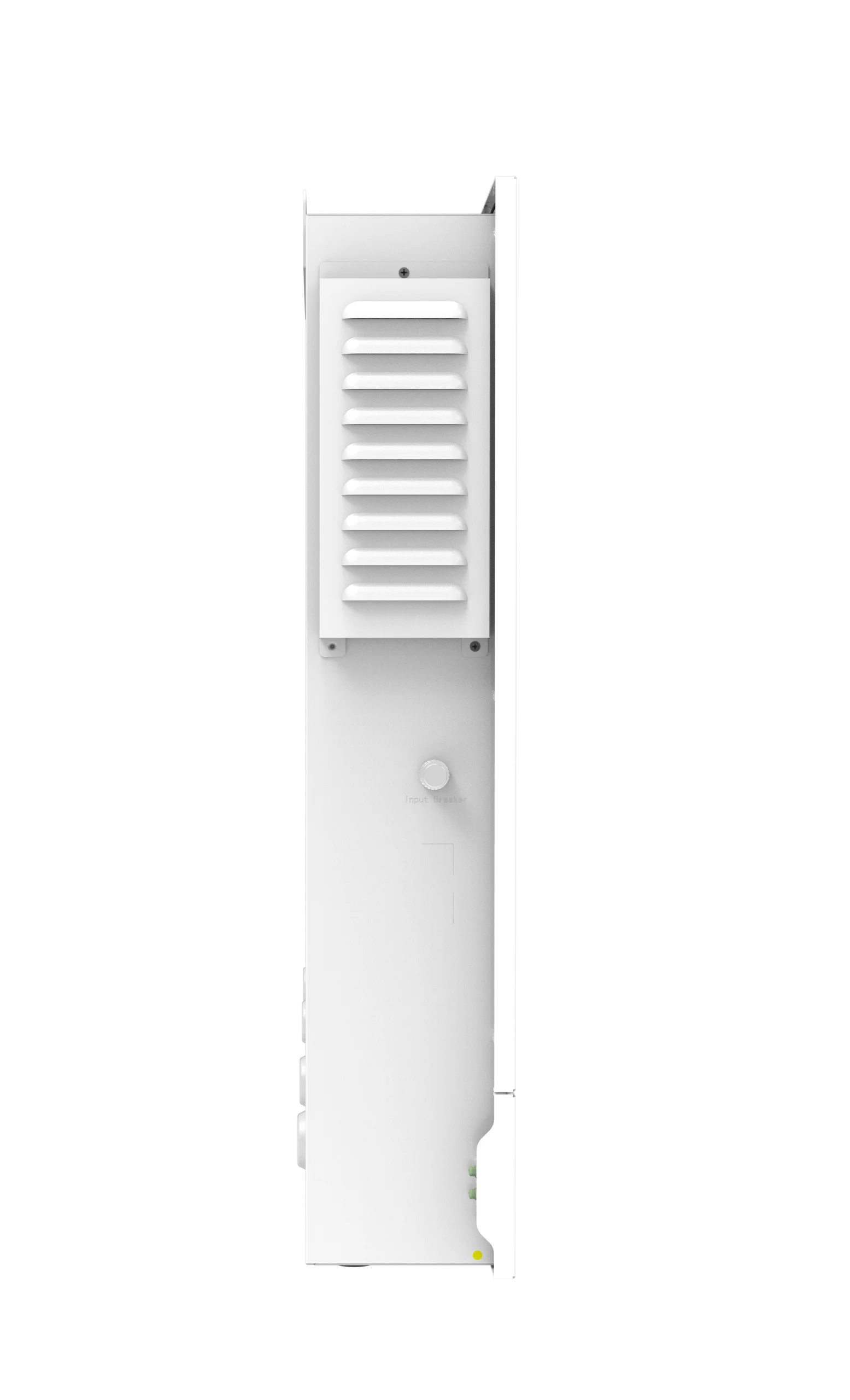

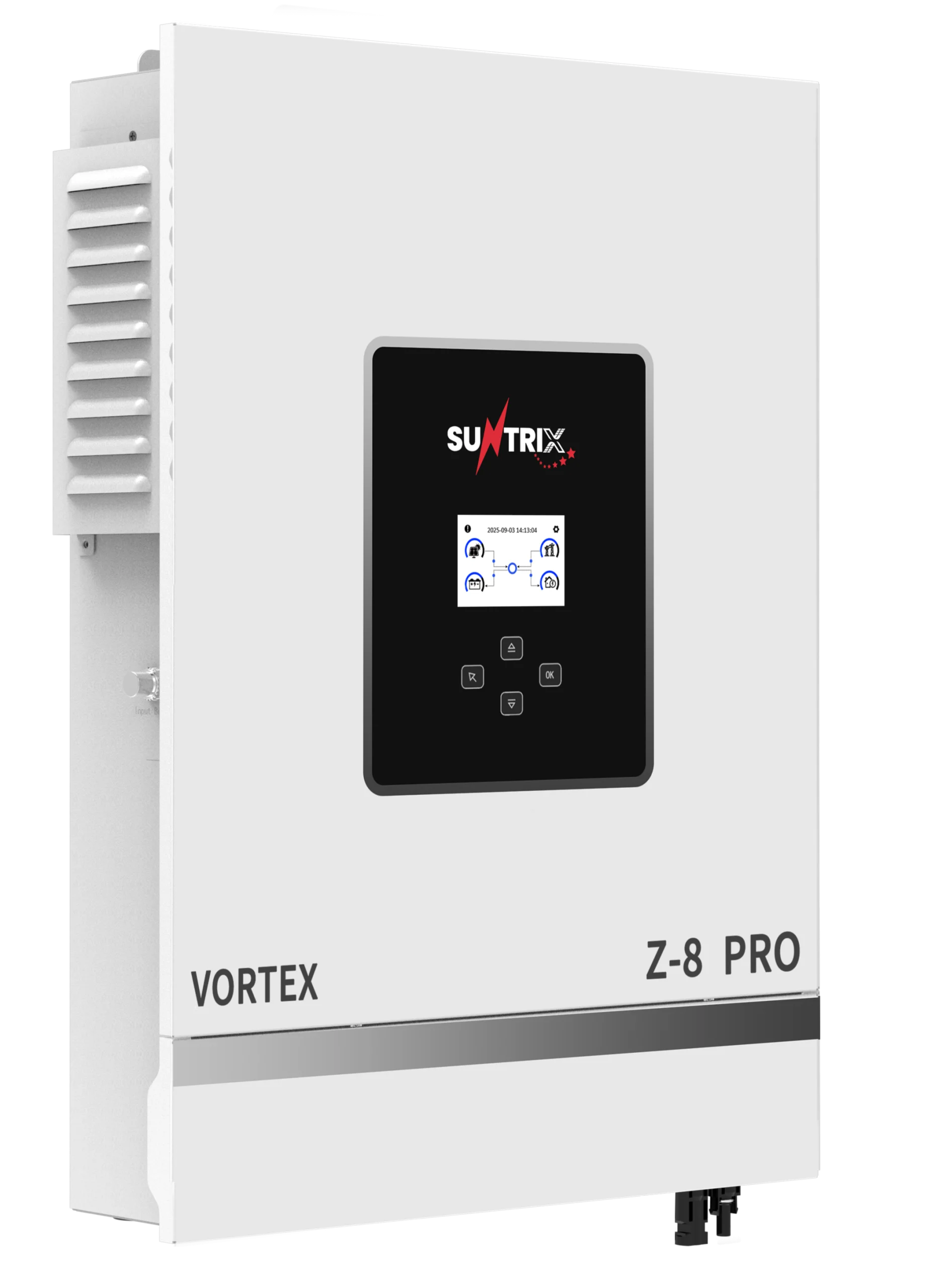

The Suntrix Vortex Z-8 PRO is an 8kW solar inverter built for medium-sized homes, shops, and small commercial loads in Pakistan. With dual MPPT trackers, an IP54 weatherproof enclosure, and 15,000W (2 × 7500W) max PV input, the Z-8 PRO captures more solar energy from larger or split-roof arrays while delivering a clean 8000VA / 8000W pure sine wave output.
Featuring built-in Wi-Fi for remote monitoring via the SmartValue App, smart load management with dual AC output, 48V lithium/lead-acid battery support with up to 160A charging current, and parallel scalability up to 6 units (48kW total), the Vortex Z-8 PRO is engineered for serious solar performance. The 10ms UPS-grade switch time, 98% peak efficiency, 60–450V wide MPPT range, and full suite of safety protections make it the smart upgrade for net-metering, backup, and off-grid systems. Backed by Suntrix's 5-year warranty (3 years parts + 2 years service).
- High level protection: IP54
- Screen Operation: LCD Color
- Dual AC Output Design: Smart Load Management
- Remote Monitoring with SmartValue APP: Built-in Wi-Fi
- Starting generator (Optional): Support dry contact
- The maximum current of single string module is 27A: MPPT Current
- Parallel Connections up to 6 Units: Parallel Connection
- Voltage Range: 60–450V: MPPT Range
Technical Specifications
| Rated Power | 8000W/8000VA |
|---|---|
| Model Name | VORTEX Z-8 PRO |
| Max. PV Input Voltage(V) | 500 |
|---|---|
| Max. Current per MPPT(A) | 27/27 |
| MPPT Voltage Range(V) | 60-450 |
| Number of MPPT Trackers | 2 |
| Max. PV Input Power(W) | 2×7500 |
| Output Voltage Waveform | Pure Sine Wave |
|---|---|
| Rated voltage | 220/230/240VAC |
| Rated AC Output Power(W) | 8000 |
| Rated Frequency | 50/60Hz |
| Switch Time(ms) | 10mS (@UPS) |
| Rated Output Current(A) | 34.8 |
| Max Efficiency | 98% |
| Peak Output Power, Time | 60S@102%-125% Load: 10S@ 125% |
| Rated voltage | 220/230/240V |
|---|---|
| Voltage range(V) | 170-280VAC±3V (UPS mode) |
| Rated Frequency | 50/60Hz |
| Input Type | L+N+PE |
| Max. Charging Current(A) | 160 |
|---|---|
| Float Charging Voltage(V) | 54 |
| Battery Voltage(V) | 48 |
| Battery Type | Lithium, Lead-acid |
| Integrated | Over Current Protection / Over and under Voltage Protection / Output Short Circuit Protection / Over-temperature protection / Over and under Frequency Protection / Surge Protection |
|---|
| Operating Temperature Range | -10°C to 60°C |
|---|---|

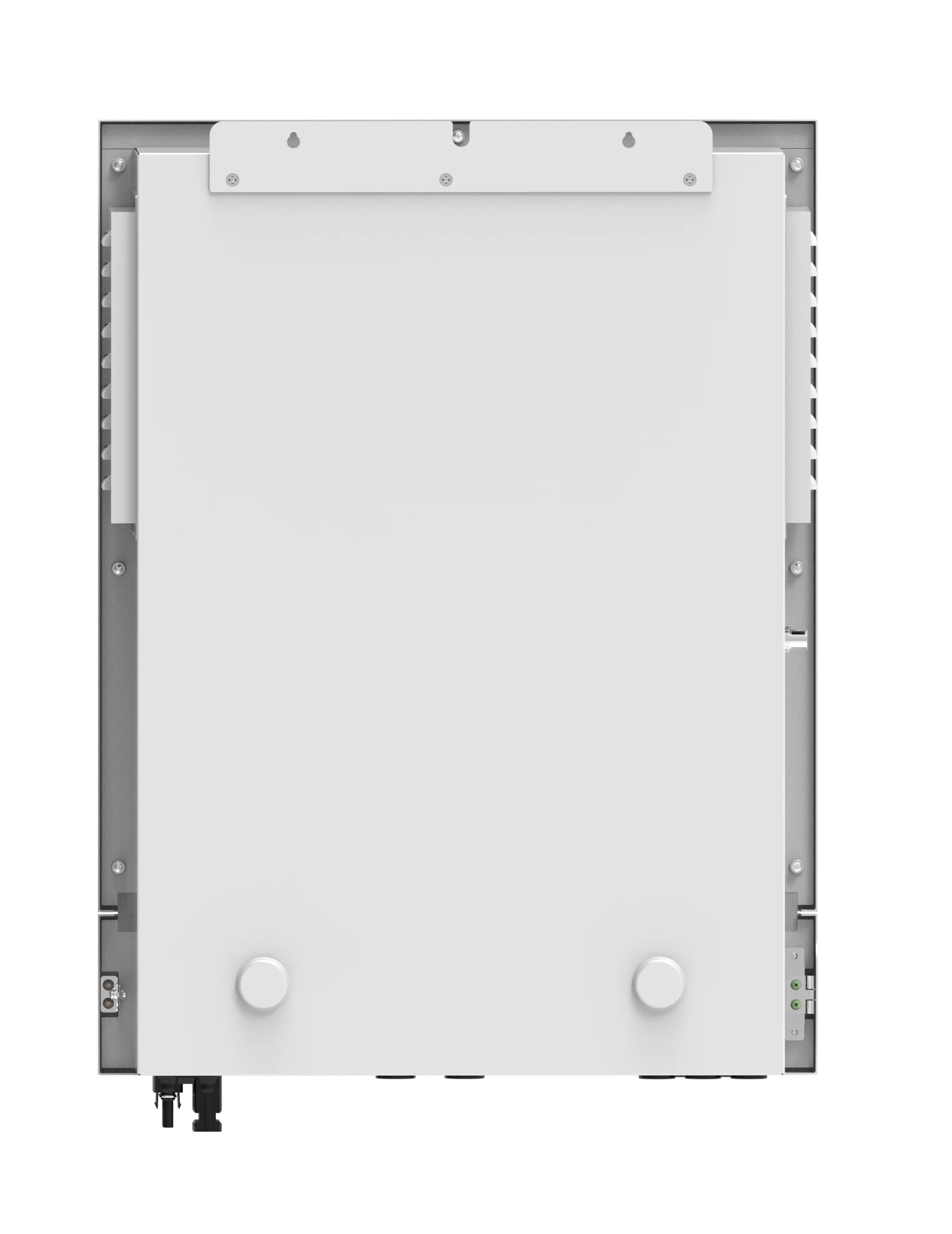

| Installation method | Wall-mounted |
| Max. Operating Altitude(m) | Derating over 1000m, Max 4000m, Refer to IEC62040 |
| Weight(kg) | 20 |
| Protection Degree | IP54 |
| Dimension(W×H×D,mm) | 550 X 410 X 130 |
| Number of parallel | 6 |
| Relative Humidity | 5% – 95% (Non-condensing) |
| Standard | IEC61683, IEC61000, IEC 62109-1/2 |
| Display | LCD |
| Communication | RS232, Wi-Fi, RS485 |
