Description

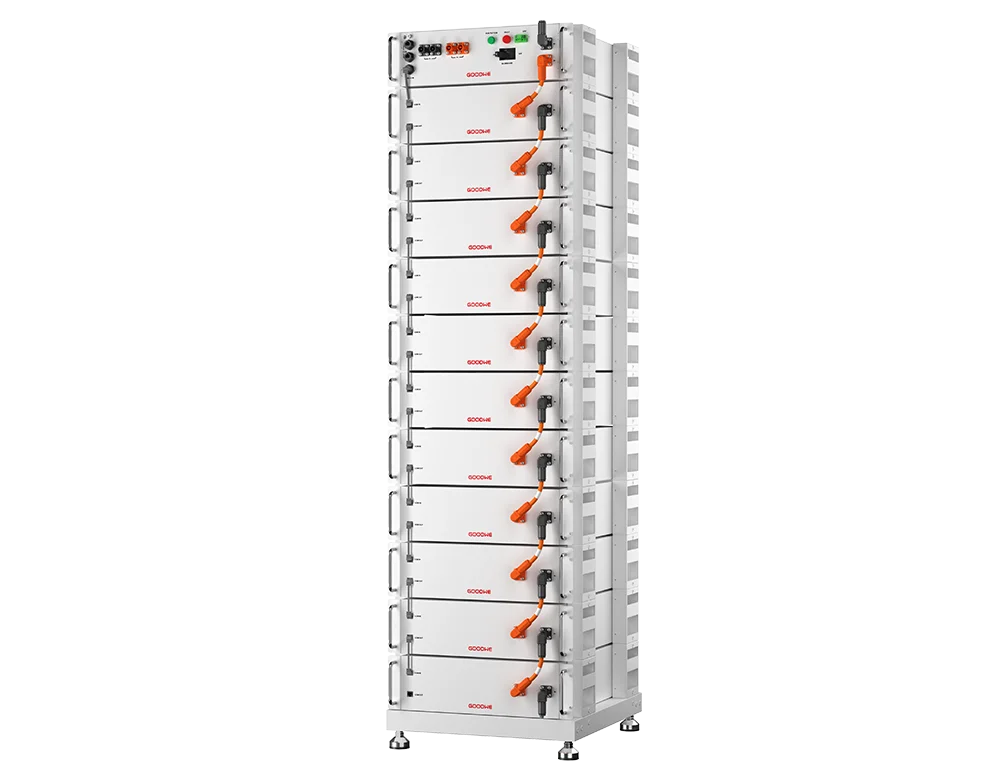

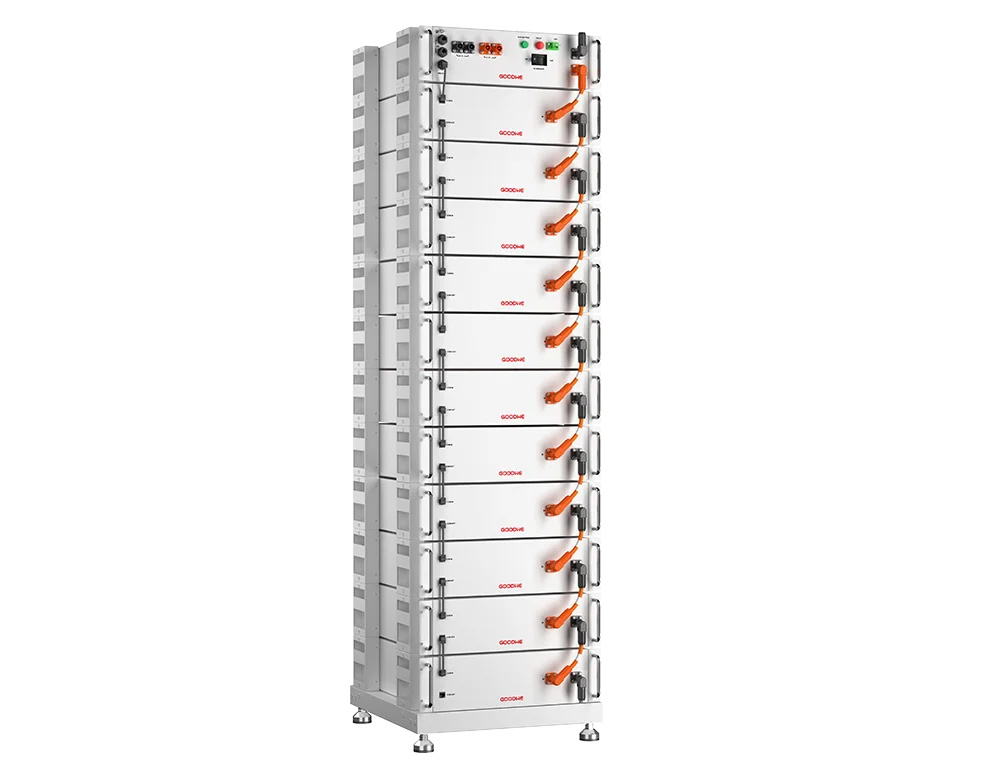

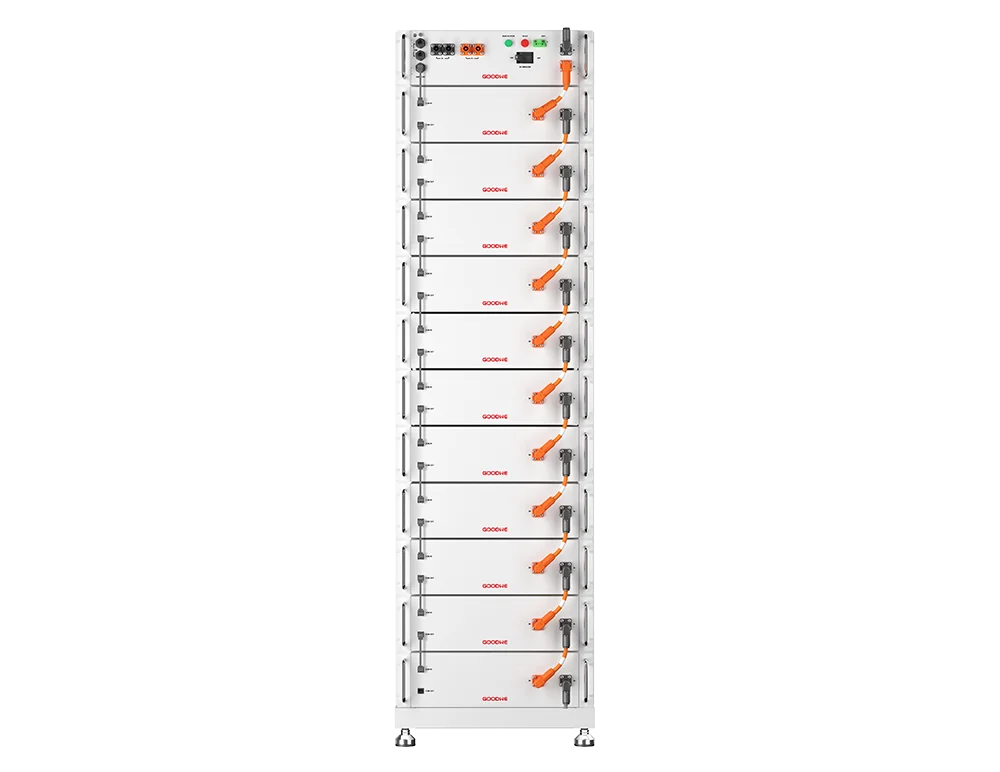

The GoodWe BAT-S Series is a high voltage rack mounted battery rated 25.6 to 56.3kWh, built with safe and durable LFP cell chemistry for modern homes.

Key Features

• Superb Safety & Reliability: The GoodWe BAT-S battery ensures safety and reliability with its advanced LFP (Lithium Iron Phosphate) technology, offering exceptional cycle stability for long-lasting performance. For added protection, it features an optional aerosol-based fire suppression system at the pack level, providing an extra layer of security to prevent fire risks and enhance overall safety.
• Smart Control & Monitoring: The modular design ensures hassle-free transportation and installation, while its expandable capacity supports up to 6 units of battery racks in parallel, reaching an impressive 337.8kWh for maximum energy storage flexibility.

Technical Specifications

GW25.6-BAT-I-G10

Usable Energy (kWh)	25
Nominal Voltage (V)	256
Max. Charge / Disharge Current (A)	100 / 110
Fire Safety Equipment	Aerosol, Pack Level
Ingress Protection Rating	IP20

GW30.7-BAT-I-G10

Usable Energy (kWh)	30
Nominal Voltage (V)	307.2
Max. Charge / Disharge Current (A)	100 / 110
Fire Safety Equipment	Aerosol, Pack Level
Ingress Protection Rating	IP20

GW35.8-BAT-I-G10

Usable Energy (kWh)	35
Nominal Voltage (V)	358.4
Max. Charge / Disharge Current (A)	100 / 110
Fire Safety Equipment	Aerosol, Pack Level
Ingress Protection Rating	IP20

GW40.9-BAT-I-G10

Usable Energy (kWh)	40
Nominal Voltage (V)	409.6
Max. Charge / Disharge Current (A)	100 / 110
Fire Safety Equipment	Aerosol, Pack Level
Ingress Protection Rating	IP20

GW46.0-BAT-I-G10

Usable Energy (kWh)	45
Nominal Voltage (V)	460.8
Max. Charge / Disharge Current (A)	100 / 110
Fire Safety Equipment	Aerosol, Pack Level
Ingress Protection Rating	IP20

GW51.2-BAT-I-G10

Usable Energy (kWh)	50
Nominal Voltage (V)	512
Max. Charge / Disharge Current (A)	100 / 110
Fire Safety Equipment	Aerosol, Pack Level
Ingress Protection Rating	IP20

GW56.3-BAT-I-G10

Usable Energy (kWh)	55
Nominal Voltage (V)	563.2
Max. Charge / Disharge Current (A)	100 / 110
Fire Safety Equipment	Aerosol, Pack Level
Ingress Protection Rating	IP20
