Description

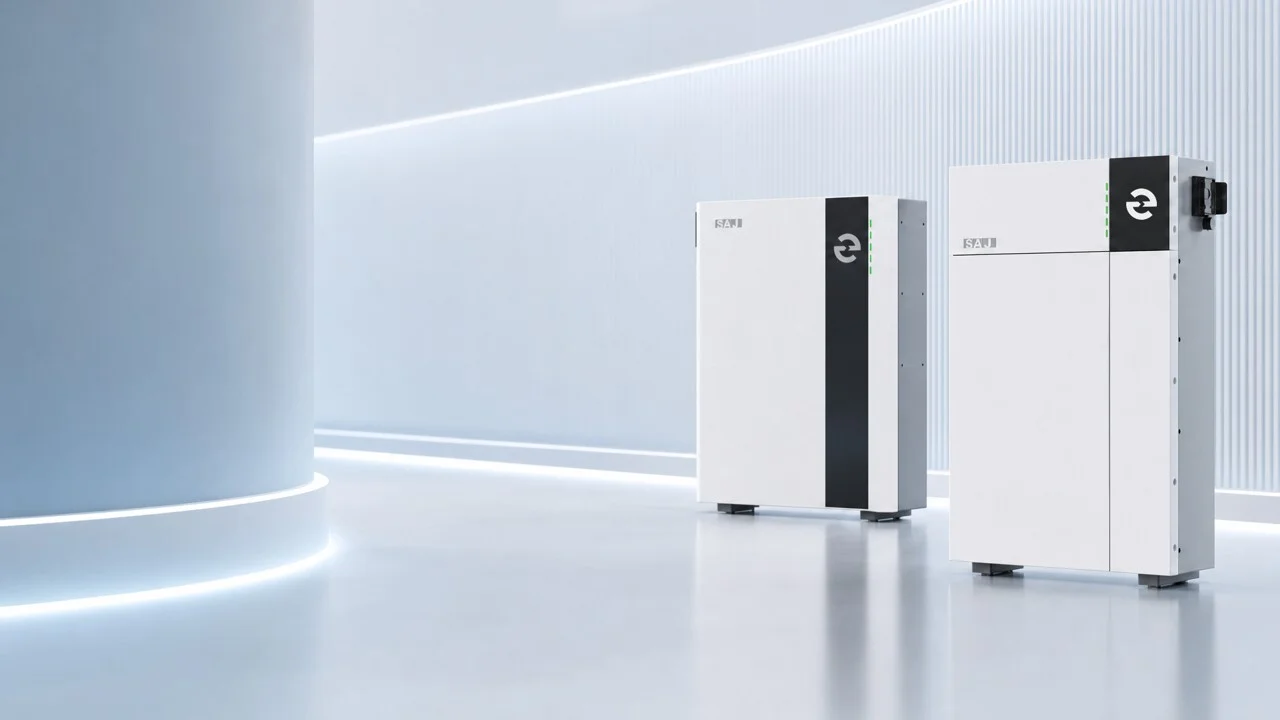

TP-LD55 48V 5.12kW 100AH Lithium Battery, featuring modular design, remote OTA upgrades, and long-lasting LiFePO4 technology for reliable energy storage.
Technical Specifications
| Battery Type | LiFePO 4 |
|---|---|
| Battery Component | 1P16S |
| Nominal Voltage | 51.2 V |
| Operating Voltage Range | 42.4 ~ 57.6 V |
| Rated Capacity | 102 ~ 106 Ah |
| Nominal Energy | 5.12 kWh |
| Recommended Current | 100 A |
| Max. Current | Charge: 100 A, Discharge: 135 A |
| Peak Current | 200 A (10s, Upto 35°C) |
| Cycle Life | >8000 at 70% DOD |
| Communication Interfaces | CAN / RS485 |
| HMI | 3.5 inch LCD touchscreen + Status Light + SOC power indicators |
| Operation Temperature | Charge: 0 ~ 55°C, Discharge: -20 ~ 55°C |
| Storage Temperature | -20 ~ 30°C (12 months), 30 ~ 60°C (6 months) |
| Single String Quantity | 16 pcs |
| Dimension (W x H x D) | 335 x 626 x 169 mm |
| Weight | N.W: 42.0 KG – G.W: 46.0 KG |
| Installation Type | Wall / Floor / Rack mounting |
| Enclosure Protection | IP40 |
| Cooling Concept | Natural cooling |
| Humidity | 20 ~ 85% RH (non-condensing) |
| Altitude | <3000 m |
| Certification | IEC 62477, IEC 62619, IEC 60730, IEC 63056, IEC 61000, UN38.3 |
| Warranty | 5 Years |
| Compatibility | and compatible with (SolaX LD51 Battery) IP21 & IP65 Solar Inverters |
