Description

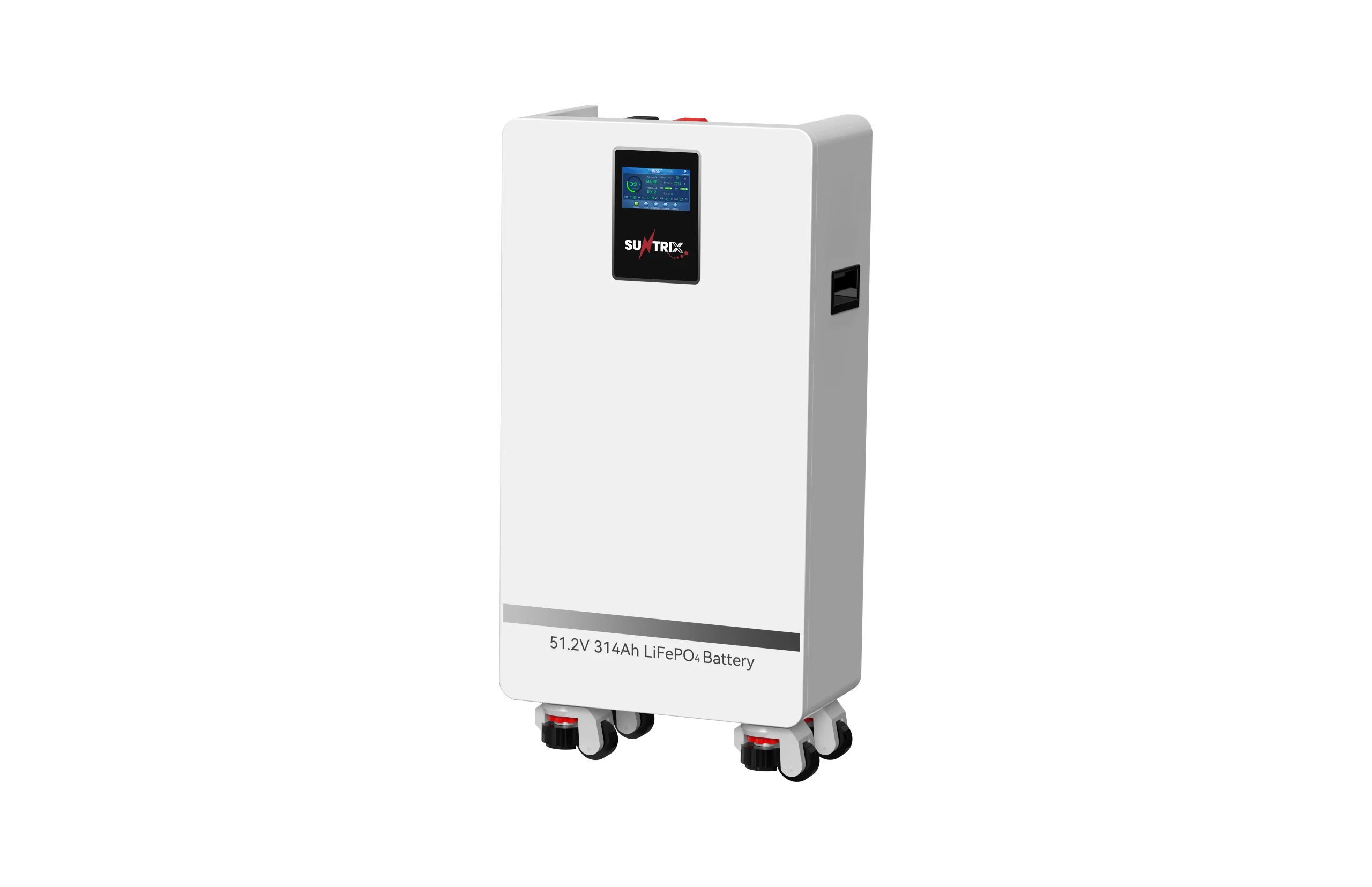

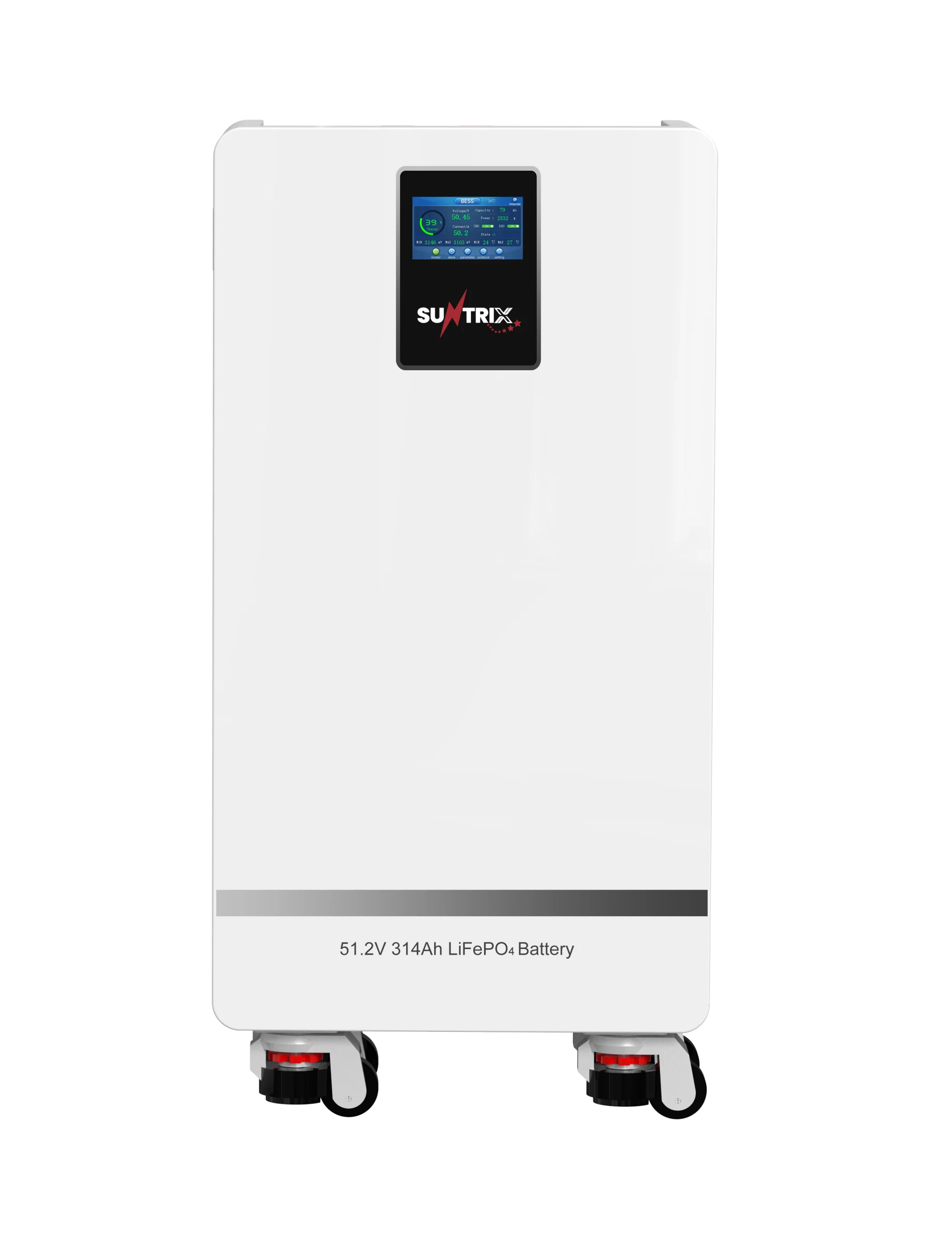

The Suntrix PowerPulse PP-16.07KW is a high-capacity 16.07 kWh residential LiFePO4 lithium battery built for large homes, villas, farmhouses, and serious solar self-consumption systems across Pakistan. With a 51.2V nominal voltage, 314Ah capacity, and 14.07 kWh of usable energy (90% recommended DOD), the PP-16.07KW delivers all-day energy storage to power your entire home off solar — even during long load-shedding spells.
Built on lithium iron phosphate (LiFePO4) chemistry — the safest and longest-lived lithium technology — this battery delivers ≥6000 charge/discharge cycles at 90% DOD, ensuring 15+ years of reliable service and an unbeatable total cost of ownership. With 150A continuous charging and 200A continuous discharge, the PP-16.07KW handles heavy household loads (ACs, motors, pumps) with ease. Featuring a color touch display, built-in Wi-Fi and Bluetooth, online App for remote monitoring, and multi-protocol BMS compatibility (CAN 2.0, RS485, RS232, Wi-Fi), it pairs seamlessly with leading hybrid inverters like the Suntrix Vortex Z-8 / Z-10 / Z-12 PRO.
Floor-mounted on integrated wheels for easy positioning, UN38.3 certified, and backed by Suntrix's 5-year warranty — the PowerPulse PP-16.07KW is the ultimate whole-home energy storage solution.
- Online App for Remote Monitoring: Remote Monitoring
- 6000 cycles @80% DOD for effectively lower total of ownership cost: Long Life
- Easy and Quick Installation: Easy Installation
- Supports multiple communication protocols: BMS Compatibility
- Color touch display screen, Wi-Fi, and Bluetooth: Screen Display
Technical Specifications
| Rated Energy(kWh) |
16.07 |
| Recommended Depth of Discharge |
90% |
| Operating Voltage(V) |
43.2~57.6 |
| Battery Type |
LiFePO4 |
| Usable Energy(kWh) |
14.07 |
| Maximum Charge/Discharge Current(A) |
150/200 |
| Nominal Voltage(V) |
51.2 |
| Capacity(Ah) |
314 |
| Operating Temperature(°C) |
Discharge:-20°C~55°C |
| Certification |
UN38.3 |
| Humidity |
5%~95% |
| Weight Approximate(kg) |
110 |
| Warranty Period |
5 years |
| Dimension(W×H×D,mm) |
430x864x240 |
| Display |
Color touch display screen |
| Storage Temperature(°C) |
-10°C~40°C |
| Cycle life |
≥8000(25°C±2°C,0.5C/0.5C,90%DOD,70%EOL) |
| Altitude |
≤2000m |
| IP Rating of Enclosure |
IP20 |
| Installation Location |
Floor-Mounted |
| Communication Port |
CAN2.0,RS485,RS232,WIFI |
| Operating Temperature(°C) |
Charge:0°C~55°C |
