Description

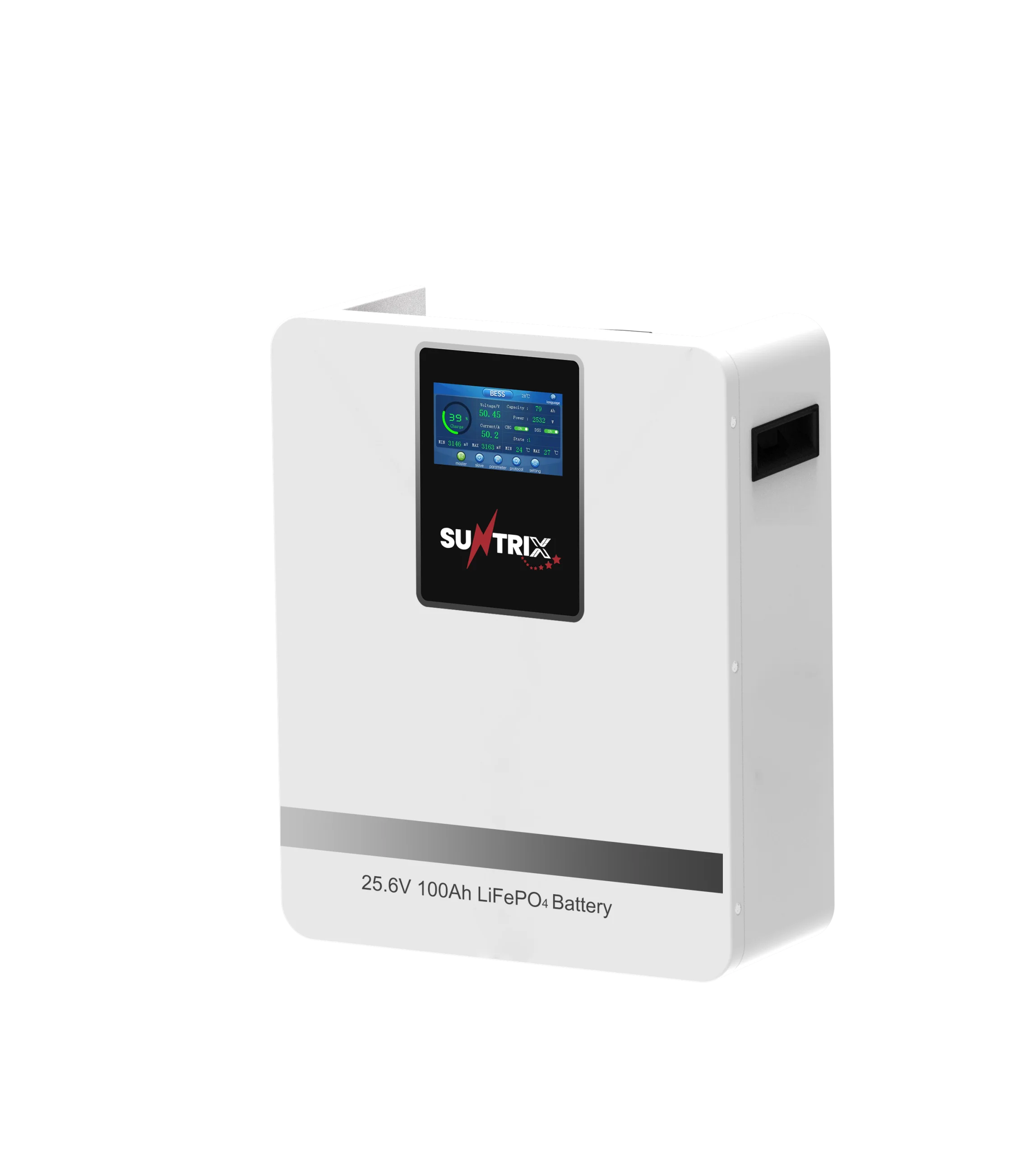

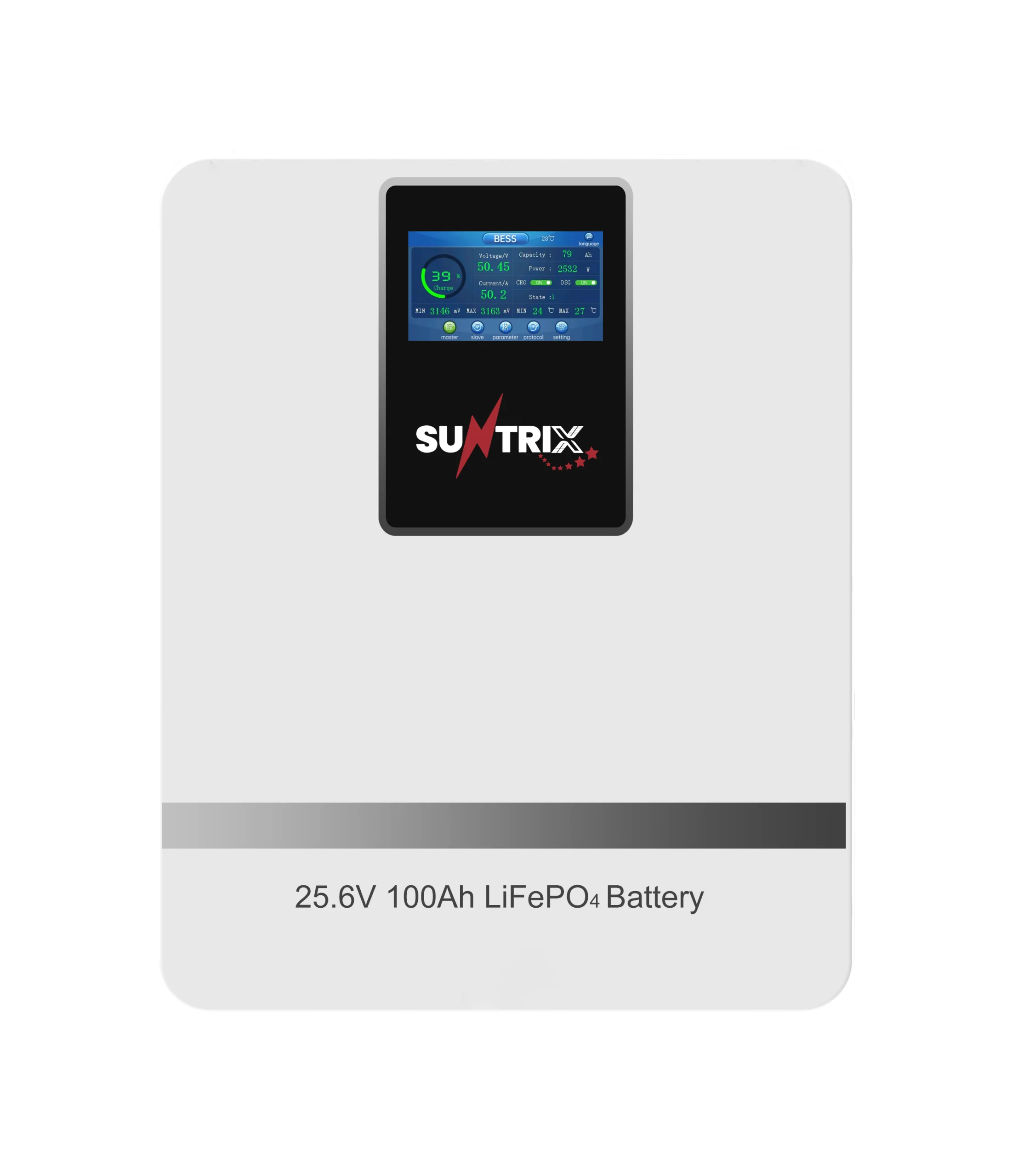

The Suntrix PowerPulse PP-2.56KW is a compact 2.56 kWh residential LiFePO4 lithium battery engineered for small homes, apartments, shops, and entry-level solar backup systems across Pakistan. With a 25.6V nominal voltage, 100Ah capacity, and 2.3 kWh of usable energy (90% recommended DOD), the PP-2.56KW delivers safe, long-lasting, and maintenance-free energy storage for daily cycling and backup needs.
Built around lithium iron phosphate (LiFePO4) chemistry — the safest and longest-lived lithium technology — this battery delivers ≥6000 charge/discharge cycles at 90% DOD, dramatically lowering total cost of ownership compared to lead-acid alternatives. Featuring a color touch display screen, Wi-Fi and Bluetooth connectivity, and an online app for remote monitoring, it gives you full visibility and control of your stored energy. With multi-protocol BMS compatibility (CAN 2.0, RS485, RS232, Wi-Fi), the PP-2.56KW pairs seamlessly with most popular hybrid inverters including Suntrix's Vortex series.
Easy wall-mounted installation, UN38.3 certified, and backed by Suntrix's 5-year warranty — the PowerPulse PP-2.56KW is the smart, safe, and scalable home energy storage solution.
- Online App for Remote Monitoring: Remote Monitoring
- 6000 cycles @80% DOD for effectively lower total of ownership cost: Long Life
- Easy and Quick Installation: Easy Installation
- Supports multiple communication protocols: BMS Compatibility
- Color touch display screen, Wi-Fi, and Bluetooth: Screen Display
Technical Specifications
| Recommended Depth of Discharge |
90% |
| Nominal Voltage(V) |
25.6 |
| Rated Energy(kWh) |
2.56 |
| Maximum Charge/Discharge Current(A) |
50/100 |
| Usable Energy(kWh) |
2.3 |
| Operating Voltage(V) |
21.6~28.8 |
| Capacity(Ah) |
100 |
| Battery Type |
LiFePO4 |
| IP Rating of Enclosure |
IP20 |
| Dimension(W×H×D,mm) |
340x420x145 |
| Communication Port |
CAN2.0,RS485,RS232,WIFI |
| Warranty Period |
5 years |
| Humidity |
5%~95% |
| Installation Location |
Wall-Mounted |
| Weight Approximate(kg) |
25 |
| Cycle life |
≥6000(25°C±2°C,0.5C/0.5C,90%DOD,70%EOL) |
| Altitude |
≤2000m |
| Operating Temperature(°C) |
Charge:0°C~55°C |
| Display |
Color touch display screen |
| Storage Temperature(°C) |
-10°C~40°C |
| Certification |
UN38.3 |
