Description

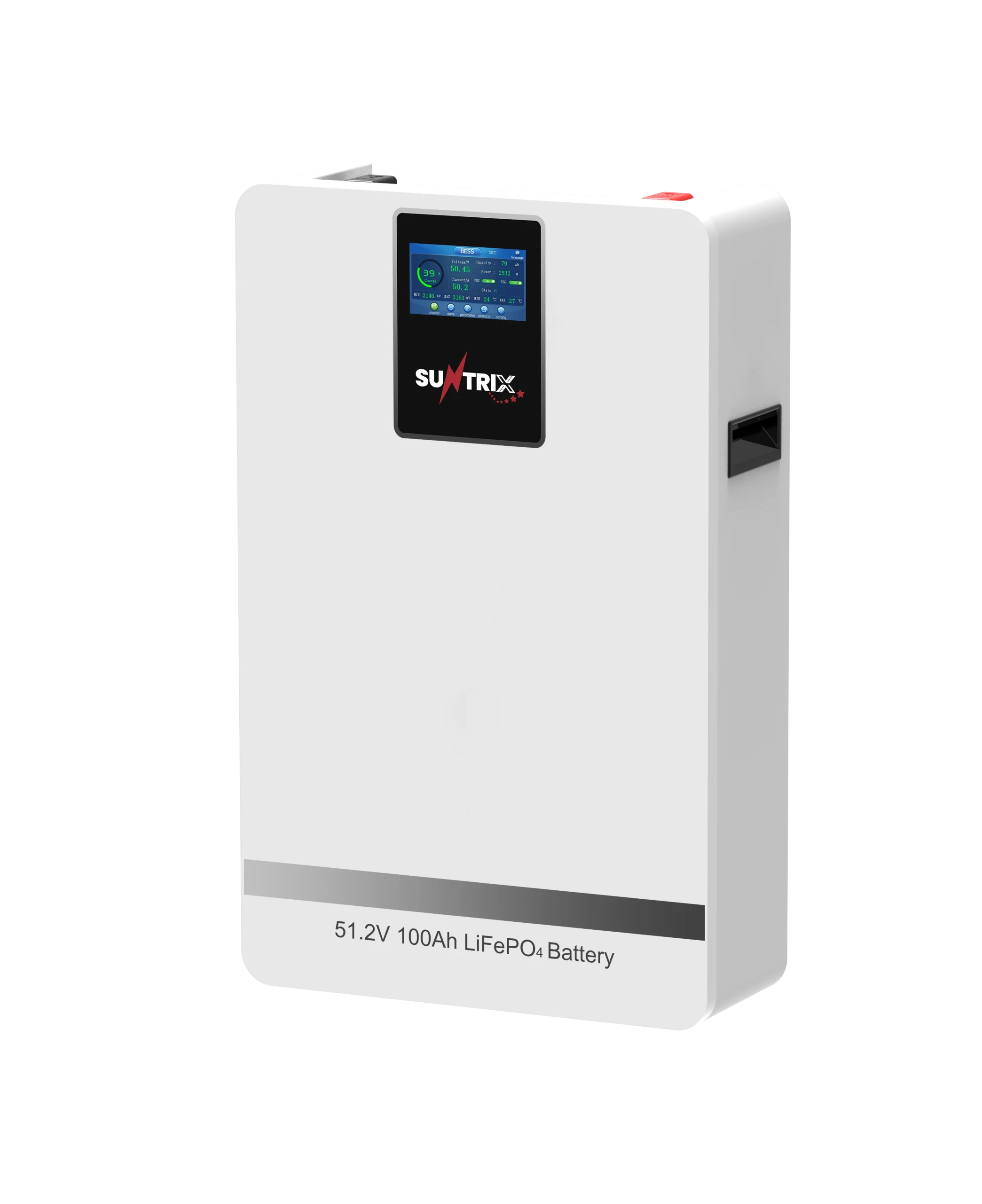

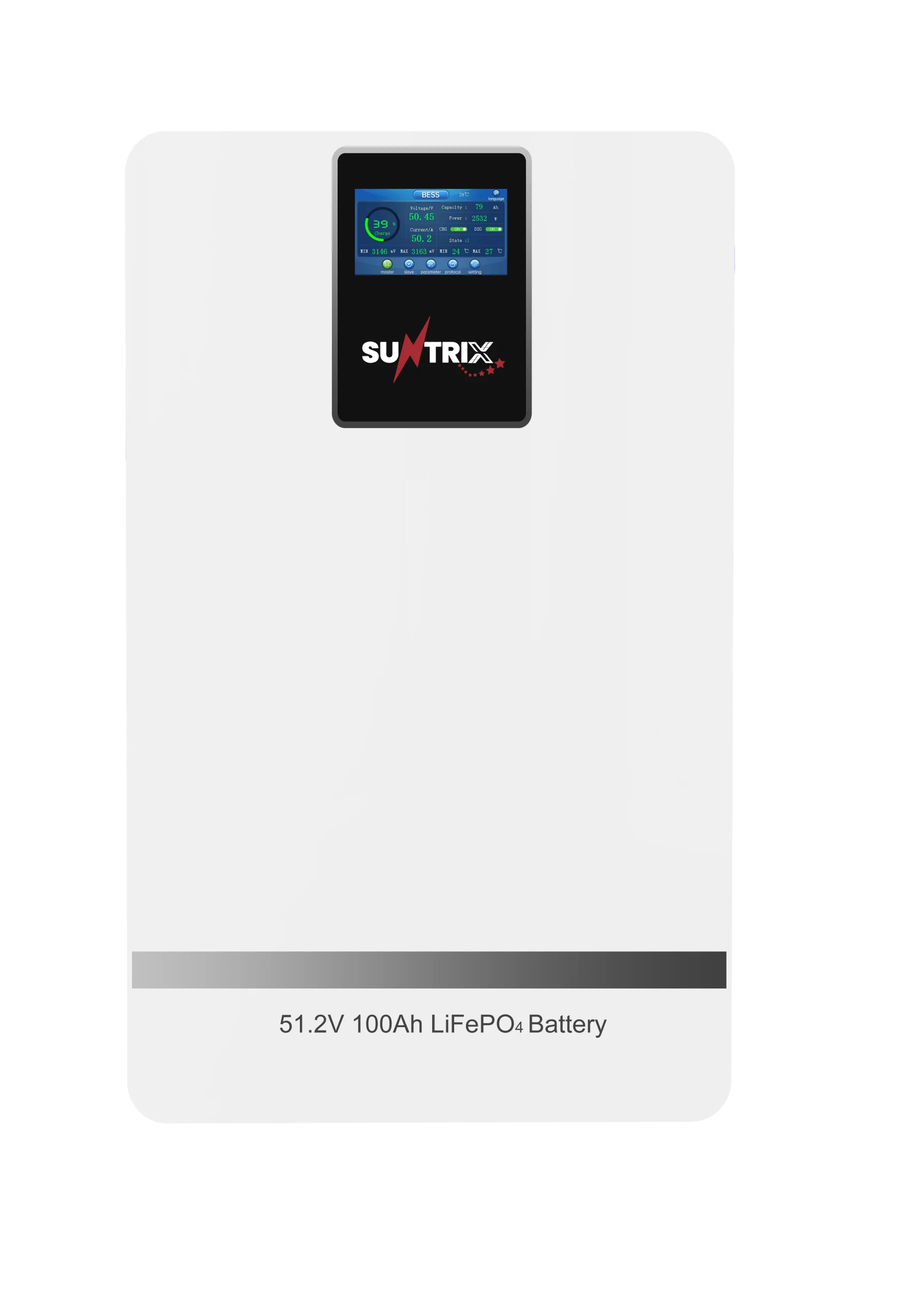

The Suntrix PowerPulse PP-5.12KW is a high-performance 5.12 kWh residential LiFePO4 lithium battery designed for medium-sized homes, offices, retail outlets, and full hybrid solar systems across Pakistan. With a 51.2V nominal voltage, 100Ah capacity, and 4.6 kWh of usable energy (90% recommended DOD), the PP-5.12KW perfectly matches 48V-class hybrid inverters such as the Suntrix Vortex Z-6 / Z-8 / Z-10 / Z-12 PRO series.
Built on lithium iron phosphate (LiFePO4) chemistry — the safest and longest-lasting lithium technology — this battery delivers ≥6000 charge/discharge cycles at 90% DOD, ensuring decade-plus service life and dramatically lower total cost of ownership versus lead-acid. It includes a color touch display, built-in Wi-Fi and Bluetooth, online App for remote monitoring, and multi-protocol BMS compatibility (CAN 2.0, RS485, RS232, Wi-Fi) for seamless integration with most popular hybrid inverters.
Easy wall-mounted installation, UN38.3 certified, and backed by Suntrix's 5-year warranty — the PowerPulse PP-5.12KW is the smart, scalable, and future-proof home energy storage choice for net-metering, solar self-consumption, and load-shedding backup.
- Online App for Remote Monitoring: Remote Monitoring
- 6000 cycles @80% DOD for effectively lower total of ownership cost: Long Life
- Easy and Quick Installation: Easy Installation
- Supports multiple communication protocols: BMS Compatibility
- Color touch display screen, Wi-Fi, and Bluetooth: Screen Display
Technical Specifications
| Operating Voltage(V) |
43.2~57.6 |
| Battery Type |
LiFePO4 |
| Maximum Charge/Discharge Current(A) |
50/100 |
| Capacity(Ah) |
100 |
| Usable Energy(kWh) |
4.6 |
| Rated Energy(kWh) |
5.12 |
| Recommended Depth of Discharge |
90% |
| Nominal Voltage(V) |
51.2 |
| Operating Temperature(°C) |
Discharge:-20°C~55°C |
| Operating Temperature(°C) |
Charge:0°C~55°C |
| Storage Temperature(°C) |
-10°C~40°C |
| Cycle life |
≥6000(25°C±2°C,0.5C/0.5C,90%DOD,70%EOL) |
| Display |
Color touch display screen |
| Dimension(W×H×D,mm) |
380x600x145 |
| Warranty Period |
5 years |
| Installation Location |
Wall-Mounted |
| Communication Port |
CAN2.0,RS485,RS232,WIFI |
| IP Rating of Enclosure |
IP20 |
| Weight Approximate(kg) |
45 |
| Certification |
UN38.3 |
| Humidity |
5%~95% |
