Description

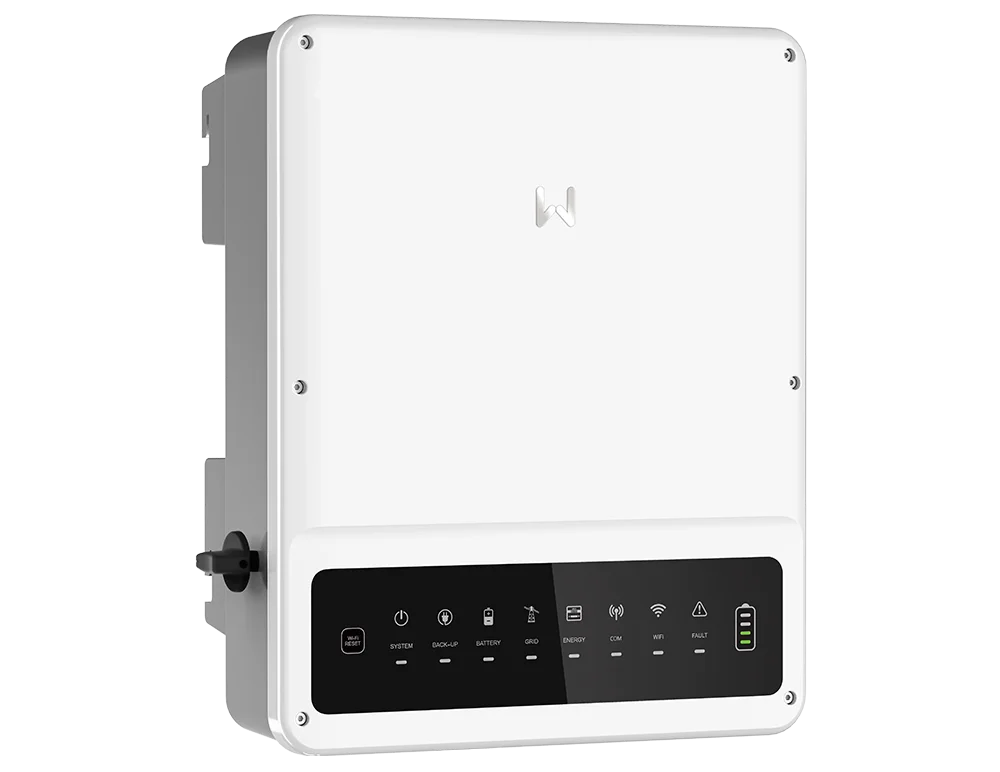

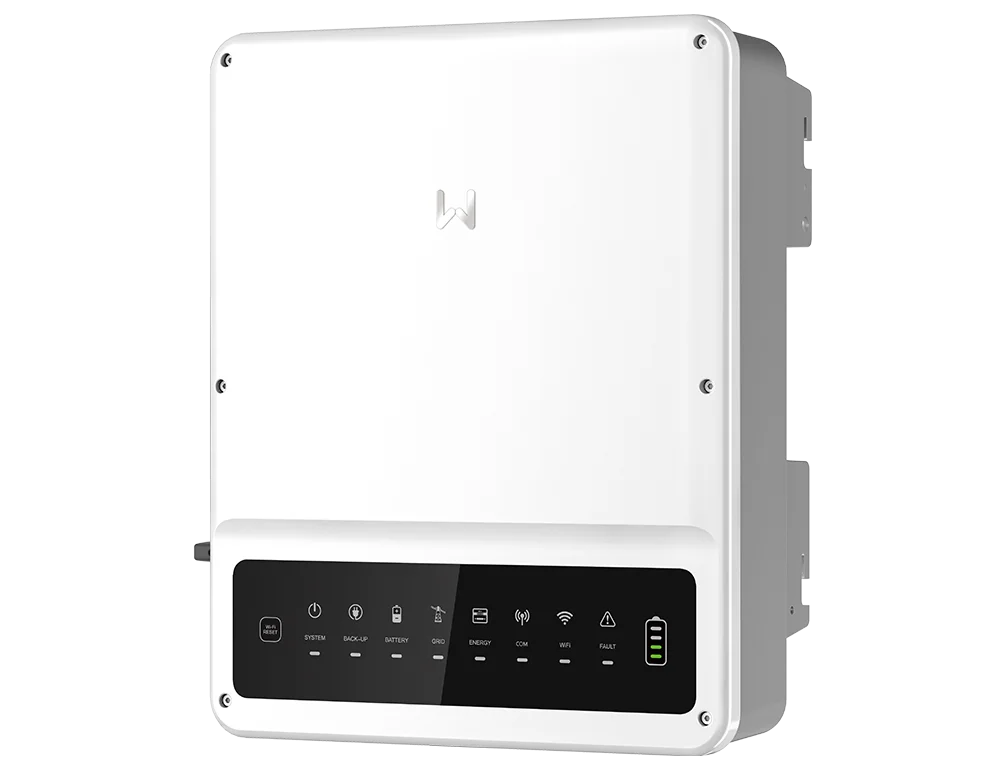

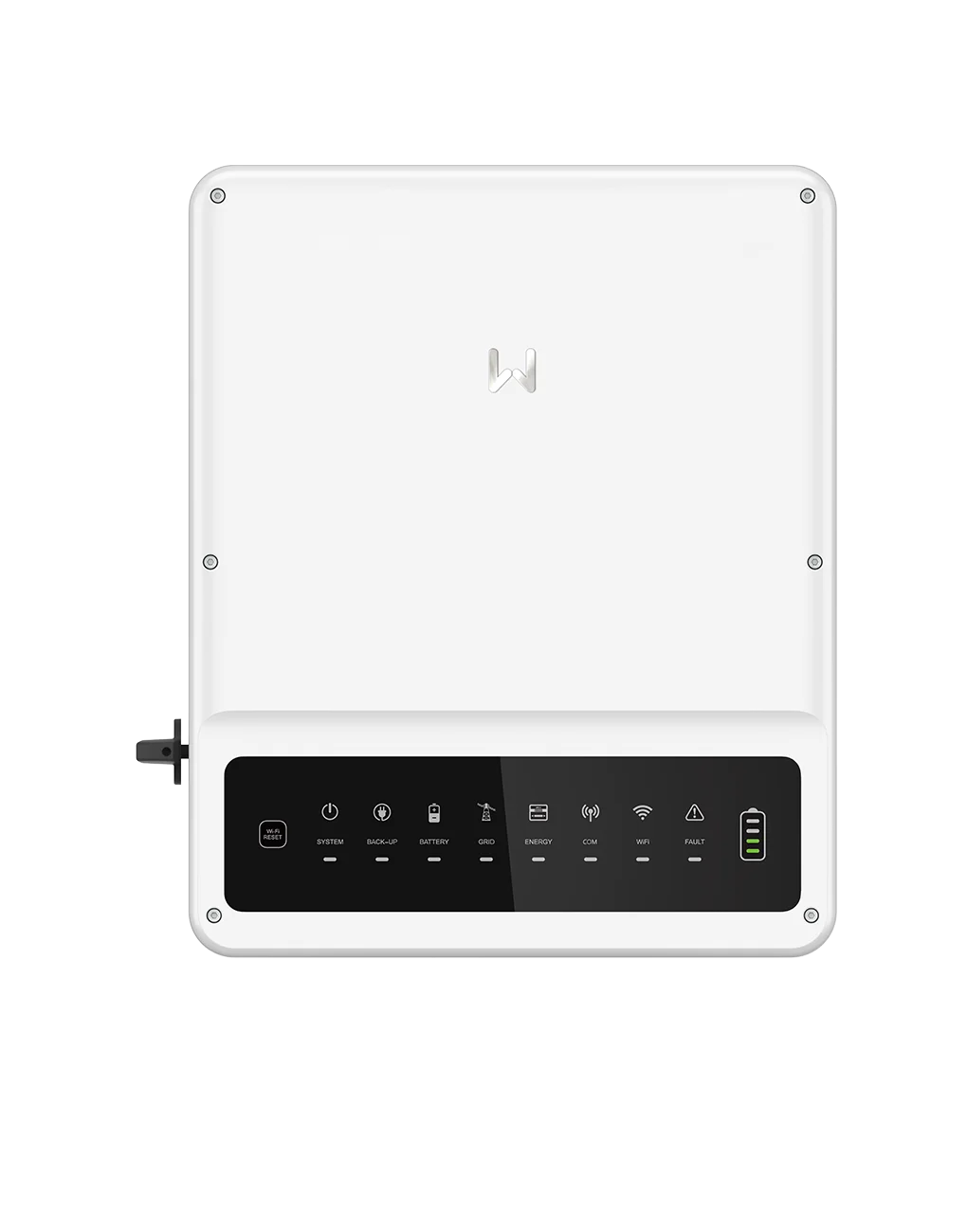

The GoodWe EH Plus+ Series is a single phase battery ready energy storage inverter rated 3.6 to 6kW with 2 MPPTs and smart UPS level switching for homes.
Key Features
- Smart Control for Smart Energy: Take smart load control to customize the power generation to accommodate your load consumption needs. EH Plus+ Series can make a smart UPS-level switching to the backup mode in less than 10 ms, ensuring essential loads experience no interruption. Peak shaving is also supported to reduce power consumption during periods of high demand, which would reduce peak demand charges.
- Flexible & Adaptable Applications: The EH Plus+ Series offers a grid-connected version featuring GoodWe Battery Ready option to activate energy storage with one activation code — a simple way to future-proof your home for an energy storage system. To use even more self-generated solar energy in your home, its maximum DC input current of 16A and compatibility with high-power modules help generate more power and reduce the amount of electricity purchased from the grid to adapt to yo
Technical Specifications
GW6000N-EH
| Battery Voltage Range (V) | 85~460 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 25/25 |
| Max. Input Current per MPPT (A) | 16 |
| Max. Apparent Power Output to Utility Grid (VA) | 6000 / 6600 |
| Back-up Nominal Apparent Power (VA) | 6000 |
GW5000N-EH
| Battery Voltage Range (V) | 85~460 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 25/25 |
| Max. Input Current per MPPT (A) | 16 |
| Max. Apparent Power Output to Utility Grid (VA) | 5000 / 5500 |
| Back-up Nominal Apparent Power (VA) | 5000 |
GW3600N-EH
| Battery Voltage Range (V) | 85~460 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 25/25 |
| Max. Input Current per MPPT (A) | 16 |
| Max. Apparent Power Output to Utility Grid (VA) | 3600 / 3960 |
| Back-up Nominal Apparent Power (VA) | 3600 |
