Description

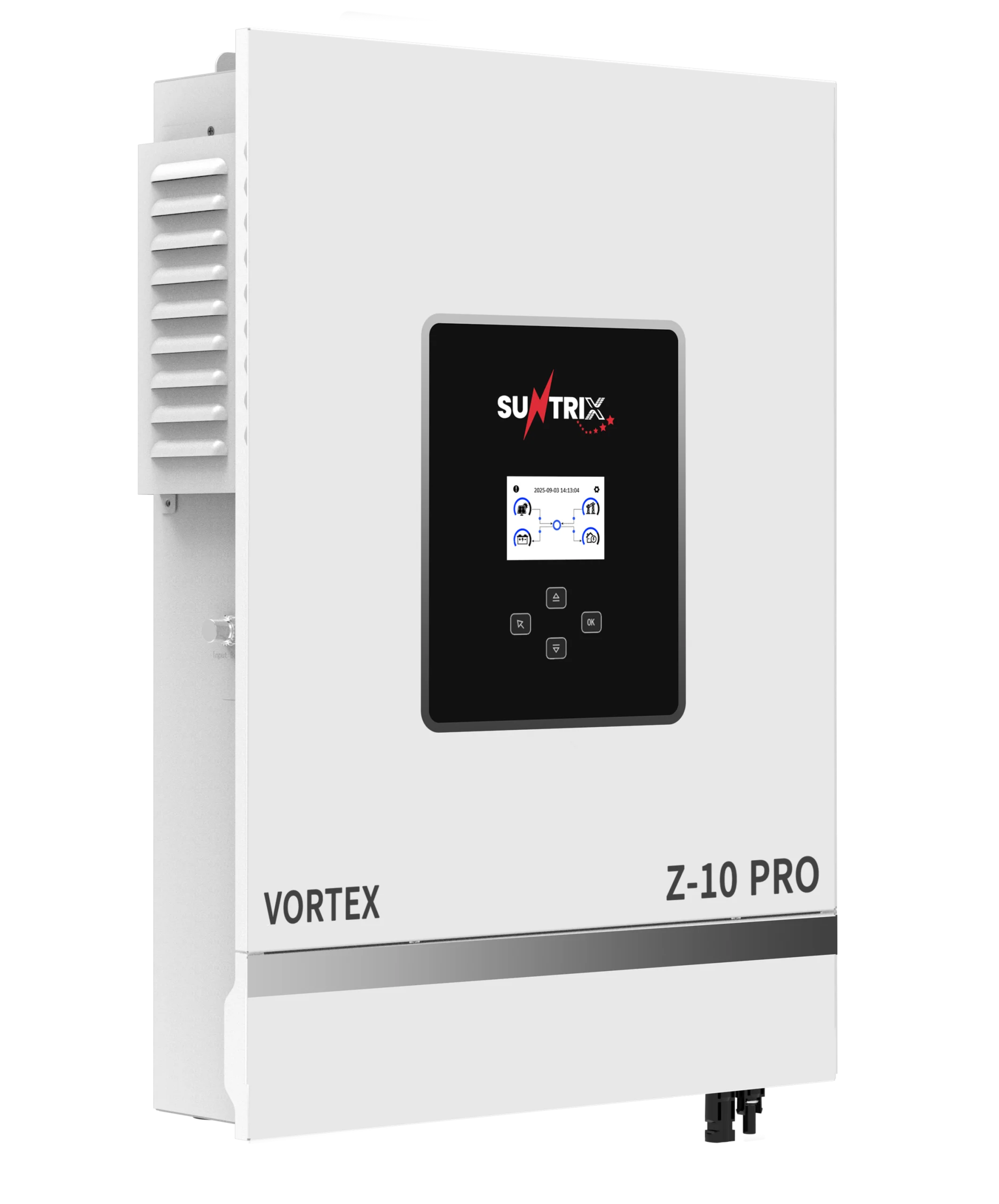

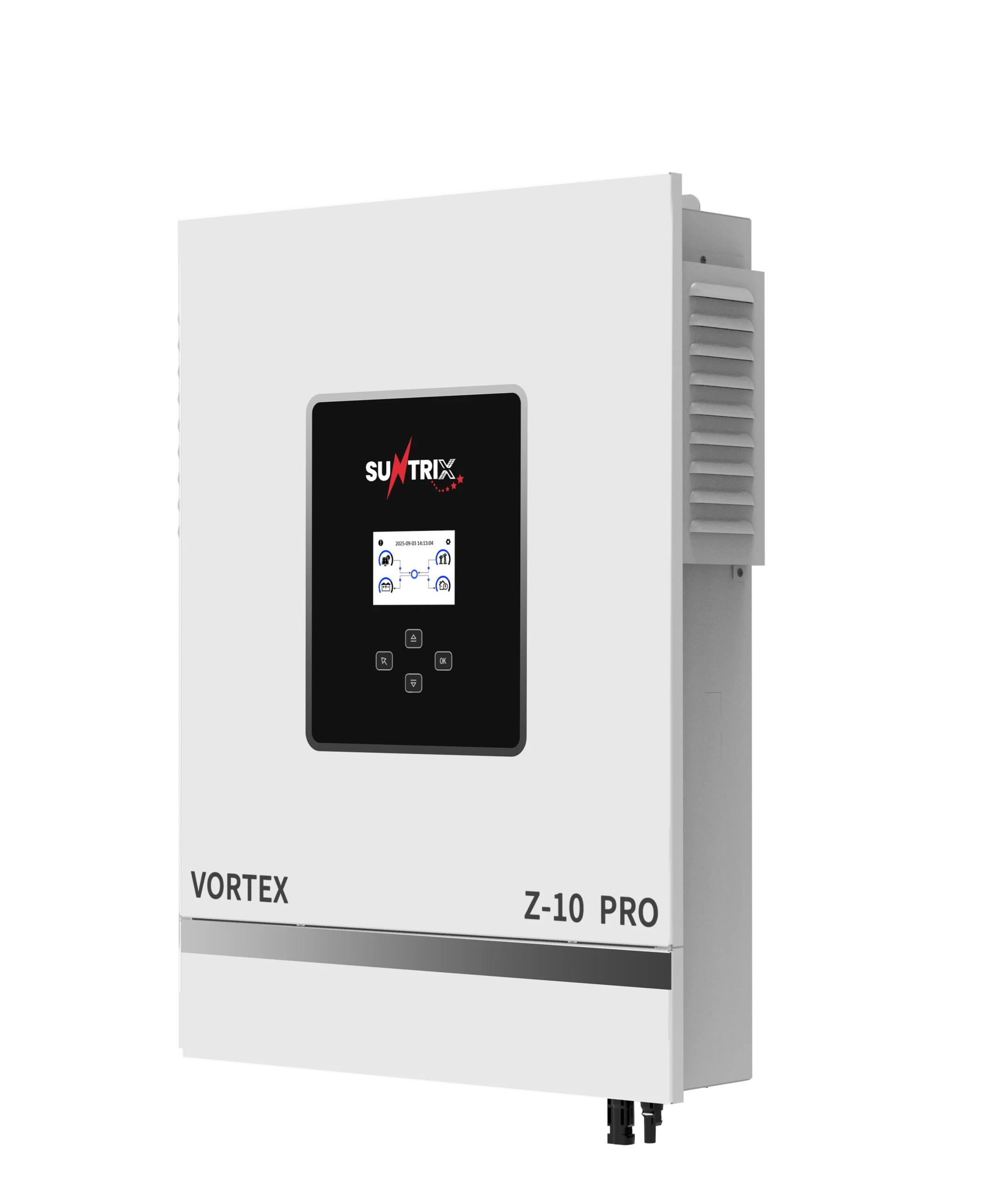

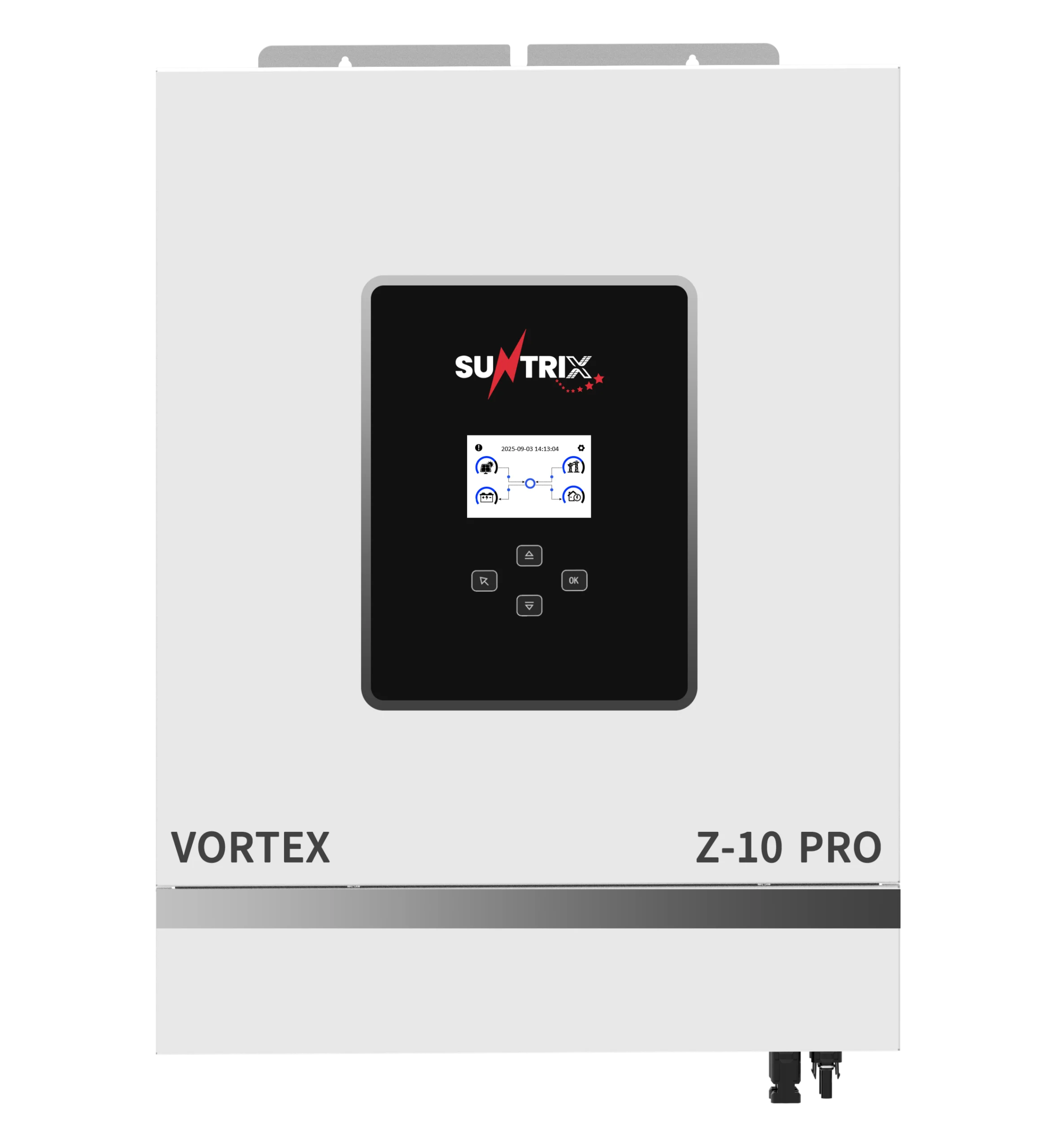

The Suntrix Vortex Z-10 PRO is a powerful 10kW solar inverter designed for large homes, commercial buildings, farms, and net-metering systems across Pakistan. Equipped with dual MPPT trackers (2 × 7500W = 15,000W max PV input), an IP54 weatherproof enclosure, and a wide 60–450V MPPT range, the Z-10 PRO maximizes solar harvest under variable conditions while delivering a reliable 10000VA / 10000W pure sine wave output.
With built-in Wi-Fi and the SmartValue App for remote monitoring, smart load management via dual AC output, support for 48V lithium and lead-acid batteries (up to 160A charging), and parallel scalability up to 6 units (60kW total), the Vortex Z-10 PRO is engineered for serious solar investors. Its 10ms UPS switch time, 98% peak efficiency, comprehensive electrical protections, and IEC-certified compliance make it an ideal choice for backup, grid-tie, and off-grid solar installations. Backed by a 5-year Suntrix warranty (3 years parts + 2 years service).
- High level protection: IP54
- Screen Operation: LCD Color
- Dual AC Output Design: Smart Load Management
- Remote Monitoring with SmartValue APP: Built-in Wi-Fi
- Starting generator (Optional): Support dry contact
- The maximum current of single string module is 27A: MPPT Current
- Parallel Connections up to 6 Units: Parallel Connection
- Voltage Range: 60–450V: MPPT Range
Technical Specifications
| Rated Power |
10000W/10000VA |
| Model Name |
VORTEX Z-10 PRO |
| Max. Current per MPPT(A) |
27/27 |
| MPPT Voltage Range(V) |
60-450 |
| Max. PV Input Power(W) |
2 x 7500 |
| Number of MPPT Trackers |
2 |
| Max. PV Input Voltage(V) |
500 |
| Output Voltage Waveform |
Pure Sine Wave |
| Rated Frequency |
50/60Hz |
| Rated voltage |
220/230/240VAC |
| Rated Output Current(A) |
43.5 |
| Switch Time(ms) |
10mS (@UPS) |
| Max Efficiency |
98% |
| Peak Output Power, Time |
60S@102%-125% Load: 10S@ 125% |
| Rated AC Output Power(W) |
10000 |
| Rated Frequency |
50/60Hz |
| Voltage range(V) |
170-280VAC±3V (UPS mode) |
| Input Type |
L+N+PE |
| Rated voltage |
220/230/240V |
| Battery Voltage(V) |
48 |
| Float Charging Voltage(V) |
54 |
| Max. Charging Current(A) |
160 |
| Battery Type |
Lithium, Lead-acid |
| Integrated |
Over Current Protection / Over and under Voltage Protection / Output Short Circuit Protection / Over-temperature protection / Over and under Frequency Protection / Surge Protection |
| Communication |
RS232, Wi-Fi, RS485 |
| Max. Operating Altitude(m) |
Derating over 1000m, Max 4000m, Refer to IEC62040 |
| Weight(kg) |
20 |
| Dimension(W×H×D,mm) |
550 x 410 x 30 |
| Relative Humidity |
5% – 95% (Non-condensing) |
| Protection Degree |
IP54 |
| Installation method |
Wall-mounted |
| Display |
LCD |
| Number of parallel |
6 |
| Standard |
IEC61683, IEC61000, IEC 62109-1/2 |
| Operating Temperature Range |
-10°C to 60°C |
