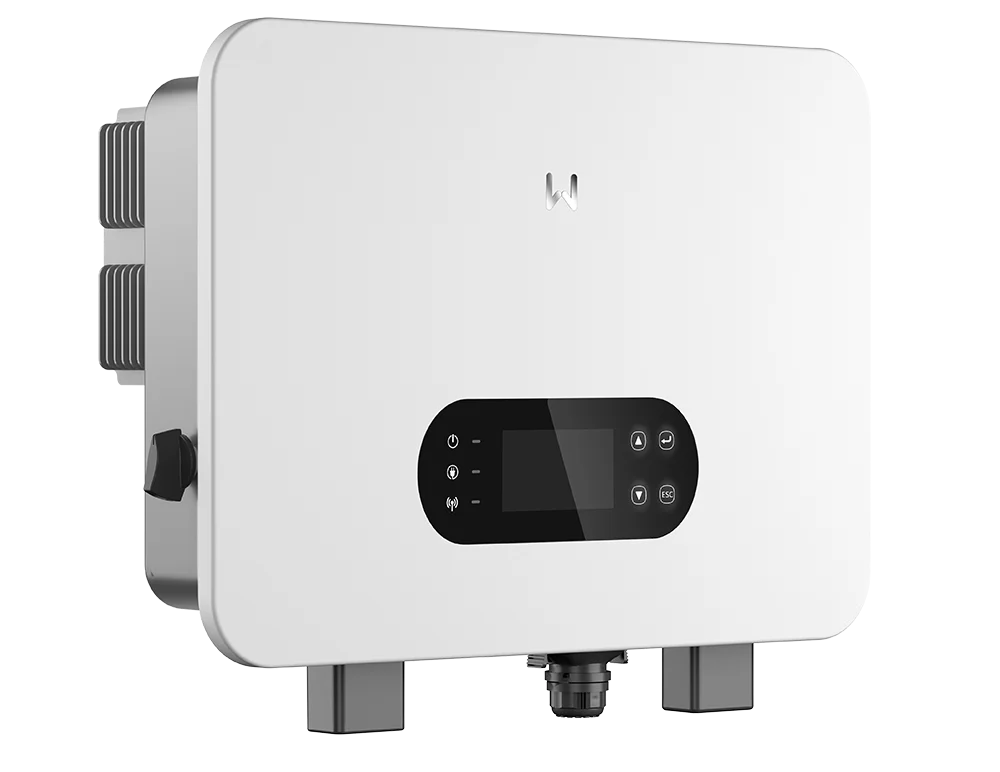

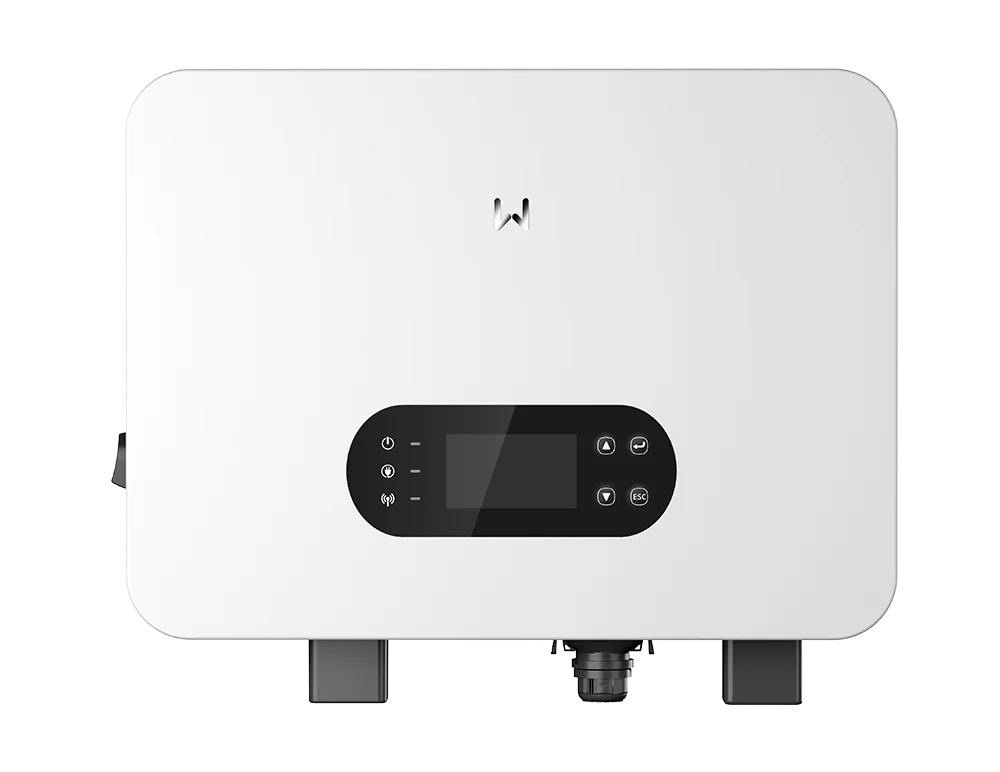

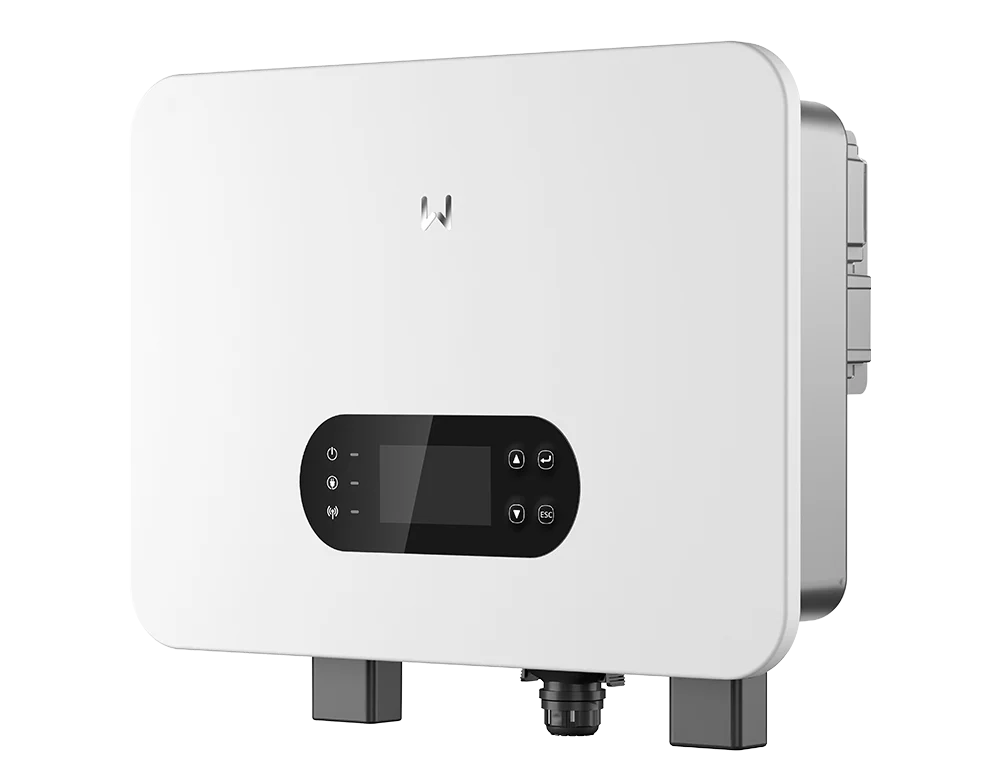

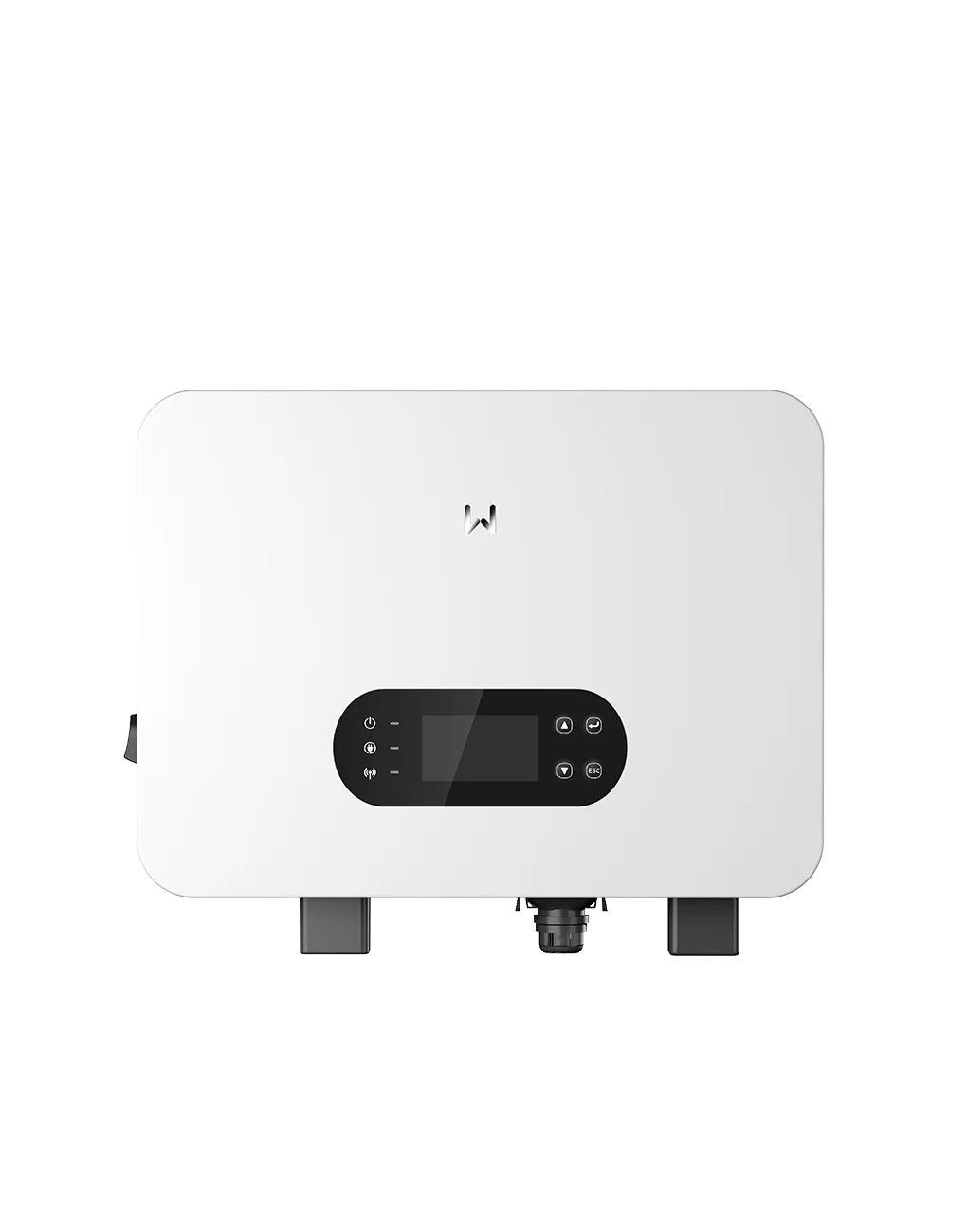

GoodWe ES Uniq Series

Description

The GoodWe ES Uniq Series is a single phase hybrid inverter rated 3 to 12kW with 1 or 2 MPPTs, engineered for cost effective residential energy storage.

Key Features

• Superb Safety & Reliability: Featuring optional Arc Fault Circuit Interrupter (AFCI) technology, ES Uniq detects and mitigates potential fire hazards caused by arc faults, ensuring peace of mind. Additionally, boasting an IP66 ingress protection rating, these inverters are safeguarded against dust and water ingress, making them suitable for various environmental conditions, and ensuring consistent performance and longevity.
• Versatile Power Control with Microgrid Capability: The ES Uniq inverter supports flexible energy management with its 3-in-1 port, enabling seamless integration of a generator, backup loads, and smart loads through a single connection. Additionally, it supports micro-grid operation in coordination with a PV inverter, ensuring stable and autonomous power supply even in off-grid or weak grid scenarios.

Technical Specifications

GW3000-ES-C10

Battery Voltage Range (V)	40 ~ 60
Max. Continuous Charging / Discharging Current (A)	70/70
Max. Input Current per MPPT (A)	20
Max. Apparent Power Output to Utility Grid (VA)	3300
Back-up Nominal Apparent Power (VA)	3000

GW3600-ES-C10

Battery Voltage Range (V)	40 ~ 60
Max. Continuous Charging / Discharging Current (A)	90/90
Max. Input Current per MPPT (A)	20
Max. Apparent Power Output to Utility Grid (VA)	3960
Back-up Nominal Apparent Power (VA)	3600

GW5000-ES-C10

Battery Voltage Range (V)	40 ~ 60
Max. Continuous Charging / Discharging Current (A)	120/120
Max. Input Current per MPPT (A)	20
Max. Apparent Power Output to Utility Grid (VA)	5500
Back-up Nominal Apparent Power (VA)	5000

GW6000-ES-C10

Battery Voltage Range (V)	40 ~ 60
Max. Continuous Charging / Discharging Current (A)	140/140
Max. Input Current per MPPT (A)	20
Max. Apparent Power Output to Utility Grid (VA)	6600
Back-up Nominal Apparent Power (VA)	6000

GW8000-ES-C10

Battery Voltage Range (V)	40~60
Max. Continuous Charging / Discharging Current (A)	160/160
Max. Input Current per MPPT (A)	32/16
Max. Apparent Power Output to Utility Grid (VA)	8800
Back-up Nominal Apparent Power (VA)	8000

GW10K-ES-C10

Battery Voltage Range (V)	40~60
Max. Continuous Charging / Discharging Current (A)	200/200
Max. Input Current per MPPT (A)	32/32
Max. Apparent Power Output to Utility Grid (VA)	11000
Back-up Nominal Apparent Power (VA)	10000

GW12K-ES-C10

Battery Voltage Range (V)	40~60
Max. Continuous Charging / Discharging Current (A)	240/240
Max. Input Current per MPPT (A)	32/32
Max. Apparent Power Output to Utility Grid (VA)	13200
Back-up Nominal Apparent Power (VA)	12000
