Description

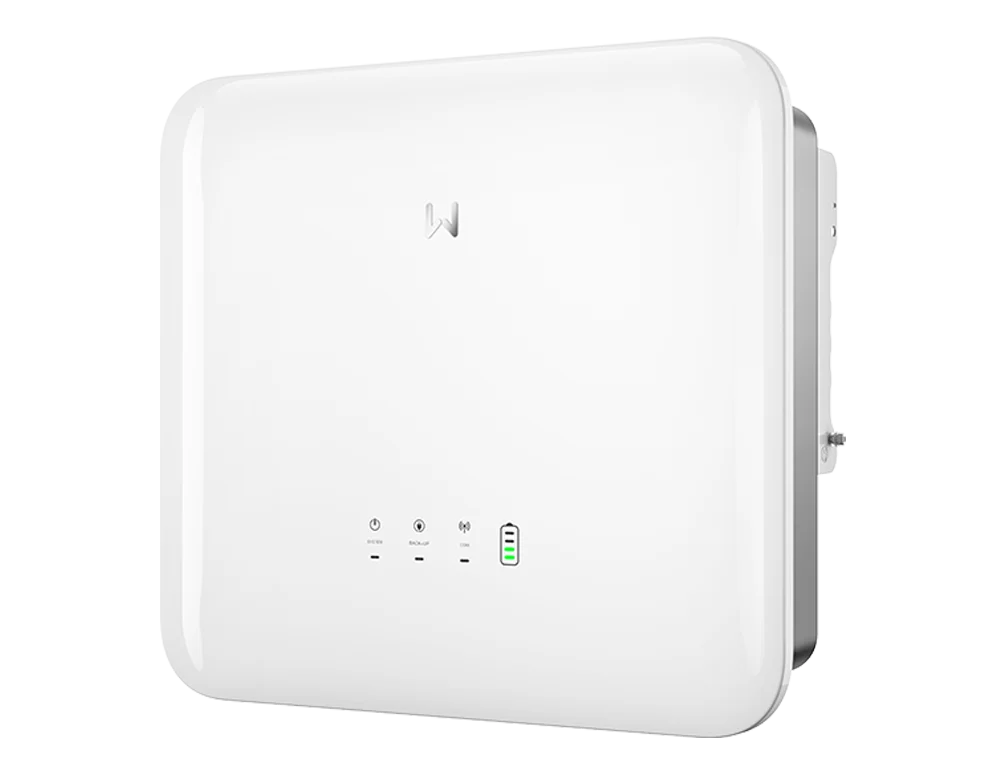

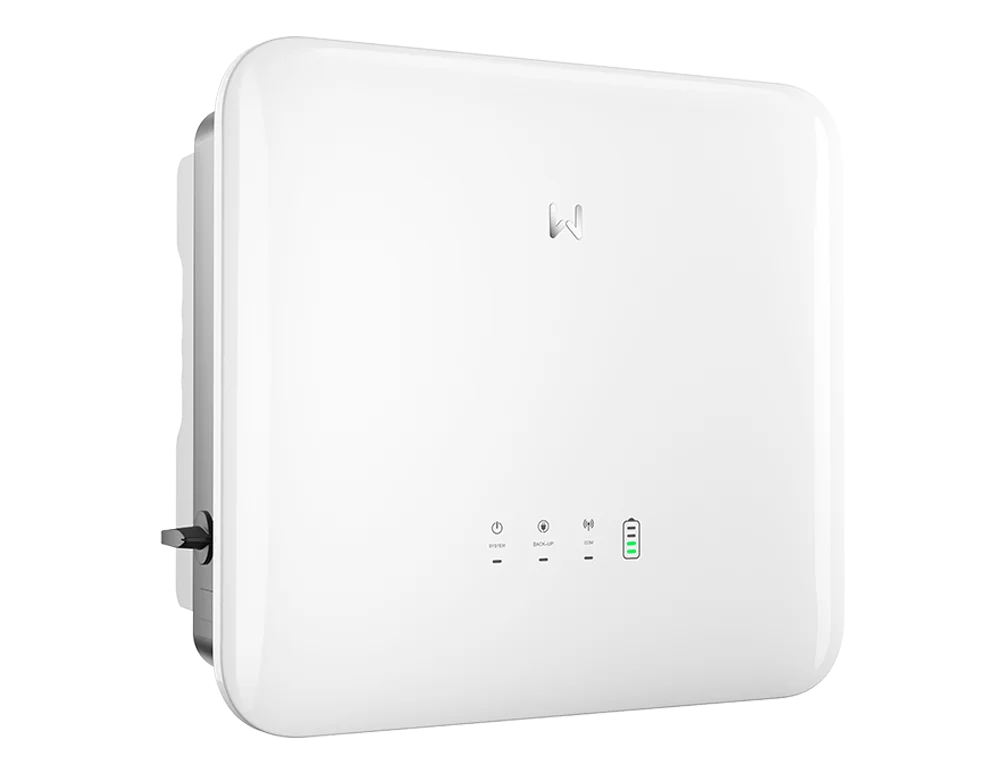

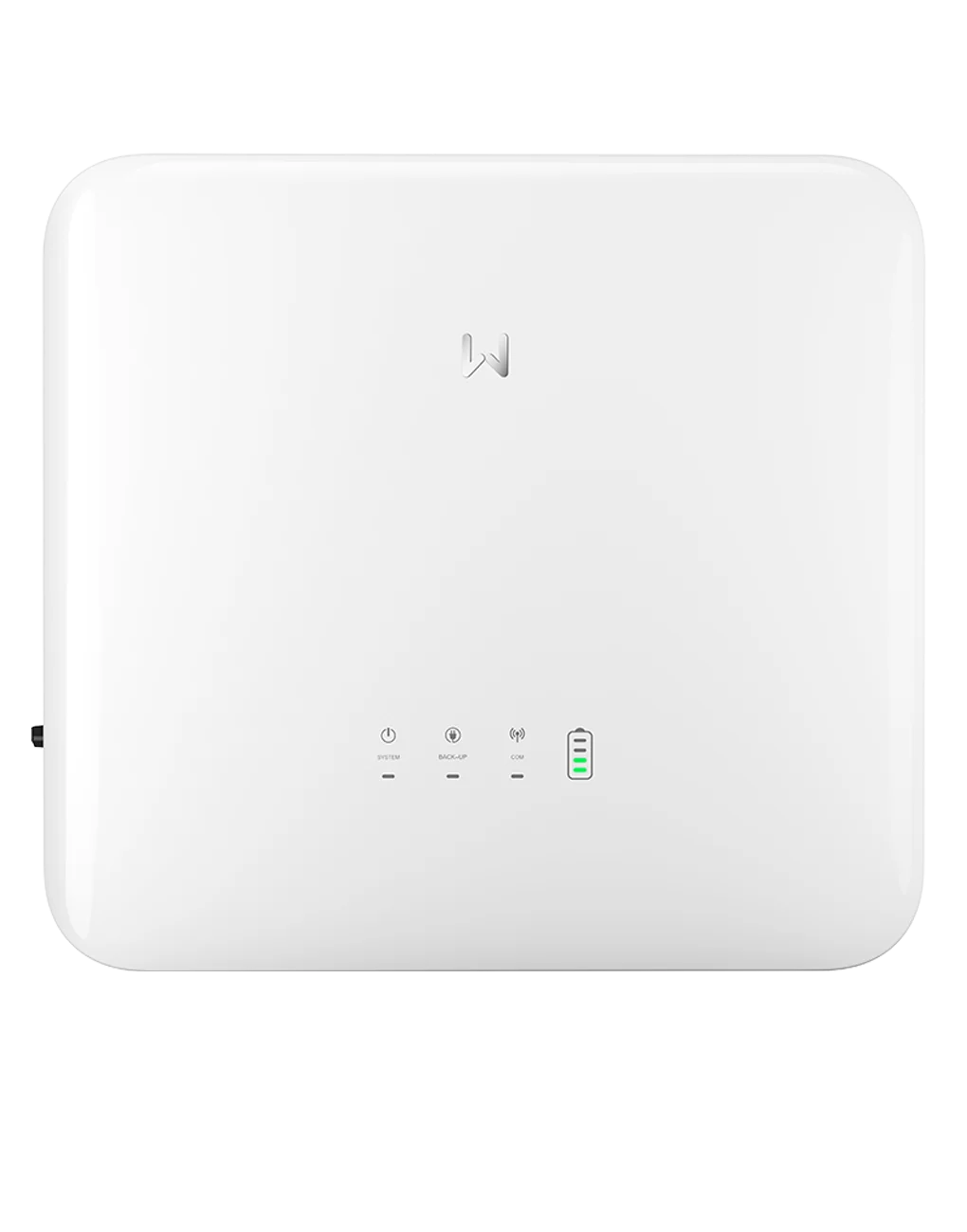

The GoodWe ET G2 Series is a three phase hybrid inverter rated 6 to 15kW with 2 or 3 MPPTs, supporting parallel connection of up to 4 units for homes.
Key Features
- Superb Safety & Reliability: Type II surge protection on both DC and AC sides is integrated to protect the inverter from lightning, providing upgraded safety and reliability for the PV system. With integrated Arc Fault Circuit Interrupter (AFCI), the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously.
- High Generation and Optimized Consumption: The ET G2 Series has been improved for compatibility with high-power modules, with a maximum of 16A input current per string. The 200% PV input oversizing and 98.2% maximum efficiency, drive your inverter to its full capacity to increase your power output in lower solar radiation conditions.
Technical Specifications
GW6000-ET-20
| Battery Voltage Range (V) | 150 ~ 720 |
|---|---|
| Max. Continuous Charging Current (A) | 30 |
| Max. Continuous Discharging Current (A) | 30 |
| Max. Apparent Power Output to Utility Grid (VA) | 6000 |
| Max. Input Current per MPPT (A) | 16 |
GW8000-ET-20
| Battery Voltage Range (V) | 150 ~ 720 |
|---|---|
| Max. Continuous Charging Current (A) | 30 |
| Max. Continuous Discharging Current (A) | 30 |
| Max. Apparent Power Output to Utility Grid (VA) | 8000 |
| Max. Input Current per MPPT (A) | 16 |
GW10K-ET-20
| Battery Voltage Range (V) | 150 ~ 720 |
|---|---|
| Max. Continuous Charging Current (A) | 40 |
| Max. Continuous Discharging Current (A) | 40 |
| Max. Apparent Power Output to Utility Grid (VA) | 10000 |
| Max. Input Current per MPPT (A) | 16 |
GW12K-ET-20
| Battery Voltage Range (V) | 150 ~ 720 |
|---|---|
| Max. Continuous Charging Current (A) | 40 |
| Max. Continuous Discharging Current (A) | 40 |
| Max. Apparent Power Output to Utility Grid (VA) | 12000 |
| Max. Input Current per MPPT (A) | 16 |
GW15K-ET-20
| Battery Voltage Range (V) | 150 ~ 720 |
|---|---|
| Max. Continuous Charging Current (A) | 40 |
| Max. Continuous Discharging Current (A) | 40 |
| Max. Apparent Power Output to Utility Grid (VA) | 15000 |
| Max. Input Current per MPPT (A) | 16 |
