Description

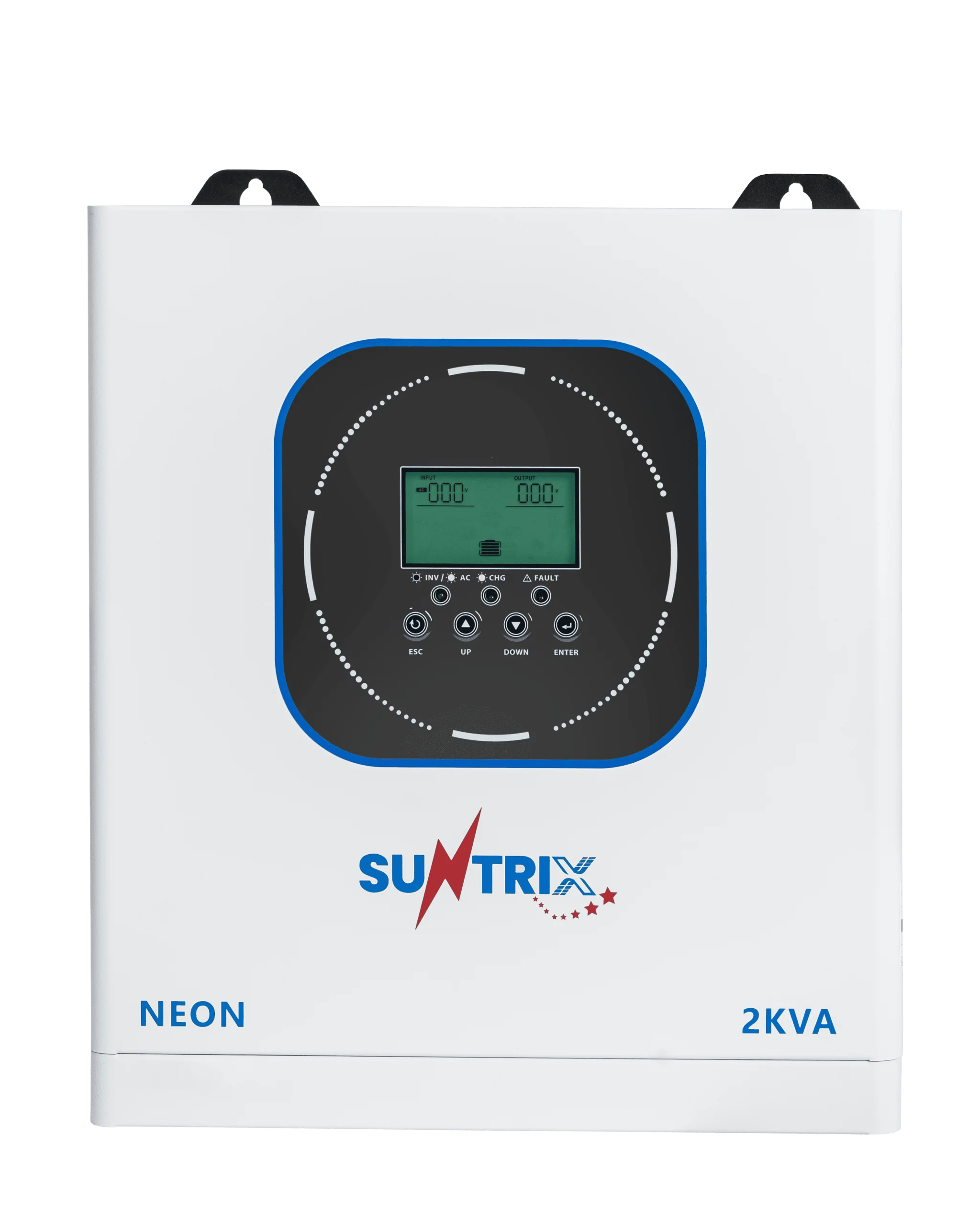

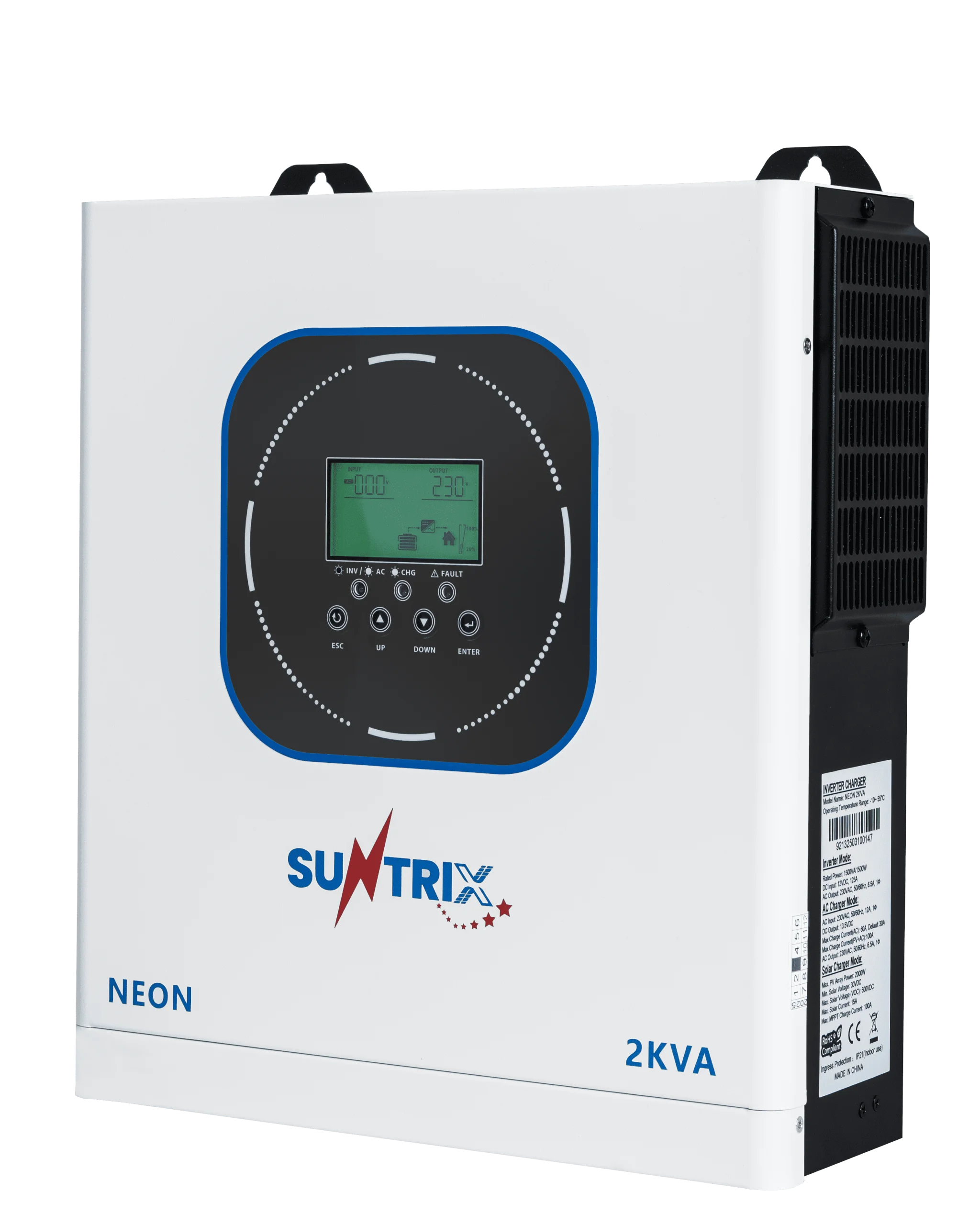

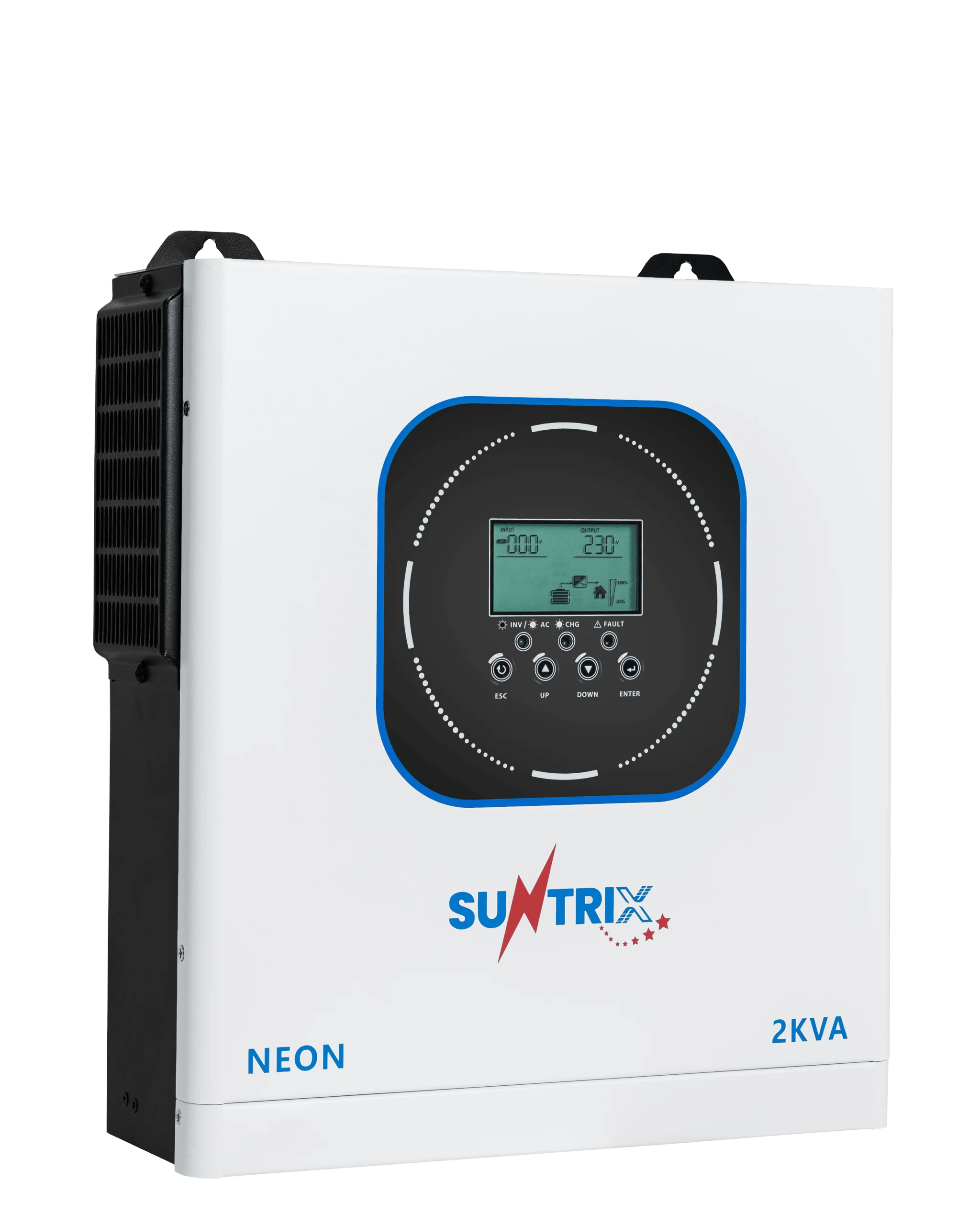

Compact and energy-efficient 2KVA solar inverter designed for small homes. Ensures stable power output, smart battery management, and reliable performance for daily energy needs.
- Power: 1.5kW
- Efficiency: 96%
Technical Specifications
| Capacity | 1500VA/1500W |
|---|---|
| Model Name | NEON 2KVA |
| Acceptable Voltage Range | 170-280VAC (For personal Computer); 90-280VAC (For Home Appliances) |
|---|---|
| Nominal Voltage | 230VAC |
| Frequency | 50/60 Hz (Auto sensing) |
| Peak Efficiency (Battery to INV) | 93% |
|---|---|
| Surge Power | 3000VA |
| Nominal Voltage | 220/230VAC ±15% |
| Peak Efficiency (PV to INV) | 96% |
| Frequency | 50/60 Hz |
| Crest Factor | 3:01 |
| Admissible Power Factor | 0.6-1 (inductive or capacitive) |
| Waveform | Pure Sine wave |
| Transfer Time | 10ms (For personal Computer); 20ms (For Home Appliances) |
| Overload Protection | 5s@≥140% load; 10s@100%-140% load |
| Charging Method | CC/CV |
|---|---|
| Battery Voltage | 12Vdc |
| Battery Wake-up Function | Yes |
| OverCharge Protection | 14.1Vdc |
| Floating Charge Voltage | 13.5Vdc |
| Max. PV Array Open Circuit Voltage | 500VDC |
|---|---|
| Max. PV Array Power | 2000W |
| Max. Solar Charge Current | 100A |
| Solar Charger Type | MPPT |
| PV Array MPPT Voltage Range | 30VDC-500VDC |
| Max. Charge Current (AC+PV) | 100A |
| Max. Solar Input Current | 15A |
| Max. AC Charge Current | 60A |
| Communication Interface | RJ45 For WiFi |
|---|---|
| Dimensions (D x W x H) | 330*278*98 mm |
| Net Weight (kgs) | 3.8 |
| Package Dimensions (D x W x H) | 400*365*174 mm |
| Storage Temperature | -15°C to 60°C |
|---|---|
| Operating Temperature Range | -10°C to 50°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
