Description

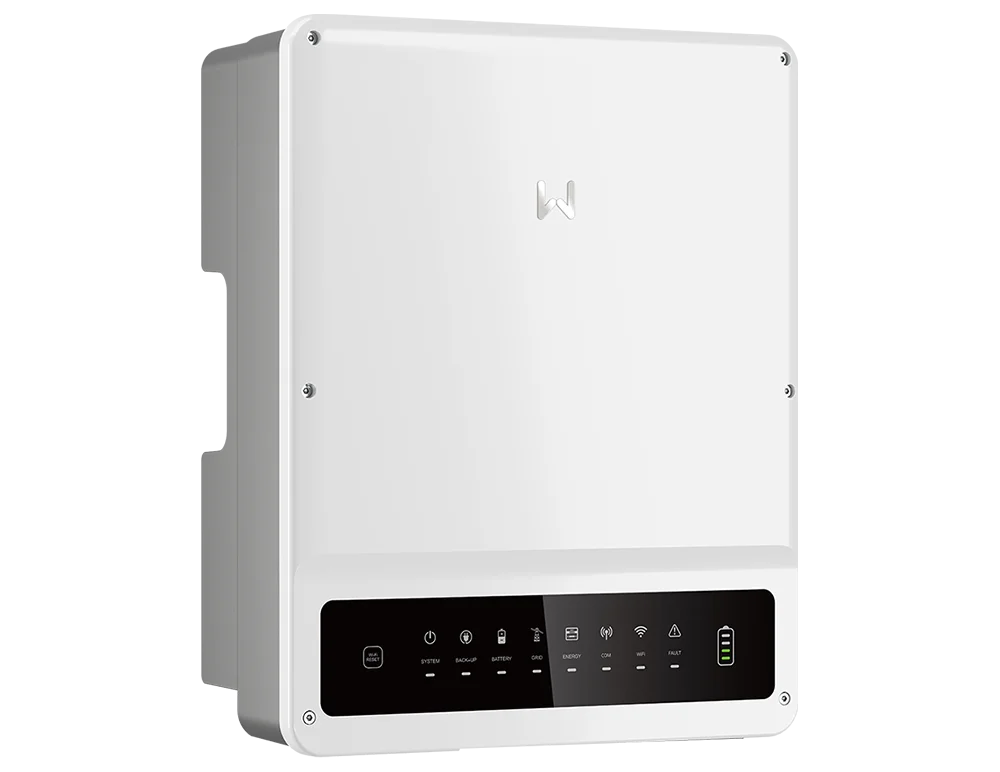

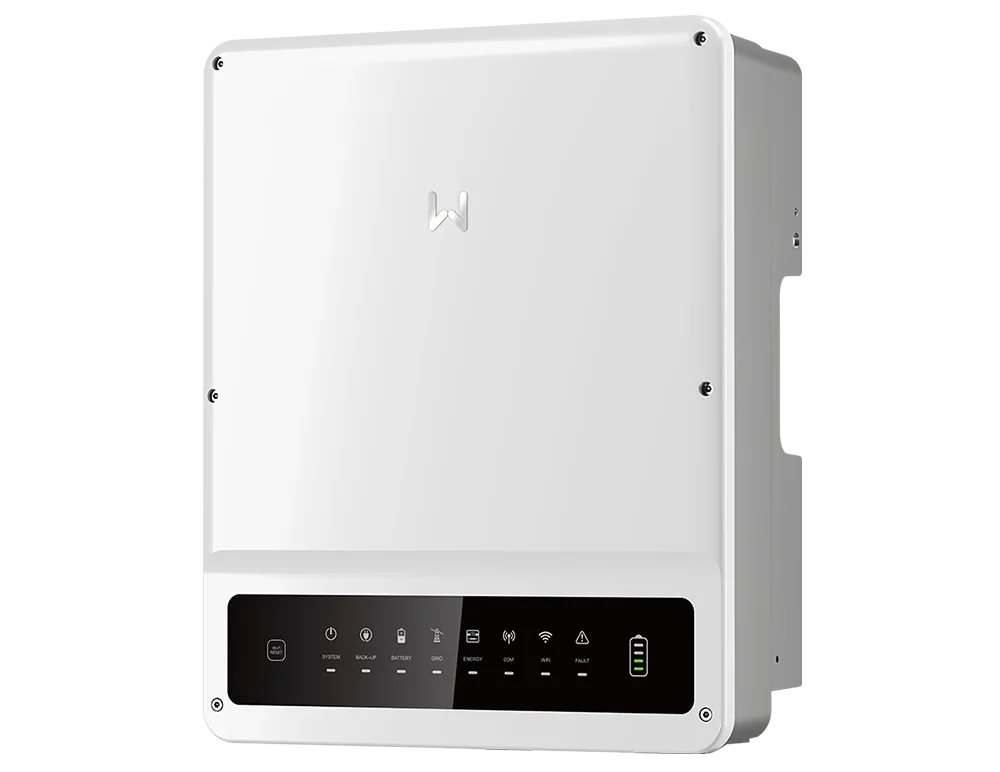

The GoodWe ET PLUS+ Series is a three phase hybrid inverter rated 5 to 10kW with a fanless quiet design, delivering reliable power for residential homes.

Key Features

• Smart Control for Smart Energy: Take smart load control to customize the power generation to accommodate to your load consumption needs. Thanks to the integrated export power limit, ET PLUS+ Series can adapt to any power limit imposed by the local energy provider. Peak shaving is also supported to reduce power consumption during periods of high demand, which would reduce peak demand charges. Enjoy the smart home with smart energy control.
• Flexible & Adaptable Applications: The ET PLUS+ Series offers a grid-connected version featuring GoodWe Battery Ready option to activate energy storage with one activation code — a simple way to future-proof your home for an energy storage system. Take smart load control to customize the power generation to accommodate to the load consumption needs or prioritize battery charge via PV Master App to adapt to different daily use scenarios. Enjoy the simple and flexible power generati
• High Generation and Optimized Consumption: With 150% DC input oversizing and 98.2% maximum efficiency, the inverter massively increases the daily energy yield under various solar radiation conditions. Its maximum DC input current of 16A and compatibility with high-power modules help generate more power and reduce the amount of electricity purchased from the grid to adapt to your needs.

Technical Specifications

GW10KN-ET

Battery Voltage Range (V)	180~600
Max. Continuous Charging / Discharging Current(A)	25/25
Max. Input Current per MPPT (A)	16
Max. Apparent Power Output to Utility Grid (VA)	11000
Back-up Nominal Apparent Power (VA)	10000

GW10K-ET

Battery Voltage Range (V)	180~600
Max. Continuous Charging / Discharging Current(A)	25/25
Max. Input Current per MPPT (A)	12.5
Max. Apparent Power Output to Utility Grid (VA)	11000
Back-up Nominal Apparent Power (VA)	10000

GW8KN-ET

Battery Voltage Range (V)	180~600
Max. Continuous Charging / Discharging Current(A)	25/25
Max. Input Current per MPPT (A)	16
Max. Apparent Power Output to Utility Grid (VA)	8800
Back-up Nominal Apparent Power (VA)	8000

GW8K-ET

Battery Voltage Range (V)	180~600
Max. Continuous Charging / Discharging Current(A)	25/25
Max. Input Current per MPPT (A)	12.5
Max. Apparent Power Output to Utility Grid (VA)	8800
Back-up Nominal Apparent Power (VA)	8000

GW6.5KN-ET

Battery Voltage Range (V)	180~600
Max. Continuous Charging / Discharging Current(A)	25/25
Max. Input Current per MPPT (A)	16
Max. Apparent Power Output to Utility Grid (VA)	7150
Back-up Nominal Apparent Power (VA)	6500

GW6.5K-ET

Battery Voltage Range (V)	180~600
Max. Continuous Charging / Discharging Current(A)	25/25
Max. Input Current per MPPT (A)	12.5
Max. Apparent Power Output to Utility Grid (VA)	7150
Back-up Nominal Apparent Power (VA)	6500

GW5KN-ET

Battery Voltage Range (V)	180~600
Max. Continuous Charging / Discharging Current(A)	25/25
Max. Input Current per MPPT (A)	16
Max. Apparent Power Output to Utility Grid (VA)	5500
Back-up Nominal Apparent Power (VA)	5000

GW5K-ET

Battery Voltage Range (V)	180~600
Max. Continuous Charging / Discharging Current(A)	25/25
Max. Input Current per MPPT (A)	12.5
Max. Apparent Power Output to Utility Grid (VA)	5500
Back-up Nominal Apparent Power (VA)	5000
