Description

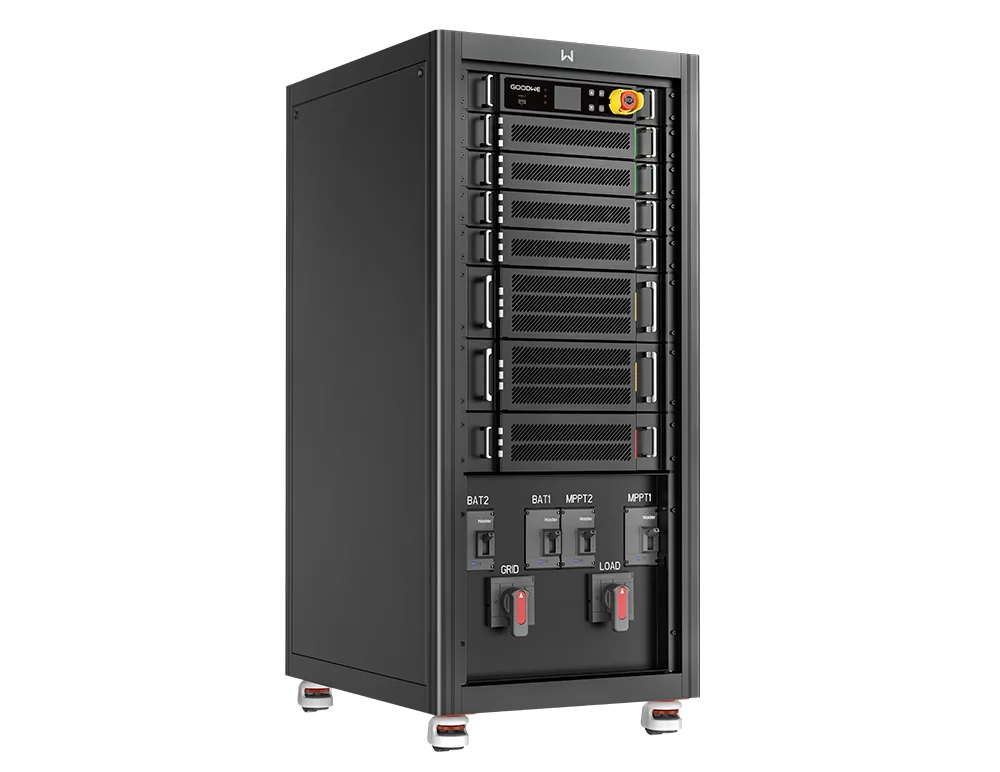

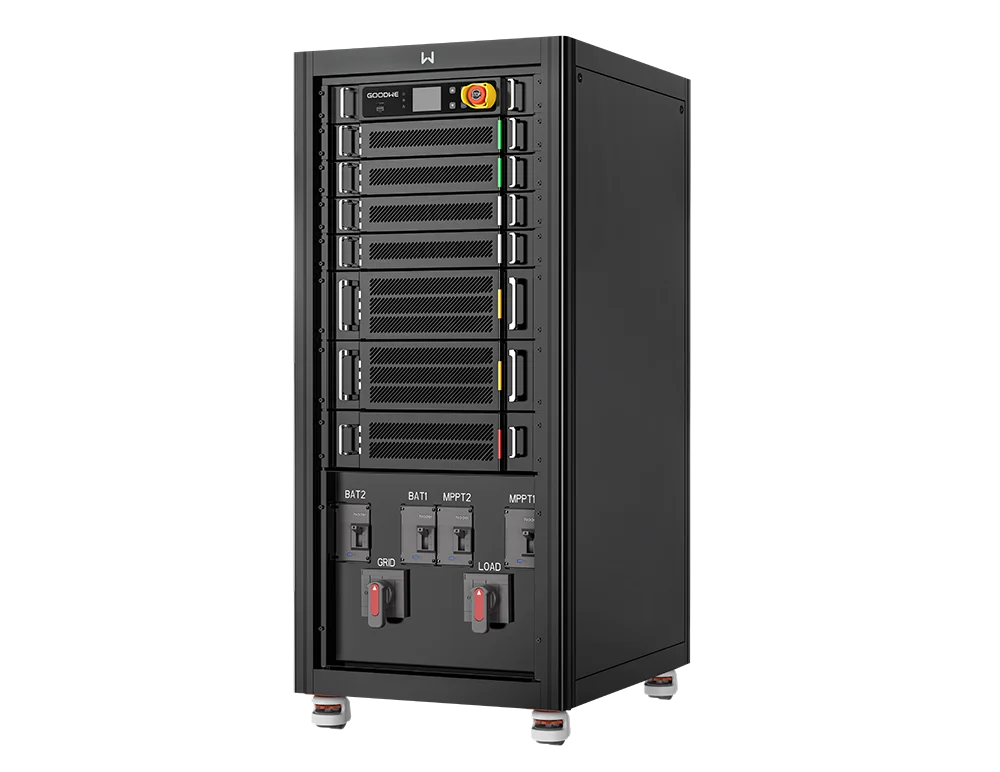

The GoodWe ETC Series is a three phase hybrid inverter rated 50 or 100kW with 1 or 2 MPPTs, offering a modular plug and play design with DC/DC and DC/AC.
Key Features
- Amazing flexibility for energy harvest: 100% unbalanced output increases load flexibility, extends application scenarios, and maximizes self-consumption ratios. The powerful 110% continuous AC overload capacity guarantees robust energy supply in backup mode.
- System stability and safety guaranteed: With the ability to make a smart UPS-level switching in less than 10 ms, an uninterruptible power supply is always operational for critical loads. The lightning protection on both AC and DC sides prevents voltage peaks from destroying connected devices and secures system reliability.
Technical Specifications
GW50K06-ETC
| Battery Voltage Range (V) | 200~865 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 100/100 |
| Max. Input Current per MPPT (A) | 100 |
| Max. Apparent Power Output to Utility Grid (VA) | 55000 |
| Max. Output Apparent Power (Back-up) (VA) | 55000 |
GW100K06-ETC
| Battery Voltage Range (V) | 200~865 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 100/100 |
| Max. Input Current per MPPT (A) | 100 |
| Max. Apparent Power Output to Utility Grid (VA) | 110000 |
| Max. Output Apparent Power (Back-up) (VA) | 110000 |
GW100K07-ETC
| Battery Voltage Range (V) | 200~865 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 100/100 |
| Max. Input Current per MPPT (A) | 100 |
| Max. Apparent Power Output to Utility Grid (VA) | 110000 |
| Max. Output Apparent Power (Back-up) (VA) | 110000 |
GW50K07-ETC
| Battery Voltage Range (V) | 200~865 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 100/100 |
| Max. Input Current per MPPT (A) | 100 |
| Max. Apparent Power Output to Utility Grid (VA) | 55000 |
| Max. Output Apparent Power (Back-up) (VA) | 55000 |
