Description

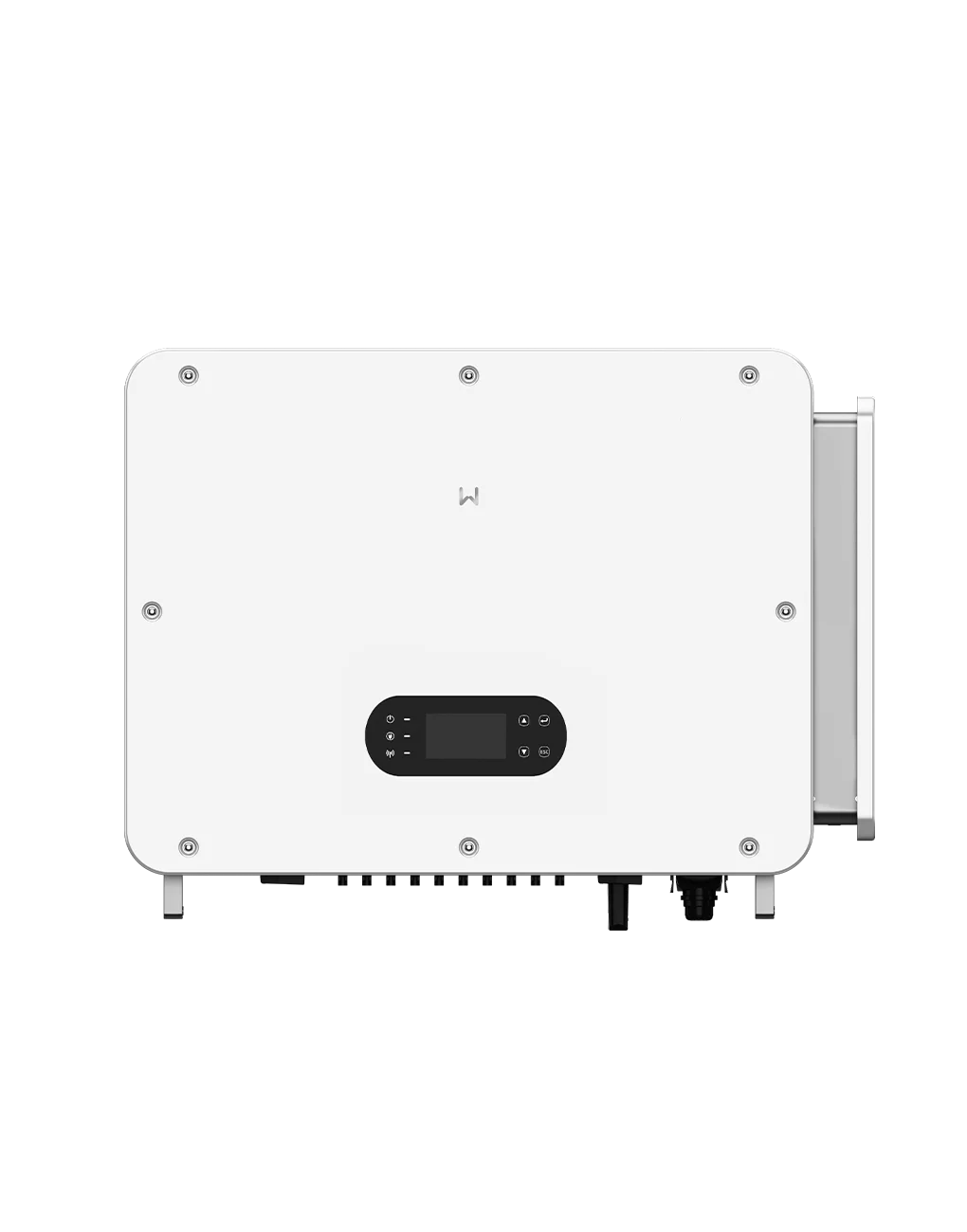

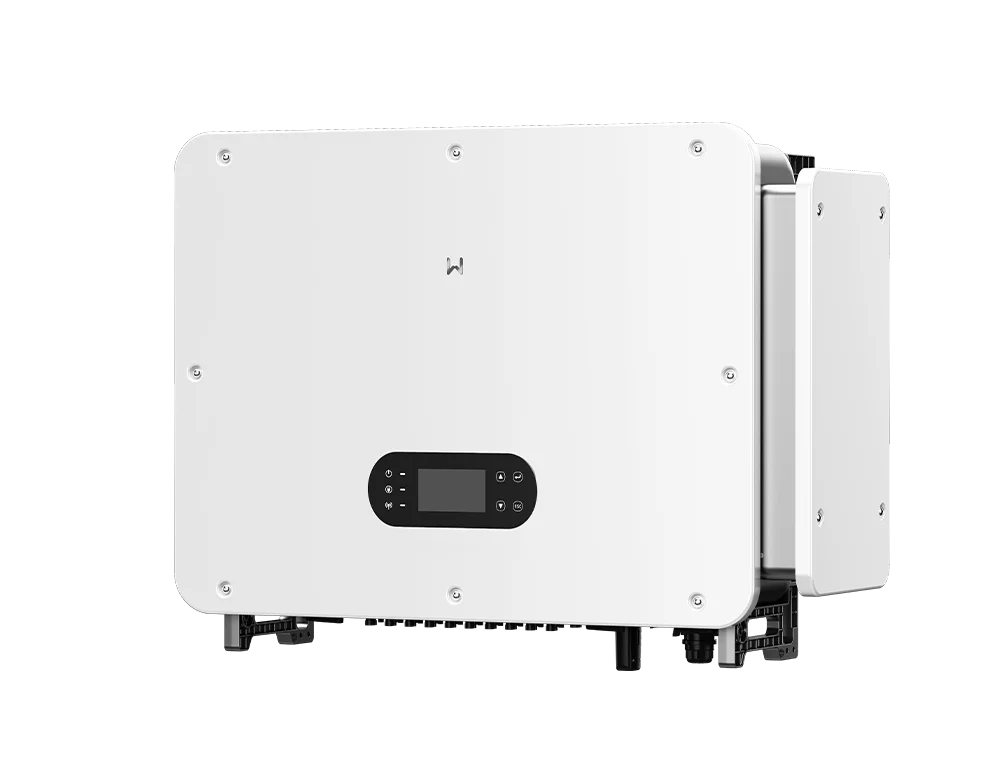

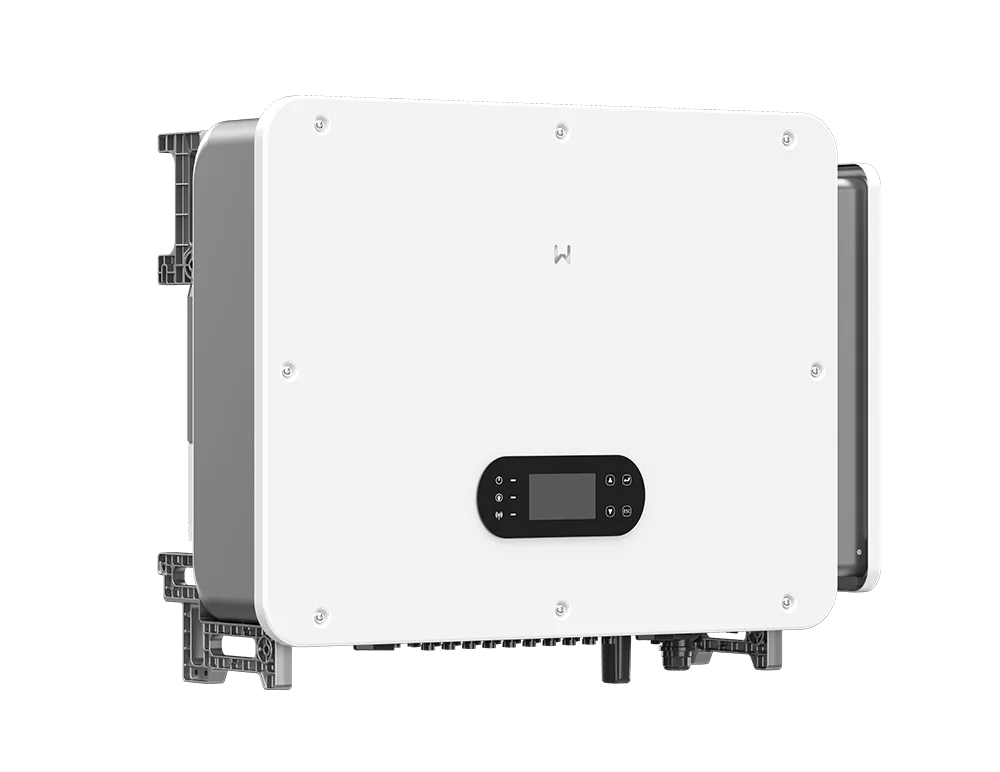

The GoodWe ETR Series is a three phase high voltage hybrid inverter rated 50 to 125kW, offering IP66 protection and quiet operation below 60 decibels.

Key Features

• Reliable Power Backbone for Modern C&I Energy: ETR is designed to provide a stable and efficient energy foundation for commercial and industrial users, combining solar generation and future storage capability in one integrated platform.
• Flexible Energy Transition from PV to Storage: Enables a smooth transition from solar-only operation to full energy storage systems, helping businesses optimize investment timing and long-term energy planning.

Technical Specifications

GW125K-ETR-G10

Battery Voltage Range (V)	700 ~ 1000
Max. Continuous Charging / Discharging Current (A)	180.0
Max. MPPT Current (A)	42
Max. AC Apparent Power (kVA)	137.5
Back-up Nominal Apparent Power (kVA)	125.0

GW124.99K-ETR-G10

Battery Voltage Range (V)	700 ~ 1000
Max. Continuous Charging / Discharging Current (A)	178.5
Max. MPPT Current (A)	42
Max. AC Apparent Power (kVA)	124.99
Back-up Nominal Apparent Power (kVA)	124.99

GW110K-ETR-G10

Battery Voltage Range (V)	700 ~ 1000
Max. Continuous Charging / Discharging Current (A)	172.8
Max. MPPT Current (A)	42
Max. AC Apparent Power (kVA)	121.0
Back-up Nominal Apparent Power (kVA)	110.0

GW100K-ETR-G10

Battery Voltage Range (V)	700 ~ 1000
Max. Continuous Charging / Discharging Current (A)	157.1
Max. MPPT Current (A)	42
Max. AC Apparent Power (kVA)	110.0
Back-up Nominal Apparent Power (kVA)	100.0

GW99.99K-ETR-G10

Battery Voltage Range (V)	700 ~ 1000
Max. Continuous Charging / Discharging Current (A)	142.8
Max. MPPT Current (A)	42
Max. AC Apparent Power (kVA)	99.99
Back-up Nominal Apparent Power (kVA)	99.99

GW80K-ETR-G10

Battery Voltage Range (V)	700 ~ 1000
Max. Continuous Charging / Discharging Current (A)	125.7
Max. MPPT Current (A)	42
Max. AC Apparent Power (kVA)	88.0
Back-up Nominal Apparent Power (kVA)	80.0

GW75K-ETR-G10

Battery Voltage Range (V)	700 ~ 1000
Max. Continuous Charging / Discharging Current (A)	107.1
Max. MPPT Current (A)	42
Max. AC Apparent Power (kVA)	75.0
Back-up Nominal Apparent Power (kVA)	75.0

GW75K-ETR-L-G10

Battery Voltage Range (V)	440 ~ 700
Max. Continuous Charging / Discharging Current (A)	170.4
Max. MPPT Current (A)	42
Max. AC Apparent Power (kVA)	75.0
Back-up Nominal Apparent Power (kVA)	75.0

GW50K-ETR-L-G10

Battery Voltage Range (V)	440 ~ 700
Max. Continuous Charging / Discharging Current (A)	113.6
Max. MPPT Current (A)	42
Max. AC Apparent Power (kVA)	50.0
Back-up Nominal Apparent Power (kVA)	50.0
