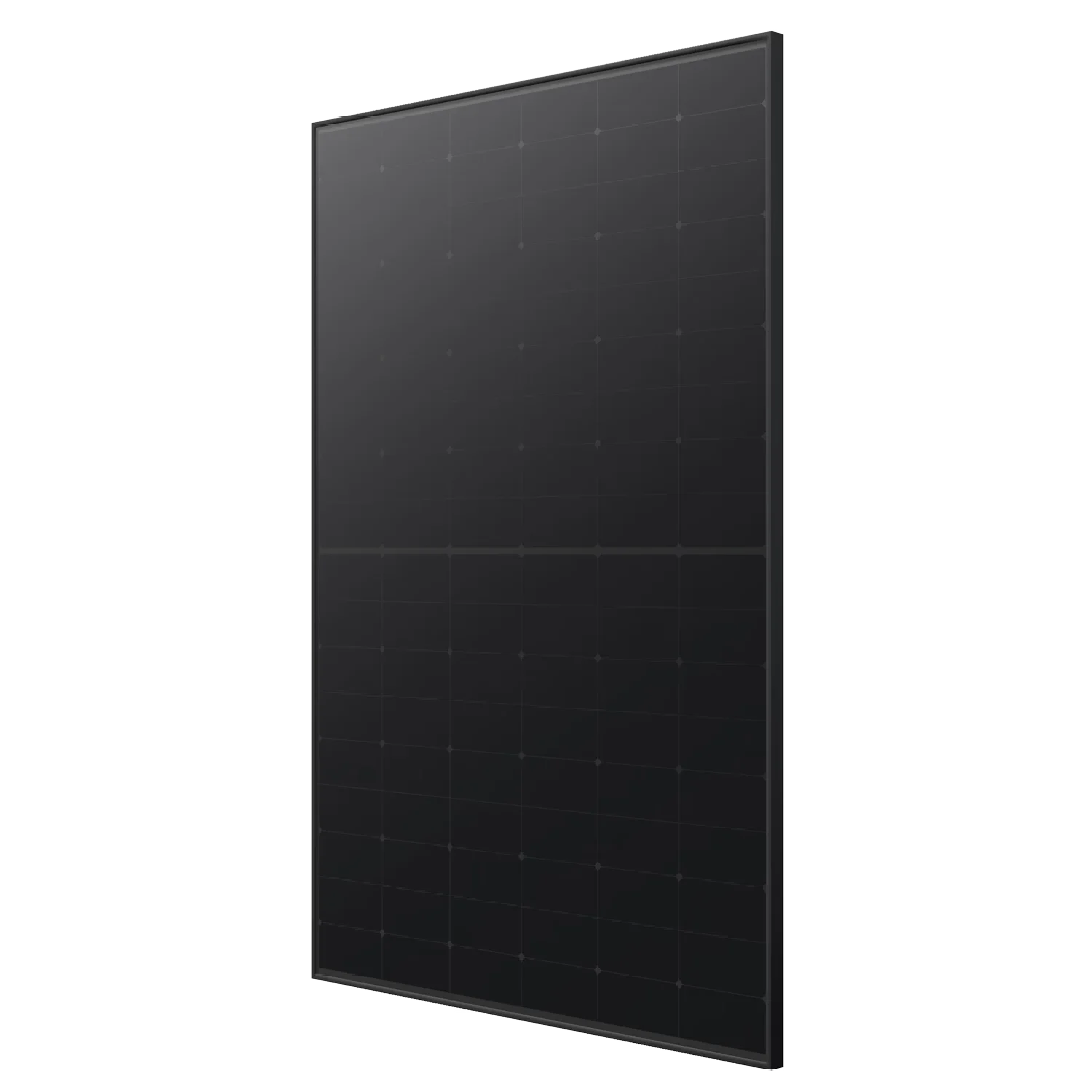

Description
Pioneering full back welding technology, this series effectively enhances resistance to microcracking in modules. It simplifies complexity and redefines the aesthetic standards of photovoltaic modules.
Technical Specifications
Electrical Characteristics
| Module Type |
LR5-72HTH-585M |
| Testing Condition |
STC / NOCT |
| Maximum Power (Pmax/W) |
585 / 437 |
| Open Circuit Voltage (Voc/V) |
52.36 / 49.16 |
| Short Circuit Current (Isc/A) |
14.27 / 11.52 |
| Voltage at Maximum Power (Vmp/V) |
44.21 / 40.34 |
| Current at Maximum Power (Imp/A) |
13.24 / 10.84 |
| Module Efficiency (%) |
22.6 |
Operating Parameters
| Operational Temperature |
-40â ~ +85â |
| Power Output Tolerance |
0 ~ 3% |
| Voc and Isc Tolerance |
±3% |
| Maximum System Voltage |
DC1500V (IEC/UL) |
| Maximum Series Fuse Rating |
25A |
| Nominal Operating Cell Temperature |
45±2°C |
| Protection Class |
Class II |
| Fire Rating |
UL type 1 or 2 IEC Class C |
Mechanical Parameters
| Cell Orientation |
144 (6Ã24) |

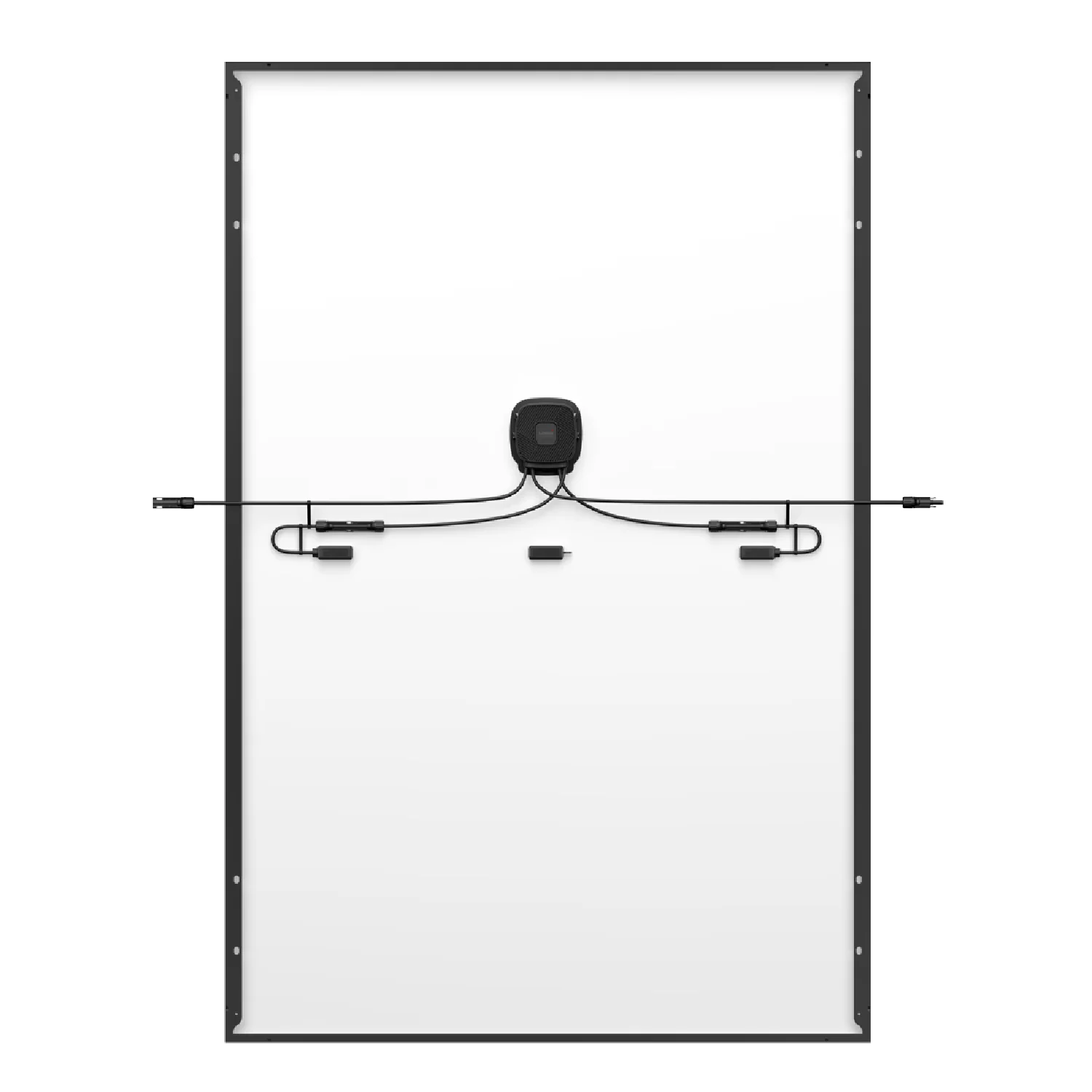

| Junction Box |
IP68 |
| Output Cable |
4mm 2 , +400, -200mm/±1400mm length
can be customized |
| Glass |
Single glass, 3.2mm coated tempered glass |
| Frame |
Anodized aluminum alloy frame |
| Weight |
27.5kg |
| Dimension |
2278Ã1134Ã35mm |
| Packaging |
31pcs per pallet / 155pcs per 20âGP / 620pcs per
40âHC |
Mechanical Loading
| Front Side Maximum Static Loading |
5400Pa |
| Rear Side Maximum Static Loading |
2400Pa |
| Hailstone Test |
25mm Hailstone at the speed of 23m/s |
Temperature Ratings (STC)
| Temperature Coefficient of Isc |
+0.050%/â |
| Temperature Coefficient of Voc |
-0.230%/â |
| Temperature Coefficient of Pmax |
-0.290%/â |
