Description

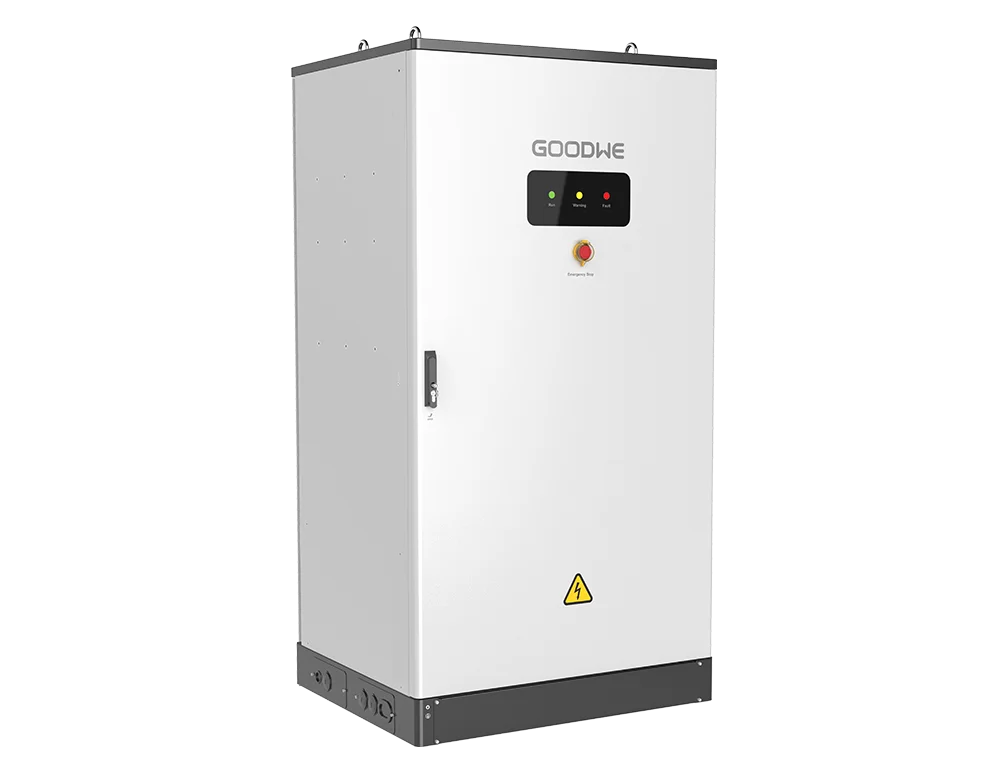

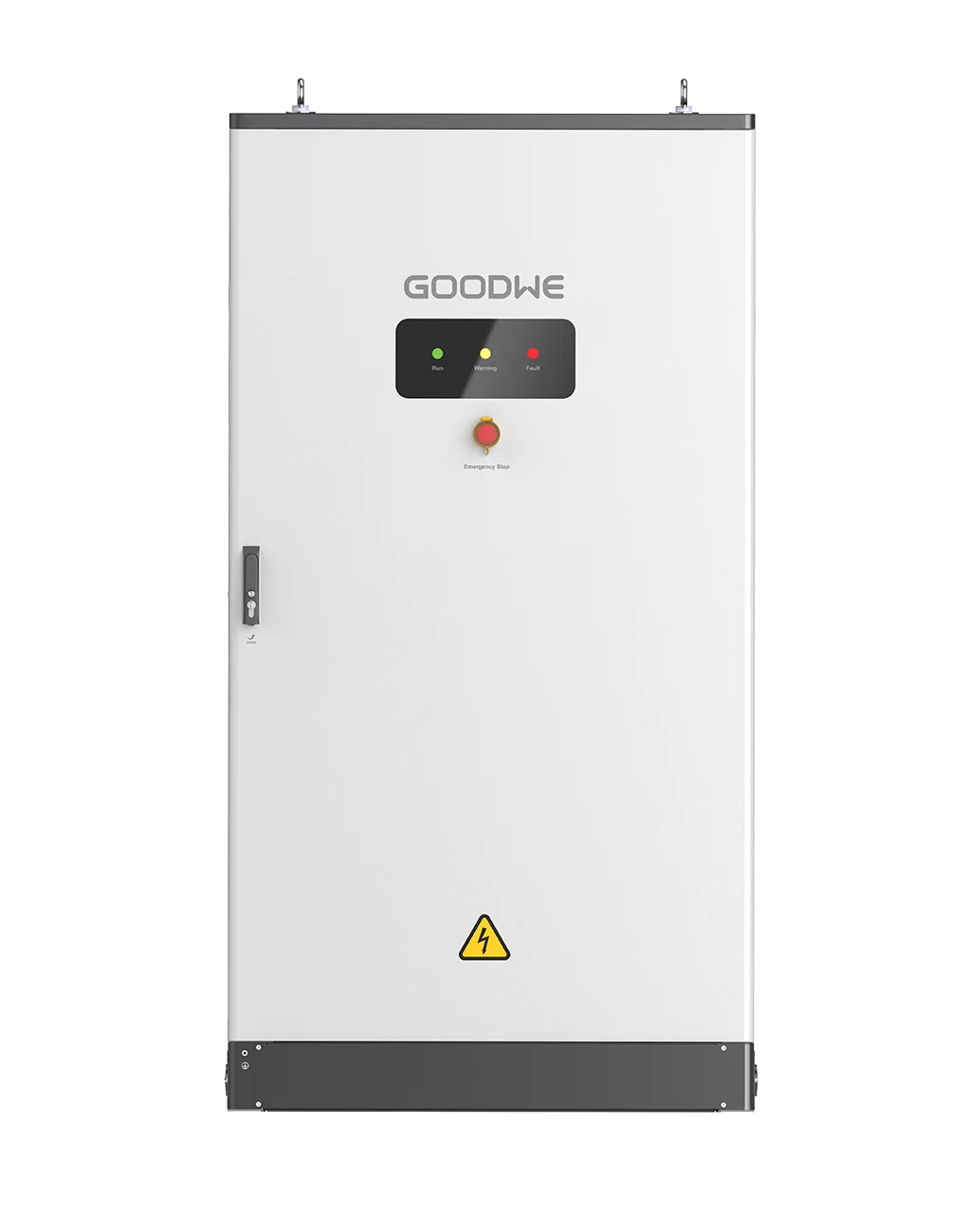

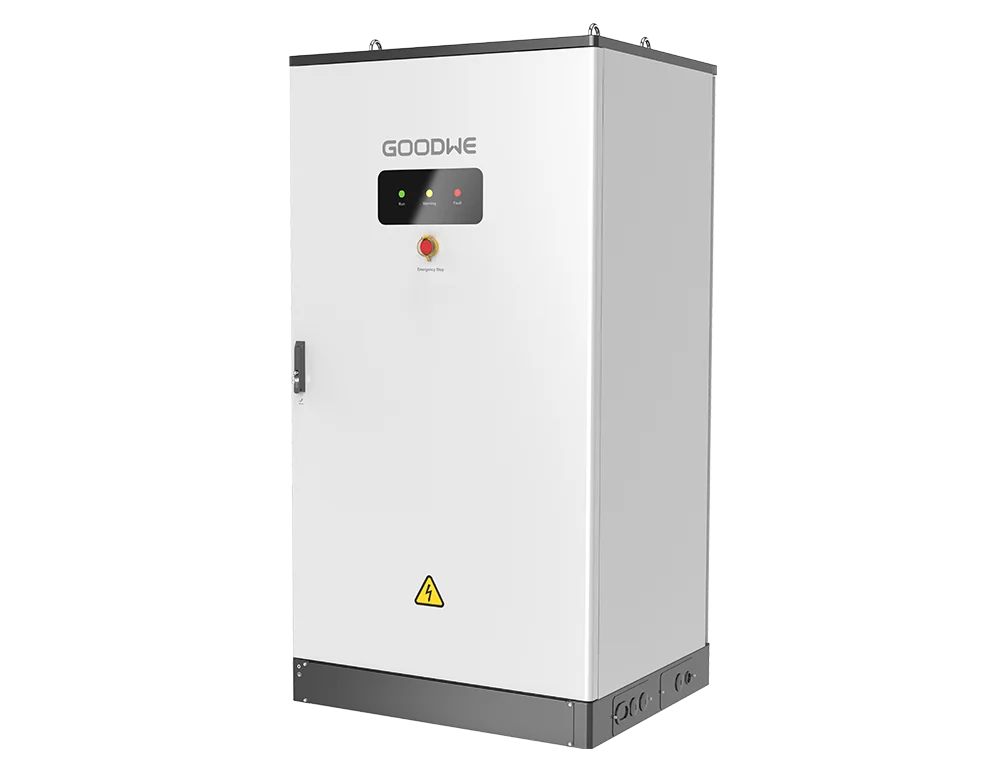

The GoodWe BAT-C Series (60-112kWh) is a commercial and industrial LiFePO4 battery system with IP55 protection for reliable outdoor energy storage today.
Key Features
- Superb Safety & Reliability: The BAT-C battery is built on reliable LFP technology, offering high cycle stability for long-lasting performance. Safety is enhanced through pack-level humidity monitoring with automatic dehumidification, ensuring optimal internal conditions. In addition, an aerosol-based fire suppression system provides fast-acting protection at both the pack and cabinet levels, delivering multi-layered safety across the entire system.
- Smart Control & Monitoring: Designed for dynamic energy needs, the BAT-C battery supports continuous charging at up to 0.9C and discharging at 1.1C, enabling fast energy response. With support for up to 4 units in parallel, the system scales effortlessly to 450kWh, making it ideal for a wide range of commercial and industrial applications.
Technical Specifications
GW61.4-BAT-AC-G10
| Usable Energy (kWh) | 60 |
|---|---|
| Nominal Voltage (V) | 307.2 |
| Max. Charge / Disharge Current (A) | 180 / 220 |
| Fire Safety Equipment | Aerosol (Pack & Cabinet Level) |
| Ingress Protection Rating | IP55 |
GW102.4-BAT-AC-G10
| Usable Energy (kWh) | 100 |
|---|---|
| Nominal Voltage (V) | 512.0 |
| Max. Charge / Disharge Current (A) | 180 / 220 |
| Fire Safety Equipment | Aerosol (Pack & Cabinet Level) |
| Ingress Protection Rating | IP55 |
GW112.6-BAT-AC-G10
| Usable Energy (kWh) | 110 |
|---|---|
| Nominal Voltage (V) | 563.2 |
| Max. Charge / Disharge Current (A) | 180 / 220 |
| Fire Safety Equipment | Aerosol (Pack & Cabinet Level) |
| Ingress Protection Rating | IP55 |
