Description

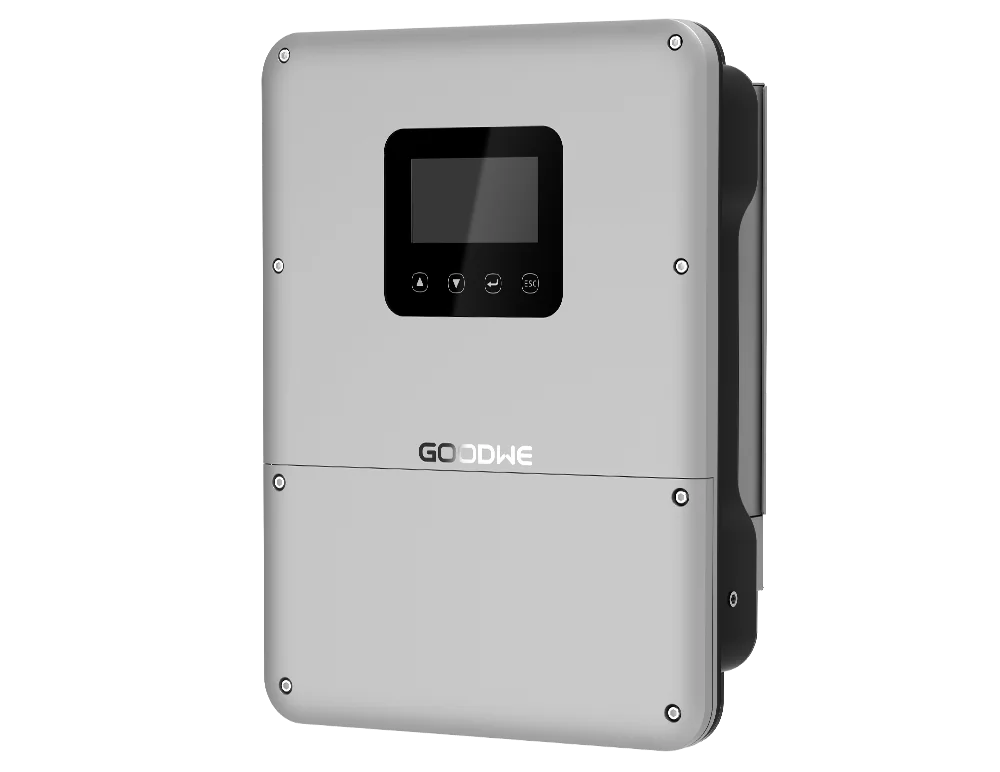

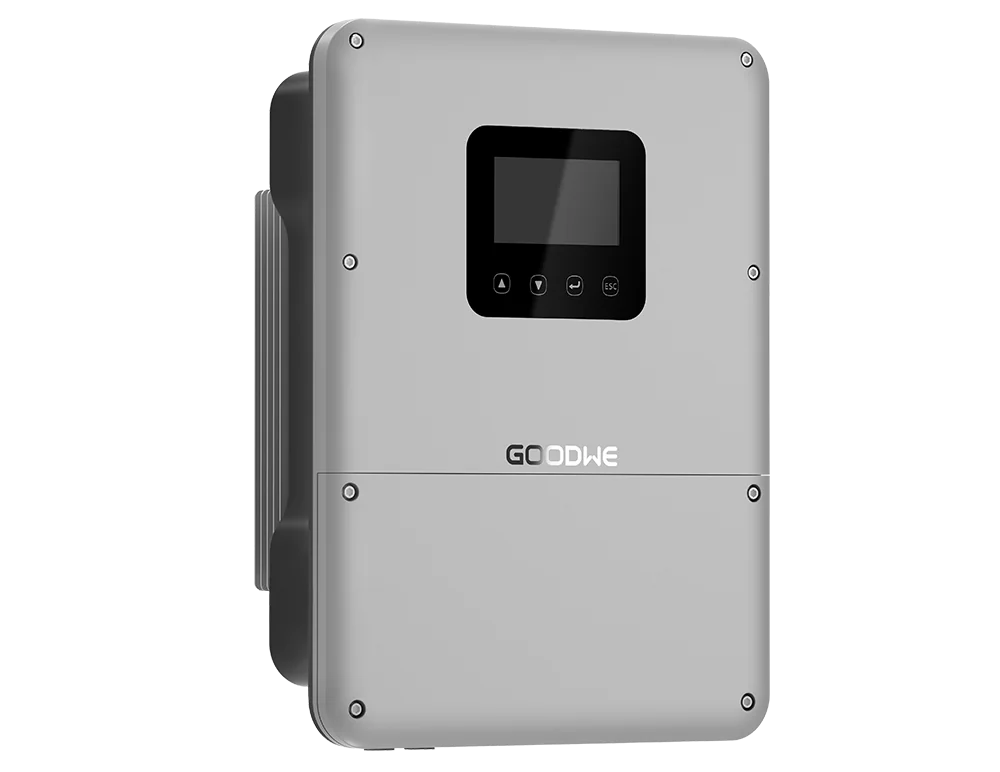

The GoodWe EO G2 Series is a single phase off grid inverter rated 3 to 6kW with 1 or 2 MPPTs, offering IP66 protection and up to 98.6 percent efficiency.
Key Features
- High Efficiency, Made Affordable: Maximize energy harvest with up to 200% DC oversizing and scale your system with 10 units parallel operation. It also allows 3 single-phase units to form a three-phase system, adapting to diverse off-grid needs
- High Protection, Made Durability: With IP66 protection, the EO G2 is built to withstand harsh outdoor conditions, while Type III AC/DC surge protection safeguards against voltage spikes, ensuring long-term reliability for off-grid applications.
Technical Specifications
GW6K-EO-G20
| Battery Voltage Range (V) | 40~60 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 130 / 130 |
| Max. MPPT Current (A) | 21 / 21 |
| Max. Apparent Power from Grid (kVA) | 8 |
| Nominal Output Voltage (V) | 220 / 230, L / N / PE |
GW5K-EO-G20
| Battery Voltage Range (V) | 40~60 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 120 / 120 |
| Max. MPPT Current (A) | 21 / 21 |
| Max. Apparent Power from Grid (kVA) | 8 |
| Nominal Output Voltage (V) | 220 / 230, L / N / PE |
GW3.6K-EO-G20
| Battery Voltage Range (V) | 40~60 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 90 / 90 |
| Max. MPPT Current (A) | 21 |
| Max. Apparent Power from Grid (kVA) | 8 |
| Nominal Output Voltage (V) | 220 / 230, L / N / PE |
GW3K-EO-G20
| Battery Voltage Range (V) | 40~60 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 70 / 70 |
| Max. MPPT Current (A) | 21 |
| Max. Apparent Power from Grid (kVA) | 8 |
| Nominal Output Voltage (V) | 220 / 230, L / N / PE |
