Description

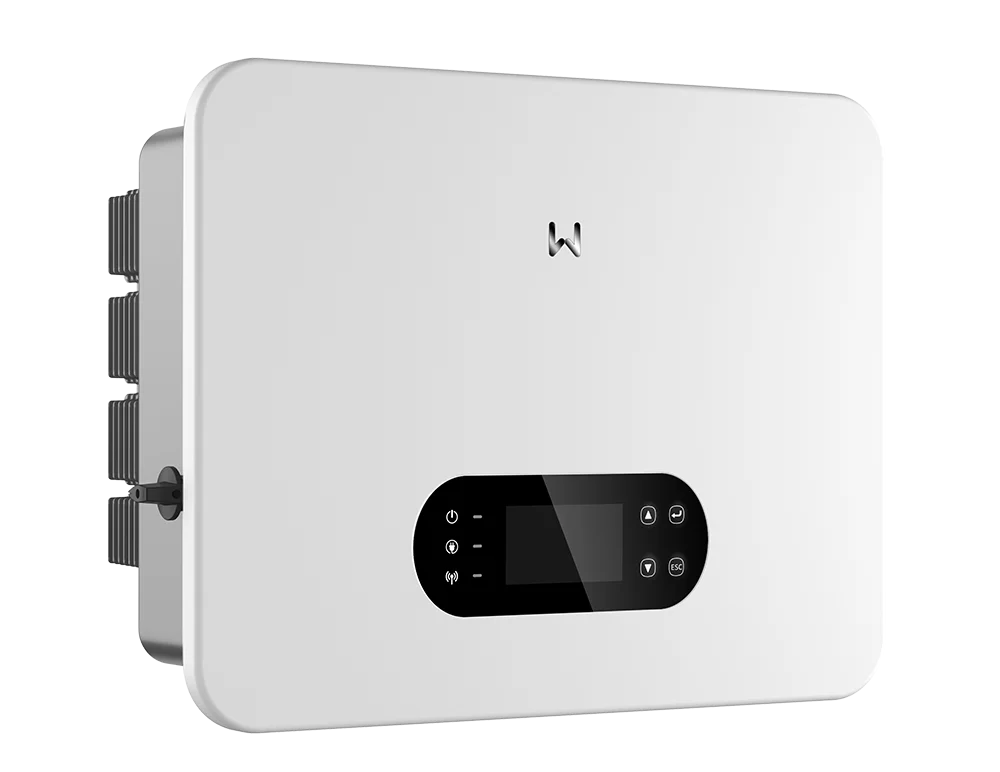

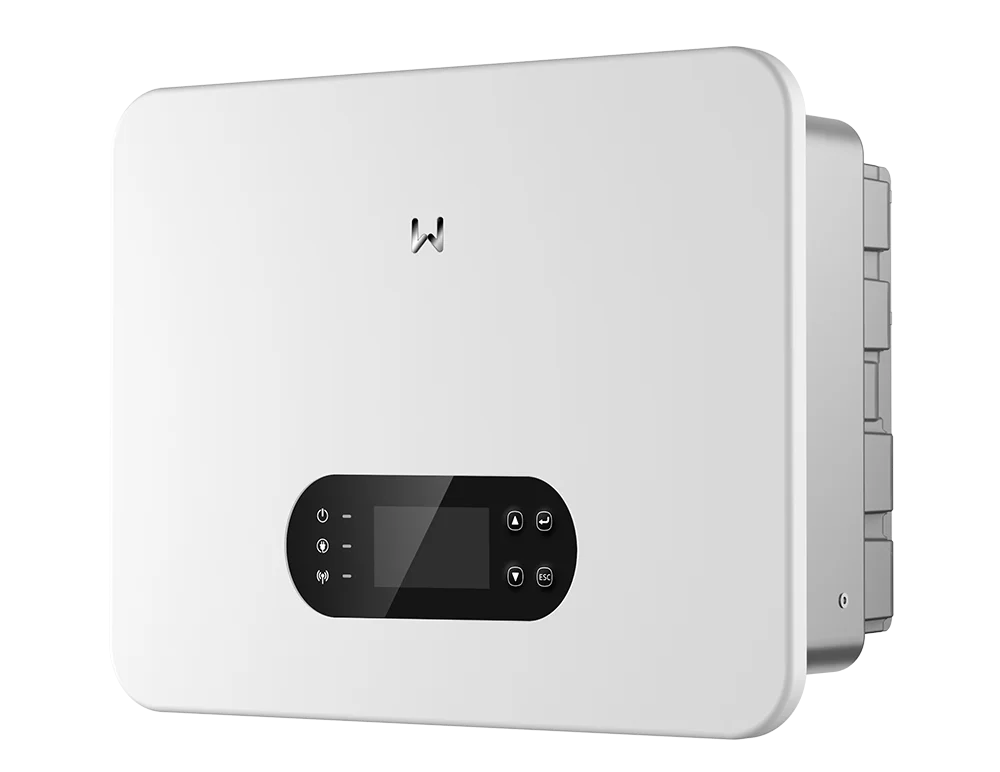

The GoodWe ES LD Series is a split and two phase hybrid inverter rated 5 to 10kW with 2 MPPTs, offering microgrid support and IP66 protection for homes.
Key Features
- Reliable Backup Power, Always Ready: With seamless switching in under 4ms and full compatibility with generators—including battery charging support—the ES LD ensures your essential loads stay powered without interruption, even during outages.
- High Performance and Adaptable Applications: With 20A per string, 200% PV oversizing, and 220A continuous charge/discharge, the ES LD ensures high-performance solar integration while offering adaptable operation—supporting on/off-grid parallel setups and two & split phase output options available to meet diverse household needs.
Technical Specifications
GW10K-ES-LD-G10
| Battery Voltage Range (V) | 40 ~ 60 |
|---|---|
| Max. Continuous Charging / Discharging Current (A) | 220 / 220 |
| Max. Input Current per MPPT (A) | 40 / 40 |
| Max. Apparent Power Output to Utility Grid (VA) | 10000 |
| Back-up Nominal Apparent Power (VA) | 10000 |
GW7.5K-ES-LD-G10
| Battery Voltage Range (V) | 40 ~ 60 |
|---|---|
| Max. Continuous Charging / Discharging Current (A) | 165 / 165 |
| Max. Input Current per MPPT (A) | 40 / 20 |
| Max. Apparent Power Output to Utility Grid (VA) | 7500 |
| Back-up Nominal Apparent Power (VA) | 7500 |
GW5K-ES-LD-G10
| Battery Voltage Range (V) | 40 ~ 60 |
|---|---|
| Max. Continuous Charging / Discharging Current (A) | 120 / 120 |
| Max. Input Current per MPPT (A) | 20 / 20 |
| Max. Apparent Power Output to Utility Grid (VA) | 5000 |
| Back-up Nominal Apparent Power (VA) | 5000 |
