Description

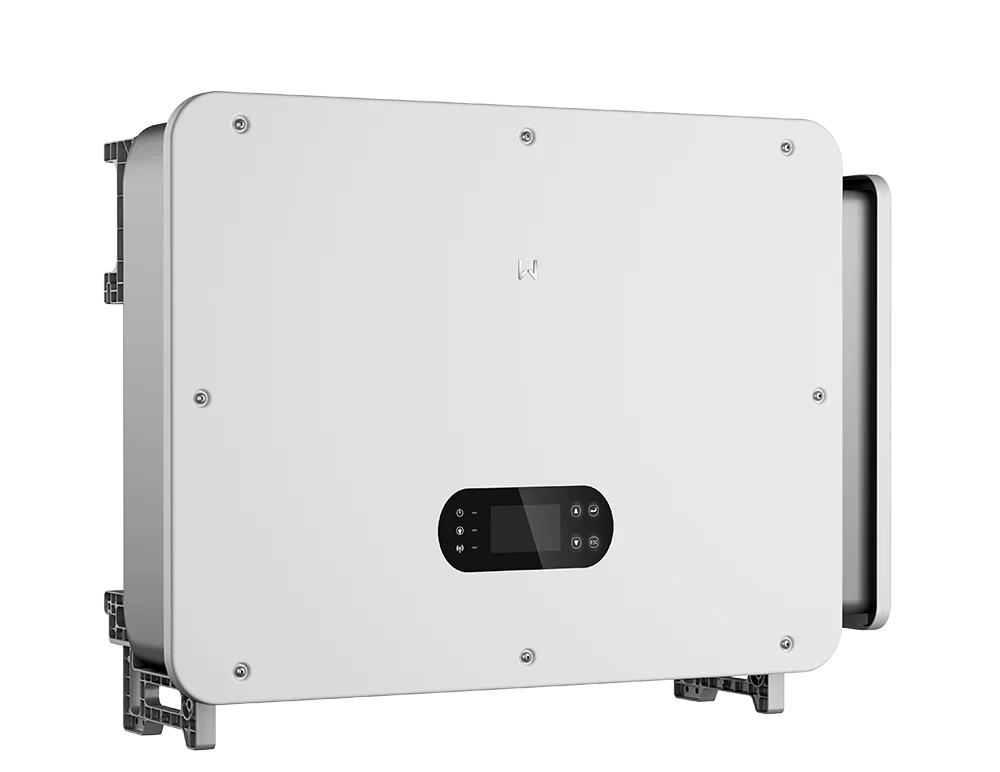

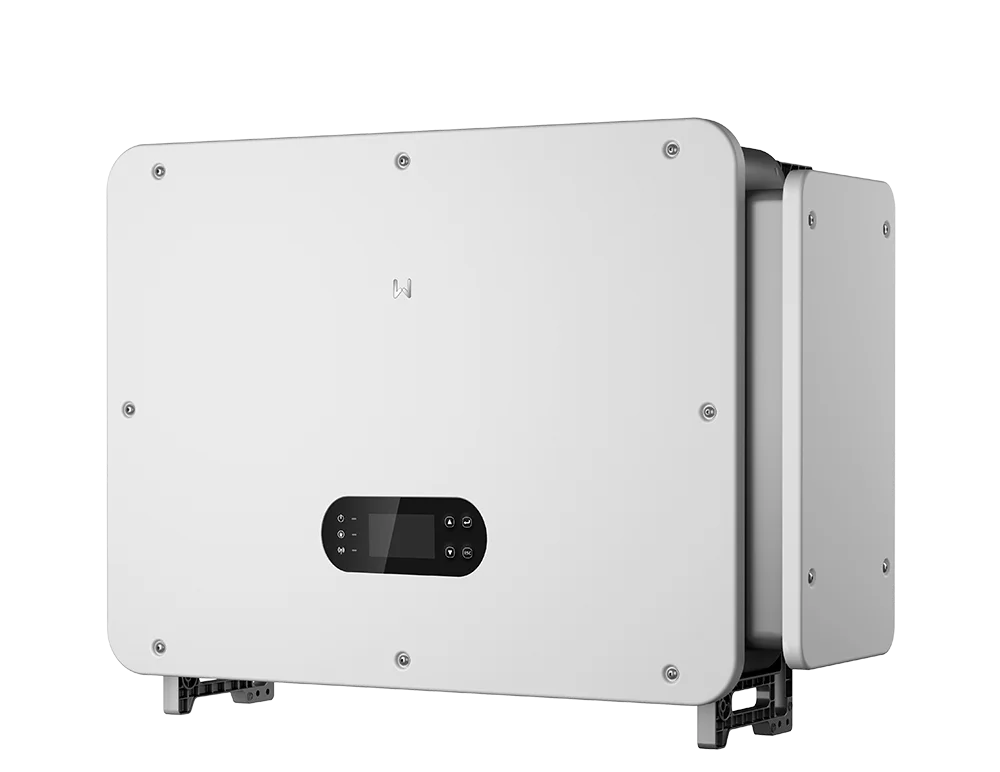

The GoodWe ET Series (75-100kW) is a three phase high voltage hybrid inverter with 8 MPPTs, offering IP66 protection and 21A input current for large sites.
Key Features
- Superb Safety & Reliability: UPS-level switching in less than 10 ms ensures uninterrupted power for critical loads during grid outages. Smart temperature sensing on AC and PV connectors provides real-time thermal monitoring for early fault prevention. Optional Type I+II SPD offers surge protection, while Smart DC Circuit Breaker and AFCI enable precise fault detection and rapid response, delivering multi-layered safety for reliable system operation.
- Optimized Performance & Flexible Applications: Featuring 8 MPPTs, 200% PV oversizing, and up to 21 A per string, the system delivers excellent power generation performance. It supports 110% unbalanced load and 150% AC overloading for 10 seconds, enhancing adaptability and power supply stability in real C&I scenarios, while DC coupling ensures higher efficiency and a simpler system architecture. Dual independent battery inputs allow flexible configuration with up to 220 A, while generator cont
Technical Specifications
GW100K-ET-G10
| Battery Voltage Range (V) | 300 ~ 800 |
|---|---|
| Max. Continuous Charging / Discharging Current (A) | 110 × 2 |
| Max. Input Current per MPPT (A) | 42 |
| Max. Apparent Power Output to Utility Grid (kVA) | 110 |
| Back-up Nominal Apparent Power (kVA) | 100 |
GW99.99K-ET-G10
| Battery Voltage Range (V) | 300 ~ 800 |
|---|---|
| Max. Continuous Charging / Discharging Current (A) | 110 × 2 |
| Max. Input Current per MPPT (A) | 42 |
| Max. Apparent Power Output to Utility Grid (kVA) | 99.99 |
| Back-up Nominal Apparent Power (kVA) | 99.99 |
GW80K-ET-G10
| Battery Voltage Range (V) | 300 ~ 800 |
|---|---|
| Max. Continuous Charging / Discharging Current (A) | 100 × 2 |
| Max. Input Current per MPPT (A) | 42 |
| Max. Apparent Power Output to Utility Grid (kVA) | 88 |
| Back-up Nominal Apparent Power (kVA) | 80 |
GW75K-ET-G10
| Battery Voltage Range (V) | 300 ~ 800 |
|---|---|
| Max. Continuous Charging / Discharging Current (A) | 85 × 2 |
| Max. Input Current per MPPT (A) | 42 |
| Max. Apparent Power Output to Utility Grid (kVA) | 75 |
| Back-up Nominal Apparent Power (kVA) | 75 |
