Description

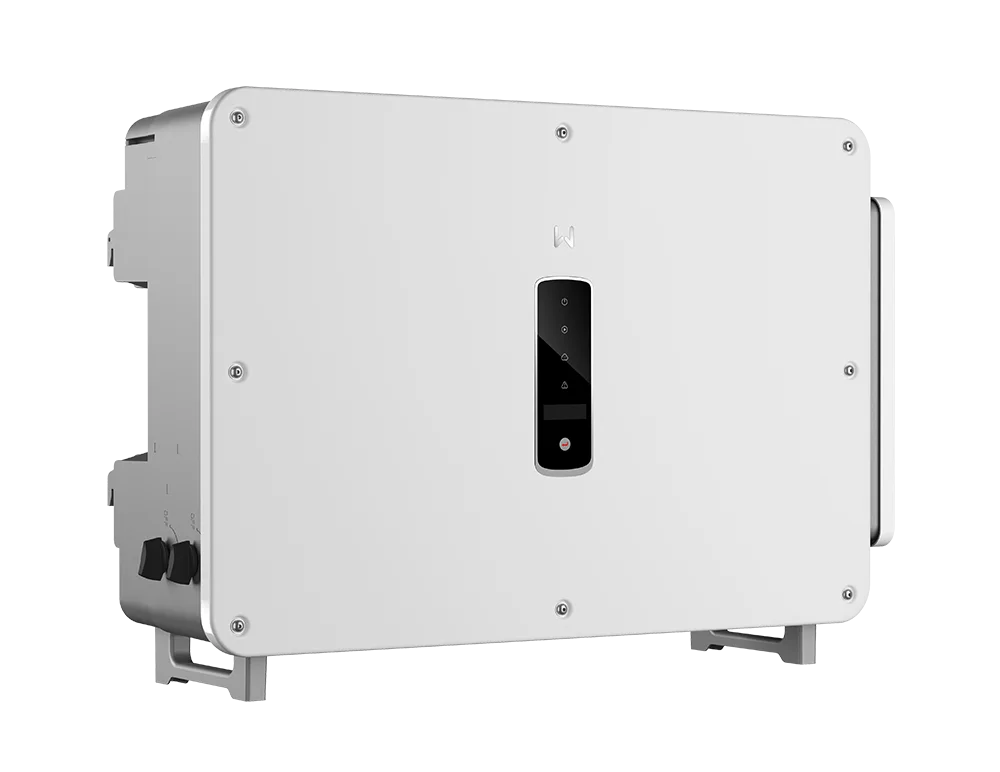

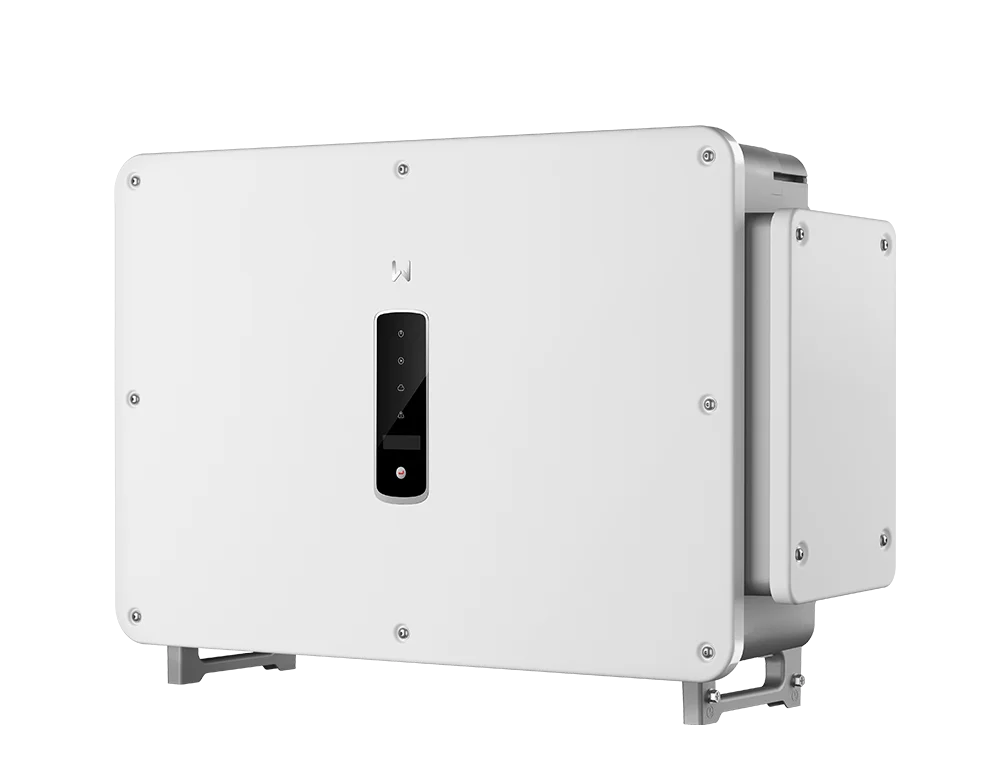

The GT Series string inverter is an ideal choice for commercial and industrial (C&I) applications to enhance productivity and realize high power density.
Key Features
- Superb Safety & Reliability: Equipped with IP66 and C5 protection, GT Series endures harsh environments for stable performance throughout its life cycle. Both the DC side and AC side are equipped with Type II surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system.
- Optimal Generation for Higher Return: With the compatibility with bi-facial modules and maximum 21A DC input current per string, GT can deliver comprehensive commercial energy yields for increased ROI.
Technical Specifications
GW75K-GT-LV-G10
| Max. Input Voltage (V): | 800 |
|---|---|
| Max. Input Current per MPPT (A): | 42 |
| Number of MPP trackers/Number of Strings per MPPT: | 8 / 2 |
| Max. Efficiency : | 98.8% |
| Nominal Output Voltage (V) : | 127 / 220, 3L / N / PE or 3L / PE |
GW125K-GT
| Max. Input Voltage (V): | 1100 |
|---|---|
| Max. Input Current per MPPT (A): | 42 |
| Number of MPP trackers/Number of Strings per MPPT: | 10 / 2 |
| Max. Efficiency : | 99.0% |
| Nominal Output Voltage (V) : | 220 / 380, 230 / 400, 277 / 480, 3L / N / PE or 3L / PE |
GW110K-GT
| Max. Input Voltage (V): | 1100 |
|---|---|
| Max. Input Current per MPPT (A): | 42 |
| Number of MPP trackers/Number of Strings per MPPT: | 10 / 2 |
| Max. Efficiency : | 98.8% |
| Nominal Output Voltage (V) : | 220 / 380, 230 / 400, 277 / 480, 3L / N / PE or 3L / PE |
GW100K-GT
| Max. Input Voltage (V): | 1100 |
|---|---|
| Max. Input Current per MPPT (A): | 42 |
| Number of MPP trackers/Number of Strings per MPPT: | 8 / 2 |
| Max. Efficiency : | 98.8% |
| Nominal Output Voltage (V) : | 220 / 380, 230 / 400, 277 / 480, 3L / N / PE or 3L / PE |
