Description

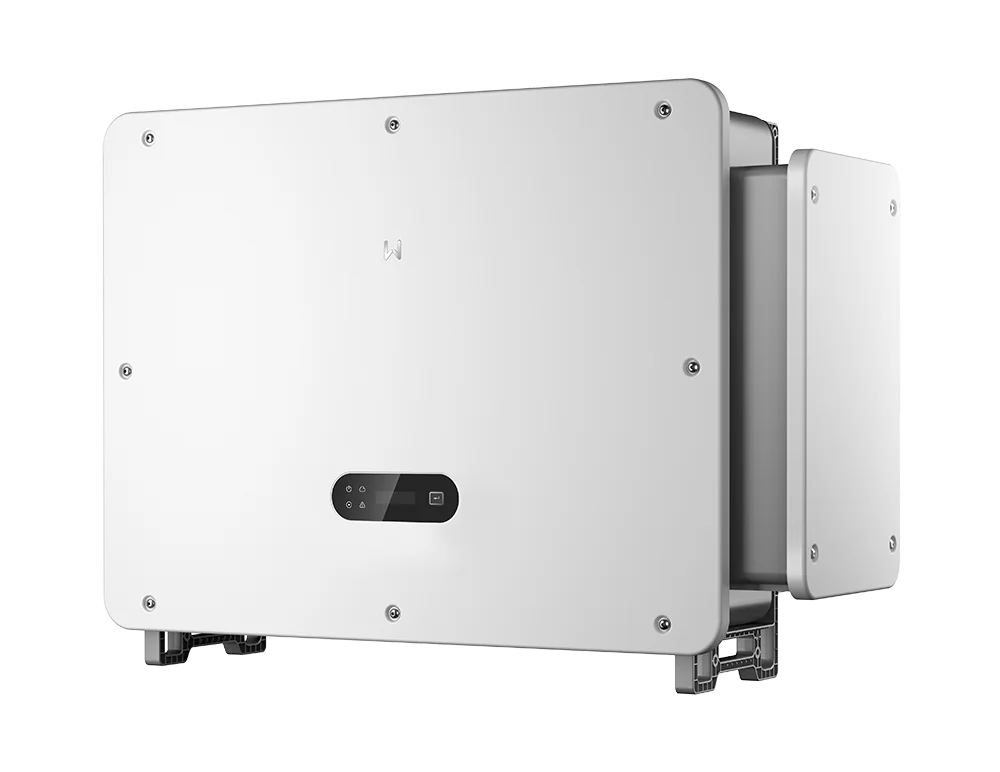

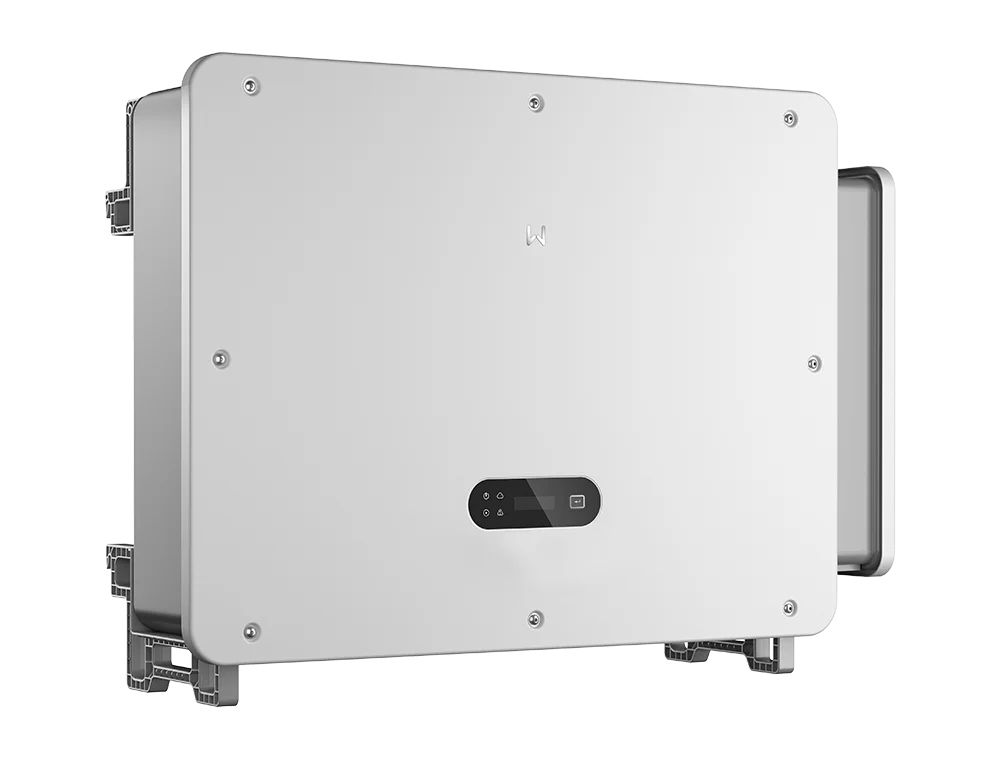

The GoodWe GT Series is a three phase commercial solar inverter rated 100 to 125kW with 8 or 10 MPPTs, offering 21A input current and IP66 protection.
Key Features
- Superb Safety & Reliability: Enhanced safety is achieved through the synergy of a DC smart circuit breaker and temperature detection on both AC & DC sides, while optional AI-driven AFCI 3.0 further reduces fire risk by detecting and interrupting arc faults, protecting people and assets.
- Smart Control & Monitoring: Users can enjoy smart energy management with 24/7 load consumption monitoring, smart fan self-cleaning that reverses airflow to remove dust, and Online Insulation Resistance Monitoring—reducing maintenance and improving uptime.
Technical Specifications
GW100K-GT-L-G10
| Max. Input Voltage (V): | 900 |
|---|---|
| Max. Input Current per MPPT (A): | 42 |
| Number of MPP trackers/Number of Strings per MPPT: | 10 / 2 |
| Max. Efficiency : | 98.8% |
| Nominal Output Voltage (V) : | 127 / 220V, 133 / 230V, 3L / N / PE or 3L / PE |
GW150K-GT-G10
| Max. Input Voltage (V): | 1100 |
|---|---|
| Max. Input Current per MPPT (A): | 42 |
| Number of MPP trackers/Number of Strings per MPPT: | 10 / 2 |
| Max. Efficiency : | 99.0% |
| Nominal Output Voltage (V) : | 220 / 380, 230 / 400, 240 / 415, 3L / N / PE or 3L / PE |
