Description

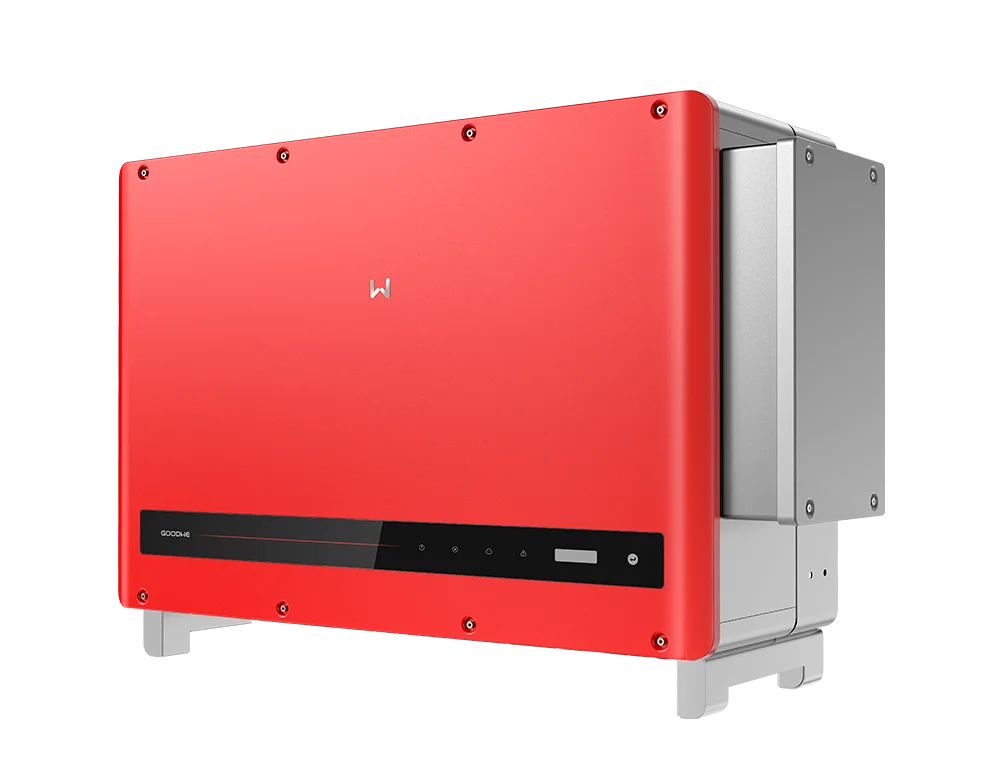

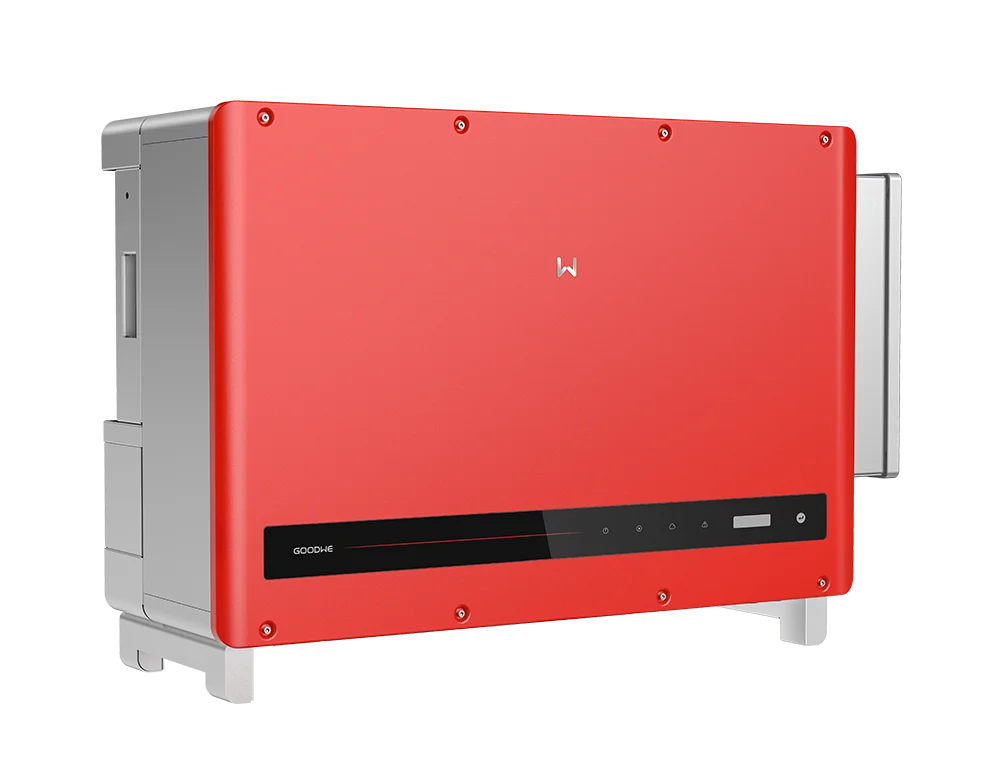

The HT Series 73-120 kW inverter is ideal for C&I and small utility projects, can achieve higher savings in the installation, and enhance productivity.
Key Features
- Superb Safety & Reliability: Equipped with IP66 and C5 protection, HT 73-120kW Series endures harsh environements for stable performance throughout its life cycle. Both the DC side and AC side are equipped with Type II surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system.
- Optimal Generation for Higher Return: With the compatibility with bi-facial modules and maximum 15A DC input current per string, HT can deliver comprehensive commercial energy yields for increased ROI.
Technical Specifications
GW73KLV-HT
| Max. Input Voltage (V): | 800 |
|---|---|
| Max. Input Current per MPPT (A): | 30 |
| Number of MPP trackers/Number of Strings per MPPT: | 12/2 |
| Max. Efficiency : | 98.4% |
| Nominal Output Voltage (V) : | 220, 3L/N/PE or 3L/PE |
GW75K-HT
| Max. Input Voltage (V): | 1100 |
|---|---|
| Max. Input Current per MPPT (A): | 30 |
| Number of MPP trackers/Number of Strings per MPPT: | 10/2 |
| Max. Efficiency : | 98.6% |
| Nominal Output Voltage (V) : | 380/400, 3L/N/PE or 3L/PE |
GW80K-HT
| Max. Input Voltage (V): | 1100 |
|---|---|
| Max. Input Current per MPPT (A): | 30 |
| Number of MPP trackers/Number of Strings per MPPT: | 10/2 |
| Max. Efficiency : | 98.6% |
| Nominal Output Voltage (V) : | 380/400, 3L/N/PE or 3L/PE |
GW100K-HT
| Max. Input Voltage (V): | 1100 |
|---|---|
| Max. Input Current per MPPT (A): | 30 |
| Number of MPP trackers/Number of Strings per MPPT: | 10/2 |
| Max. Efficiency : | 98.6% |
| Nominal Output Voltage (V) : | 400, 3L/N/PE or 3L/PE |
GW110K-HT
| Max. Input Voltage (V): | 1100 |
|---|---|
| Max. Input Current per MPPT (A): | 30 |
| Number of MPP trackers/Number of Strings per MPPT: | 12/2 |
| Max. Efficiency : | 98.6% |
| Nominal Output Voltage (V) : | 400, 3L/N/PE or 3L/PE |
GW120K-HT
| Max. Input Voltage (V): | 1100 |
|---|---|
| Max. Input Current per MPPT (A): | 30 |
| Number of MPP trackers/Number of Strings per MPPT: | 12/2 |
| Max. Efficiency : | 98.6% |
| Nominal Output Voltage (V) : | 400, 3L/N/PE or 3L/PE |
