Description

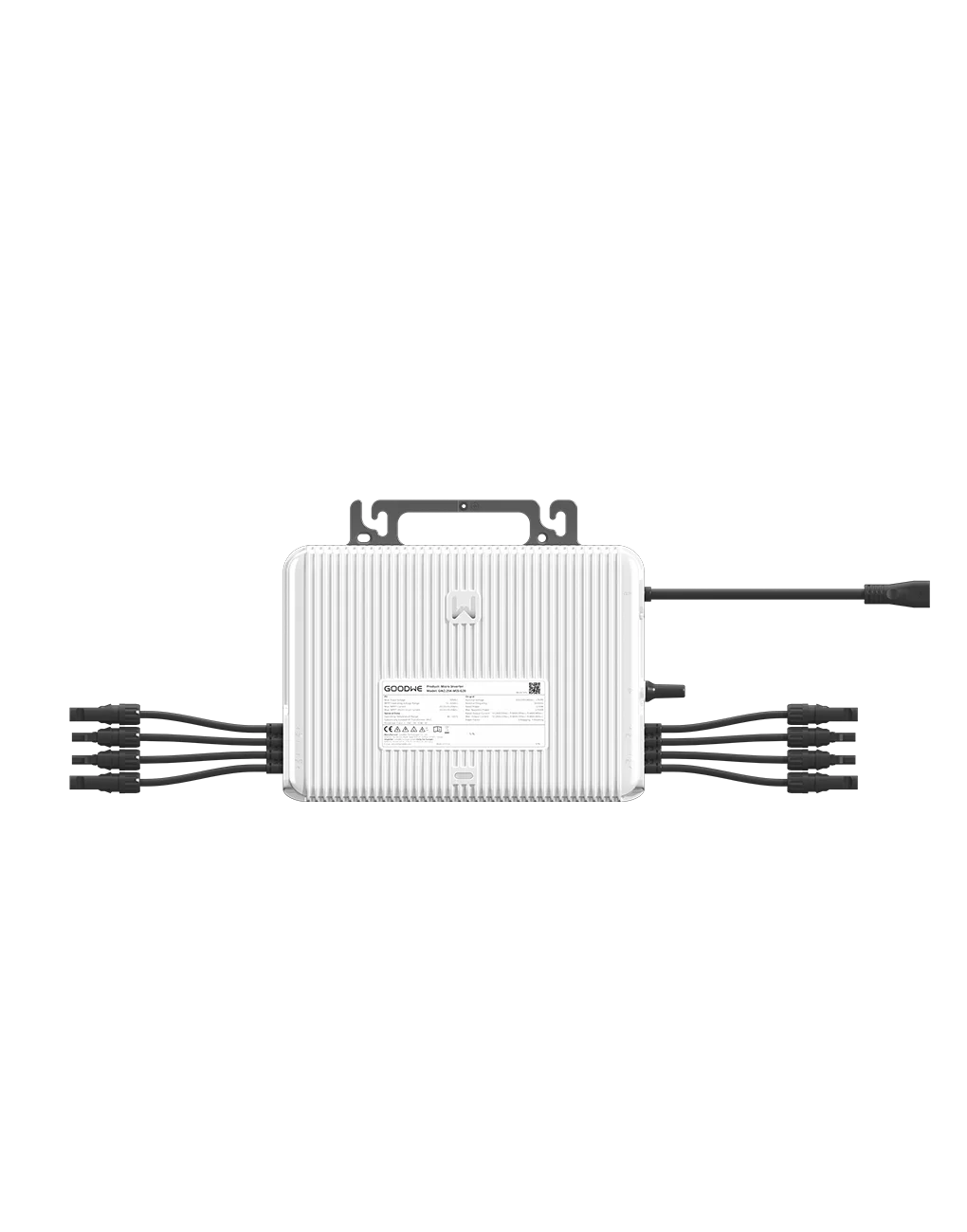

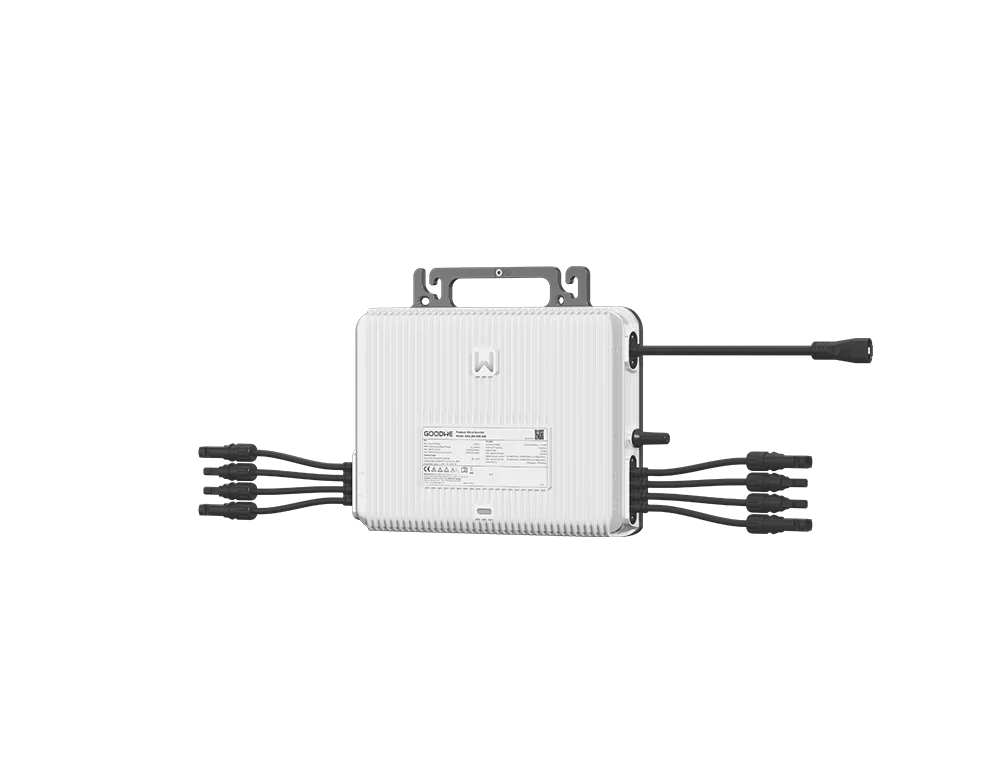

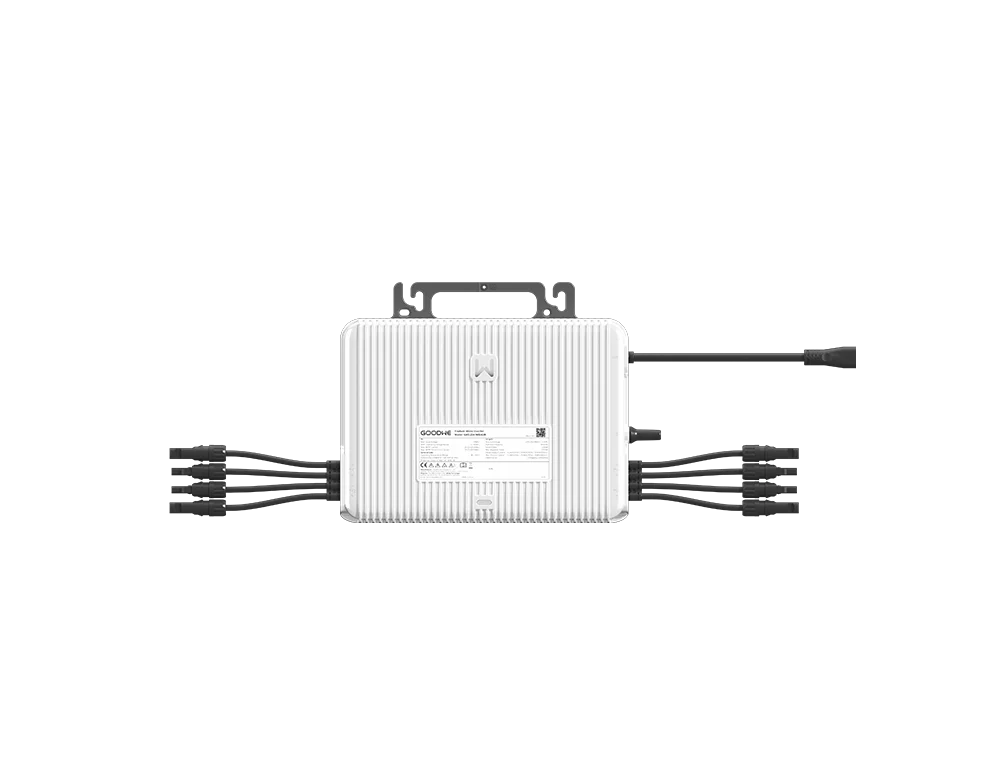

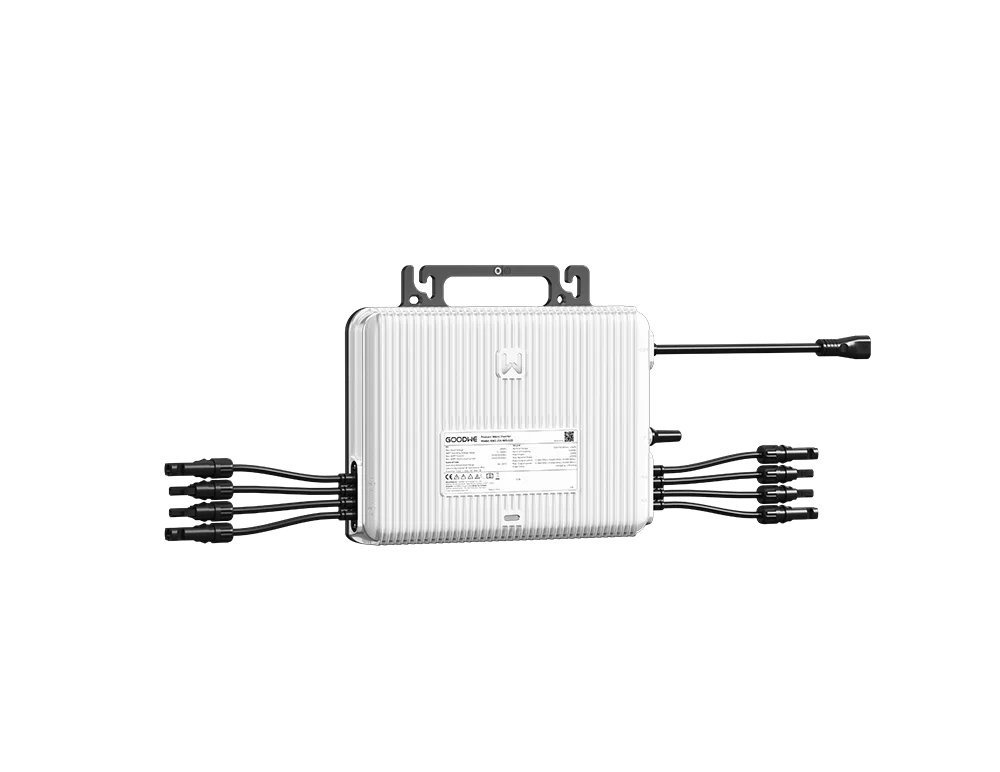

The GoodWe MIS G2 Series (4-in-1) is a Wifi Mesh microinverter with a 15 year warranty for reliable single phase solar power in homes and small businesses.
Key Features
- Maximized Energy Harvest: Designed to outperform in real-world conditions, the MIS G2 maintains 100% power output even as rooftop temperatures reach 50°C. By pairing a 20A input current with an ultra-low 12V startup voltage, the system captures maximum energy from modern high-power modules from early morning until late evening.
- Reliability Without Compromise: Featuring IP67-rated sealing and C4M-certified anti-corrosion technology, the MIS G2 is built to withstand everything from heavy rain and dust storms to the high-salinity air of coastal regions. This industrial-grade protection ensures a long, maintenance-free service life in the harshest environments.
- Smart Control & Monitoring: Advanced Wi-Fi Mesh technology eliminates the need for traditional communication hardware, reducing system cost and complexity. By enabling seamless interconnection for up to 25 units, the MIS G2 delivers stable and scalable connectivity, making energy management smarter and more intuitive for any project size.
Technical Specifications
GW2.5K-MIS-G20
| Max. Input Voltage (V) | 60 |
|---|---|
| Max. Input Current per MPPT (A) | 20 |
| Number of MPP Trackers/Number of Strings per MPPT | 4/1 |
| Weight (kg) | ≤5.1 |
| Ingress Protection Rating | IP67 |
GW2.25K-MIS-G20
| Max. Input Voltage (V) | 60 |
|---|---|
| Max. Input Current per MPPT (A) | 20 |
| Number of MPP Trackers/Number of Strings per MPPT | 4/1 |
| Weight (kg) | ≤5.1 |
| Ingress Protection Rating | IP67 |
GW2K-MIS-G20
| Max. Input Voltage (V) | 60 |
|---|---|
| Max. Input Current per MPPT (A) | 20 |
| Number of MPP Trackers/Number of Strings per MPPT | 4/1 |
| Weight (kg) | ≤5.1 |
| Ingress Protection Rating | IP67 |
GW1.875K-MIS-G20
| Max. Input Voltage (V) | 60 |
|---|---|
| Max. Input Current per MPPT (A) | 20 |
| Number of MPP Trackers/Number of Strings per MPPT | 4/1 |
| Weight (kg) | ≤5.1 |
| Ingress Protection Rating | IP67 |
GW1.8K-MIS-G20
| Max. Input Voltage (V) | 60 |
|---|---|
| Max. Input Current per MPPT (A) | 20 |
| Number of MPP Trackers/Number of Strings per MPPT | 4/1 |
| Weight (kg) | ≤5.1 |
| Ingress Protection Rating | IP67 |
GW1.6K-MIS-G20
| Max. Input Voltage (V) | 60 |
|---|---|
| Max. Input Current per MPPT (A) | 20 |
| Number of MPP Trackers/Number of Strings per MPPT | 4/1 |
| Weight (kg) | ≤5.1 |
| Ingress Protection Rating | IP67 |
