Description

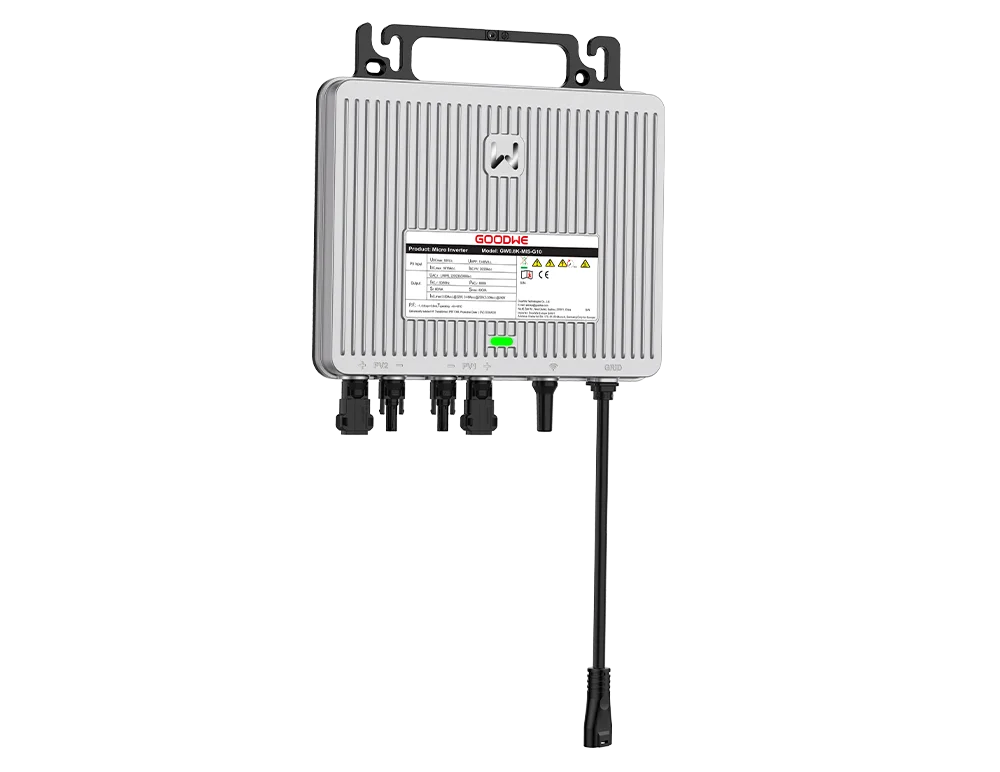

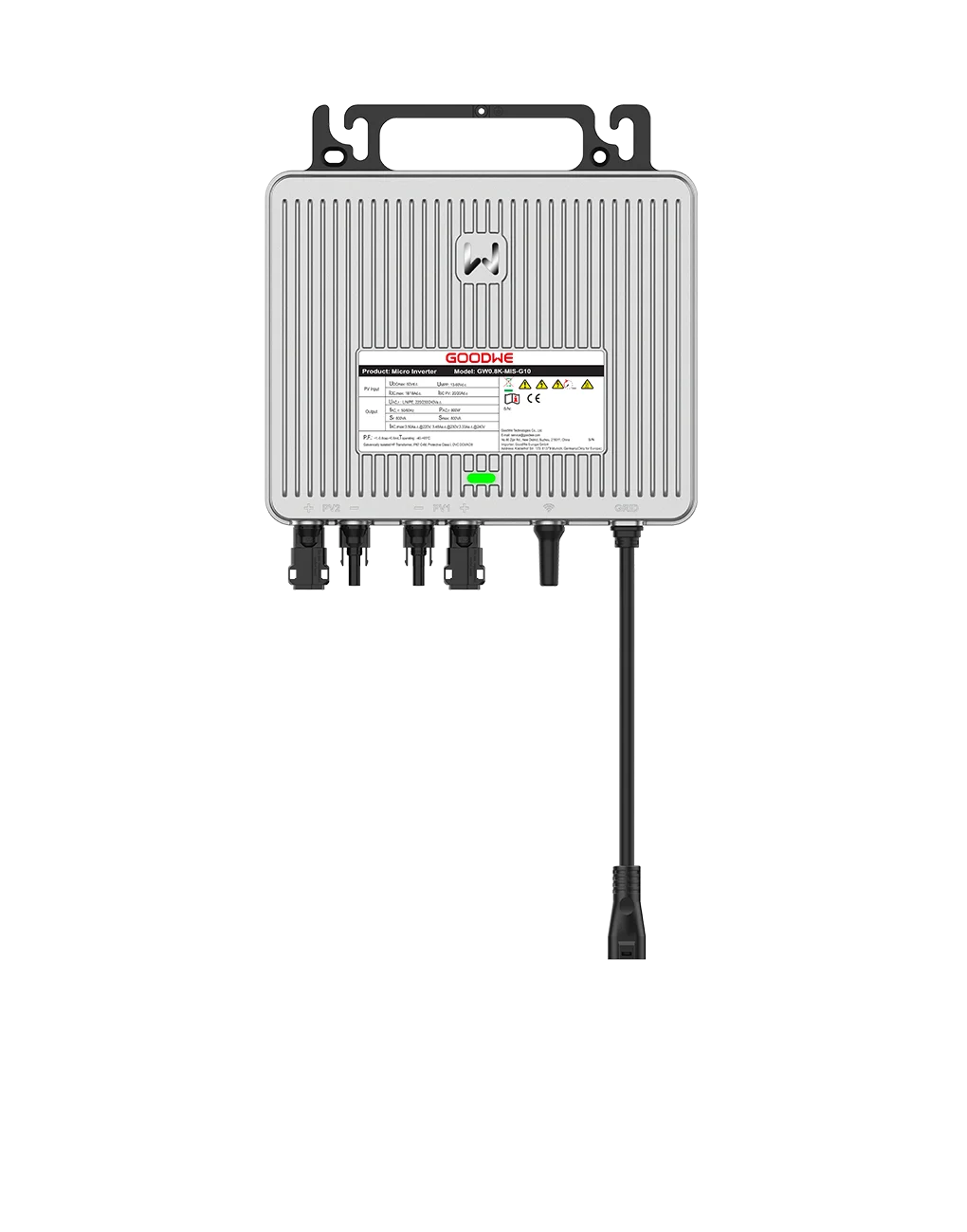

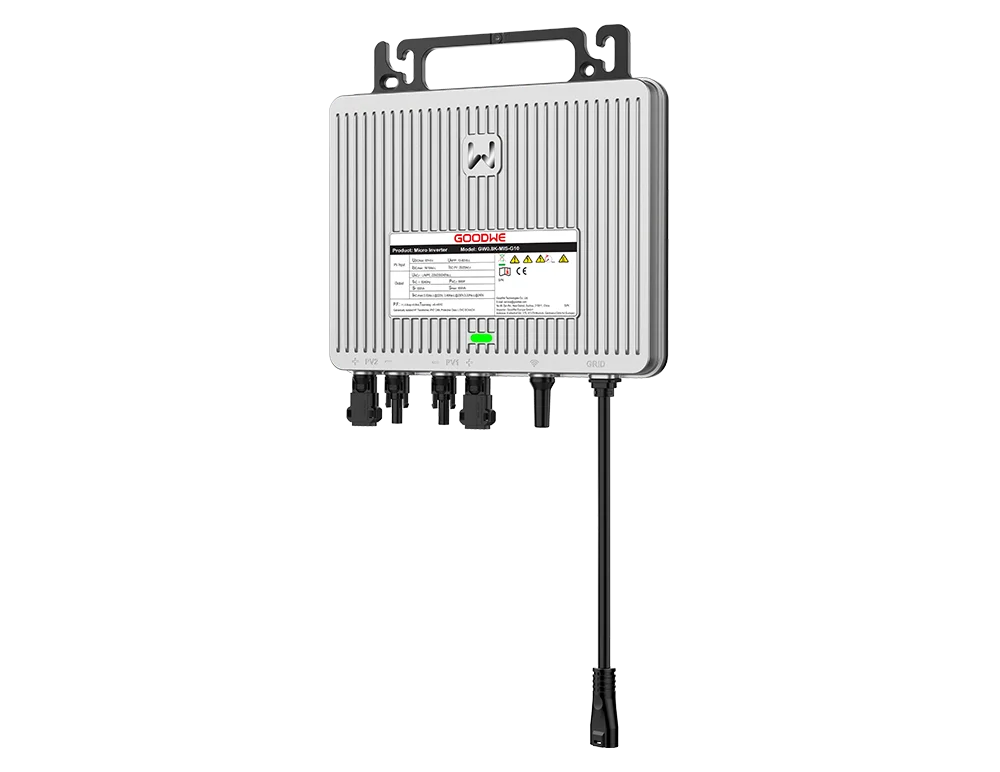

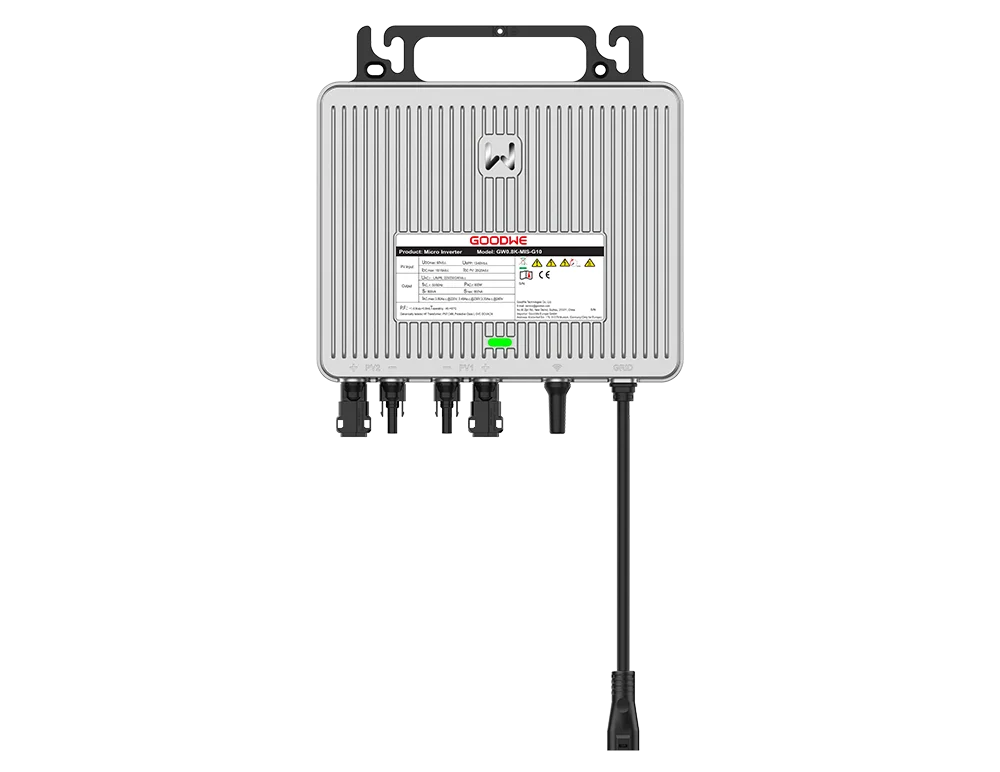

GoodWe's MIS Series (2-in-1) is a compact microinverter rated 800 or 799W, offering IP67 protection and simple plug and play installation for homes today.
Key Features
- Superb Safety & Reliability: The MIS 2-in-1 Microinverter is built with safety at its core. Its rapid shutdown function instantly powers off in emergencies, while the AC rapid discharge feature lowers the voltage to safe level within 100ms after disconnection. The AC side is reinforced with three-level lightning protection and grounding, ensuring stability even during grid disturbances. With an IP67 waterproof rating, the MIS delivers long-lasting reliability and resistance
- Optimal Performance: The MIS 2-in-1 Microinverter maximizes energy harvest in all conditions. With dual MPPT supporting up to 18A input, it delivers precise module-level tracking and adapts easily to high-power modules. Its low start-up voltage of just 15V ensures continuous power generation from sunrise to sunset, optimizing solar energy utilization under varying irradiation and weather conditions. Advanced WiFi Mesh parallel networking allows inverters to connect w
Technical Specifications
GW0.799K-MIS-G10
| Max. Input Voltage (V) | 60 |
|---|---|
| Max. Input Current (A) | 2 × 18 |
| Number of MPP Trackers/Number of Inputs per MPPT | 2 / 1 |
| Weight (kg) | 3.4 |
| Nominal Output Voltage (V) | L / N / PE, 220 / 230 / 240 |
GW0.8K-MIS-G10
| Max. Input Voltage (V) | 60 |
|---|---|
| Max. Input Current (A) | 2 × 18 |
| Number of MPP Trackers/Number of Inputs per MPPT | 2 / 1 |
| Weight (kg) | 3.4 |
| Nominal Output Voltage (V) | L / N / PE, 220 / 230 / 240 |
