Description

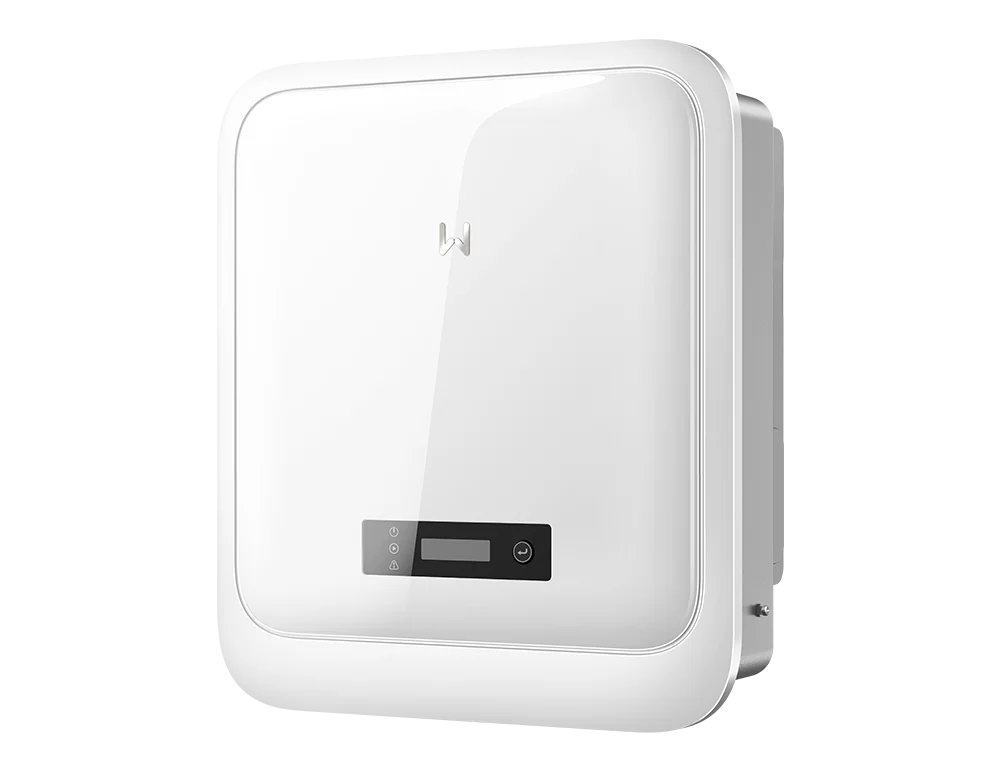

The MS G3 single-phase 5-10kW inverters offer a powerful and versatile solution for residential buildings and boast 3 MPPTs for various complex rooftops.
Key Features
- Smart Control & Monitoring: Users can enjoy smart energy management with 24-hour load consumption monitoring enabled by GoodWe HomeKit 1000 or GM10001. Dry contact in the inverter is available for various home load controls. High-power loads such as HVAC and heat pumps can be intelligently controlled through the inverter.
- Friendly & Thoughtful Design: MS G3 Series is equipped with fanless natural convection cooling to realize quiet operation for users' peace of mind. Software updates can be relatively easy and quick by using a USB. The elegant and compact design is perfect for indoor installation.
- High Power Generation: MS G3 Series is designed to achieve the maximum yield and present lower energy costs. The considerably low startup voltage of 50V means that the solar system can generate power from dawn to dusk to harness as much solar energy as possible regardless of irradiation and weather conditions. The high input current maximizes energy generation thanks to its compatibility with high-power PV modules.
Technical Specifications
GW10K-MS-30
| Max. Input Voltage (V): | 600 |
|---|---|
| Max. Input Current per MPPT (A): | 20 |
| Number of MPP trackers/Number of Strings per MPPT: | 3/1 |
| Weight (kg) : | 19 |
| Nominal Output Voltage (V) : | 220/230/240 |
GW8500-MS-30
| Max. Input Voltage (V): | 600 |
|---|---|
| Max. Input Current per MPPT (A): | 20 |
| Number of MPP trackers/Number of Strings per MPPT: | 3/1 |
| Weight (kg) : | 19 |
| Nominal Output Voltage (V) : | 220/230/240 |
GW7000-MS-30
| Max. Input Voltage (V): | 600 |
|---|---|
| Max. Input Current per MPPT (A): | 20 |
| Number of MPP trackers/Number of Strings per MPPT: | 3/1 |
| Weight (kg) : | 19 |
| Nominal Output Voltage (V) : | 220/230/240 |
GW6000-MS-30
| Max. Input Voltage (V): | 600 |
|---|---|
| Max. Input Current per MPPT (A): | 20 |
| Number of MPP trackers/Number of Strings per MPPT: | 3/1 |
| Weight (kg) : | 19 |
| Nominal Output Voltage (V) : | 220/230/240 |
GW5000-MS-30
| Max. Input Voltage (V): | 600 |
|---|---|
| Max. Input Current per MPPT (A): | 20 |
| Number of MPP trackers/Number of Strings per MPPT: | 3/1 |
| Weight (kg) : | 19 |
| Nominal Output Voltage (V) : | 220/230/240 |
