Description

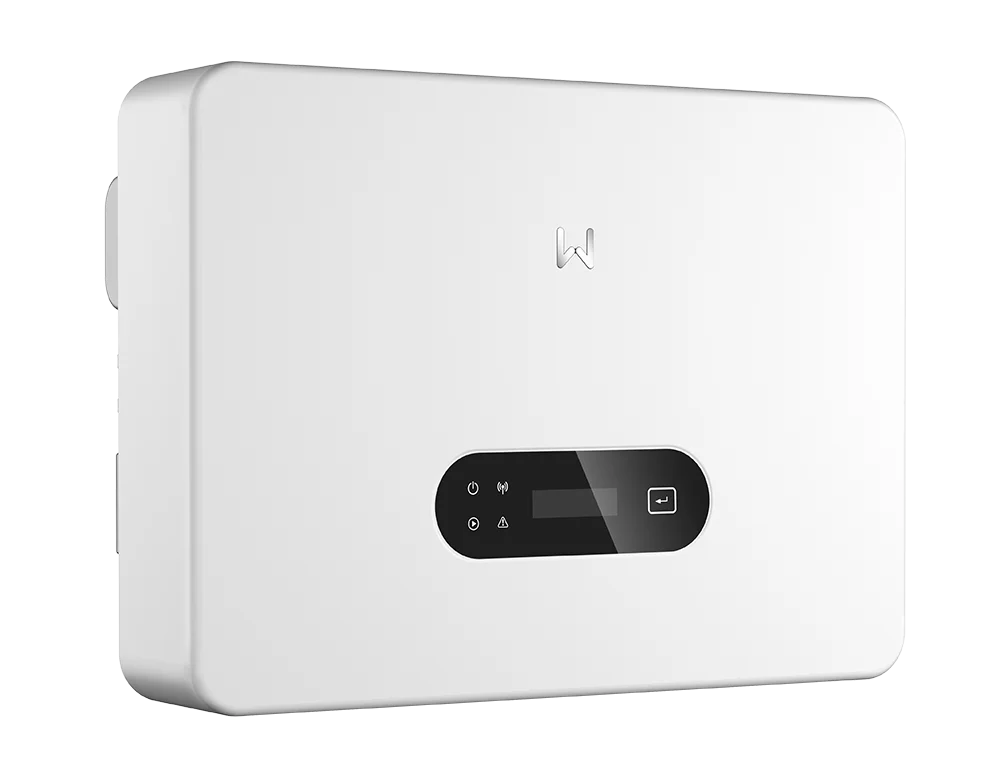

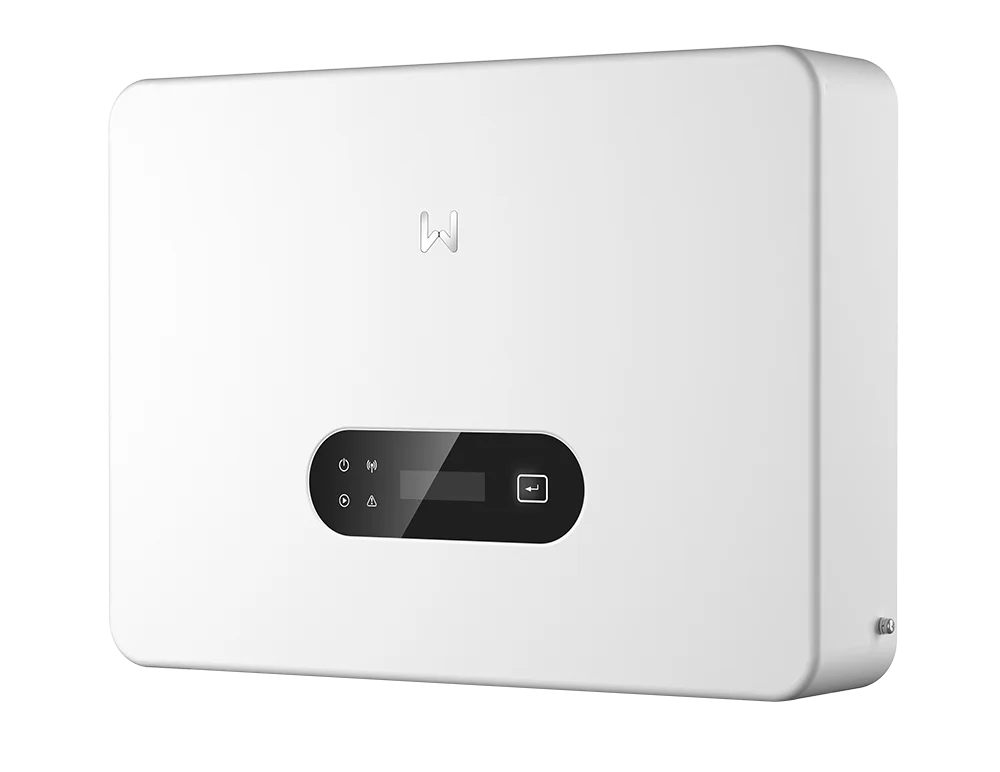

The GoodWe MS G4 Series is a single phase solar inverter rated 7.5 to 10kW with 2 or 3 MPPTs, offering quiet operation below 30 decibels for the home.
Key Features
- Superb Safety & Reliability: GoodWe's MS G4 Series features a built-in rapid shutdown transmitter, enhancing system integration and safety. With optional AI-driven Arc Fault Circuit Interrupter (AFCI), the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously.
- Flexible & Adaptable Applications: The MS G4 Series inverter supports mixed parallel connection with GoodWe DNS G4 inverters when paired with the GoodWe smart dongle EzLink3000. This enables flexible and efficient system expansion while reducing investment costs.
Technical Specifications
GW7.5K-MS-G40
| Max. Input Voltage (V): | 600 |
|---|---|
| Max. Input Current per MPPT (A): | 20 |
| Number of MPP trackers/Number of Strings per MPPT: | 3/1 |
| Weight (kg) : | 16 |
| Nominal Output Voltage (V) : | 220 / 230 / 240, L / N / PE |
GW8.5K-MS-G40
| Max. Input Voltage (V): | 600 |
|---|---|
| Max. Input Current per MPPT (A): | 20 |
| Number of MPP trackers/Number of Strings per MPPT: | 3/1 |
| Weight (kg) : | 16 |
| Nominal Output Voltage (V) : | 220 / 230 / 240, L / N / PE |
GW10K-MS-G40
| Max. Input Voltage (V): | 600 |
|---|---|
| Max. Input Current per MPPT (A): | 20 |
| Number of MPP trackers/Number of Strings per MPPT: | 3/1 |
| Weight (kg) : | 16 |
| Nominal Output Voltage (V) : | 220 / 230 / 240, L / N / PE |
GW7.5K-MS-G41
| Max. Input Voltage (V): | 600 |
|---|---|
| Max. Input Current per MPPT (A): | 20 |
| Number of MPP trackers/Number of Strings per MPPT: | 2/1 |
| Weight (kg) : | 16 |
| Nominal Output Voltage (V) : | 220 / 230, L / N / PE |
GW8K-MS-G40
| Max. Input Voltage (V): | 600 |
|---|---|
| Max. Input Current per MPPT (A): | 20 |
| Number of MPP trackers/Number of Strings per MPPT: | 2/1 |
| Weight (kg) : | 16 |
| Nominal Output Voltage (V) : | 220 / 230, L / N / PE |
