Description

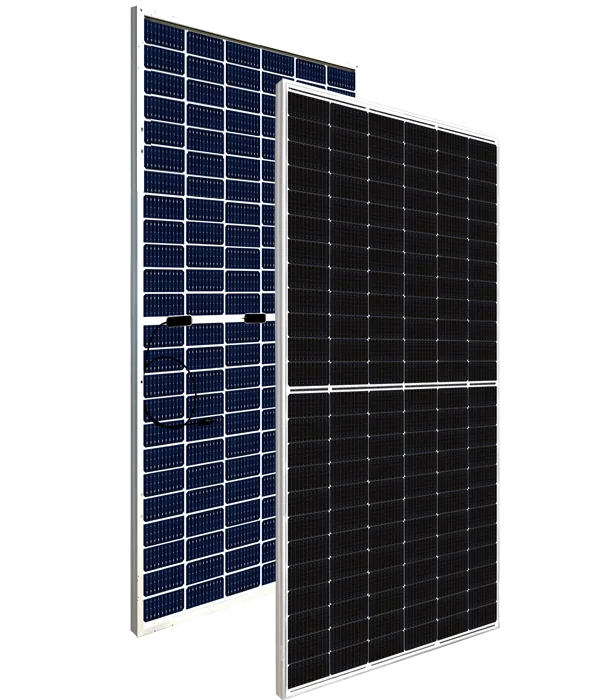

Canadian BiHiku6 550W Solar Panel is a high-efficiency solar panel that combines monocrystalline and bifacial cell technologies, resulting in producing more energy.
Technical Specifications
ELECTRICAL DATA
| Operating Temperature | -40°C ~ +85°C |
|---|---|
| Max. System Voltage | 1500 V (IEC/UL) or 1000 V (IEC/UL) |
| Module Fire Performance | TYPE 29 (UL 61730) or CLASS C (IEC61730) |
| Max. Series Fuse Rating | 30 A |
| Protection Class | Class II |
| Power Tolerance | 0 ~ + 10 W |
| Power Bifaciality* | 70 % |
ELECTRICAL DATA | STC*
| Module Type | CS6W-550MB-AG |
|---|---|
| Nominal Maximum Power(Pmax) [W] | 550 |
| Opt. Operating Voltage(Vmp) [V] | 41.7 |
| Opt. Operating Current(Imp) [A] | 13.20 |
| Short Circuit Current (Isc) [A] | 14.00 |
| Open Circuit Voltage (Voc) [V] | 49.6 |
| Module Efficiency [%] | 21.3 |
ELECTRICAL DATA | NMOT*
| Nominal Maximum Power(Pmax) [W] | 412 |
|---|---|
| Opt. Operating Voltage(Vmp) [V] | 39.1 |
| Opt. Operating Current(Imp) [A] | 10.55 |
| Short Circuit Current (Isc) [A] | 11.29 |
| Open Circuit Voltage (Voc) [V] | 46.9 |
MECHANICAL DATA
| Cell Type | Mono-crystalline |
|---|---|
| Cell Arrangement | 144 [2âx (12 xâ6) ] |
| Dimension | 2278 ˣ 1134 ˣ 30 mm (89.7 ˣ 44.6 ˣ 1.18 in) |
| Weight | 32.3 kg (71.2 lbs) |
| Front Glass | 2.0 mm heat strengthened glass with anti-reflective coating |
| Back Glass | 2.0 mm heat strengthened glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68, 3 bypass diodes |
| Cable | 4.0 mm² (IEC), 12 AWG (UL) |
| Cable Length (Including Connector) | 300 mm (11.8 in) (+) / 200 mm (7.9 in) (-) or customized length* |
| Connector | T6 or MC4-EVO2 or MC4-EVO2A |
| Per Pallet | 35 pieces |
| Per Container (40' HQ) | 700 pieces or 560 pieces |
TEMPERATURE CHARACTERISTICS
| Temperature Coefficient (Pmax) | -0.34 % / °C |
|---|---|
| Temperature Coefficient (Voc) | -0.26 % / °C |
| Temperature Coefficient (Isc) | 0.05 % / °C |
| Nominal Module Operating Temperature | 41 ± 3°C |
