Description

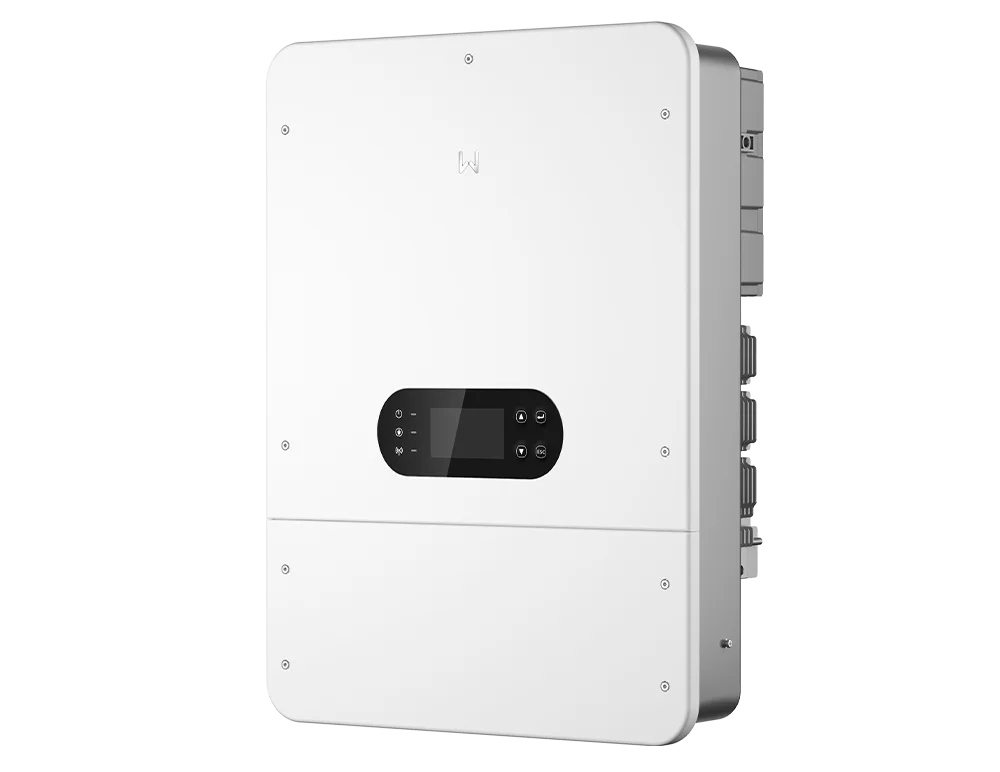

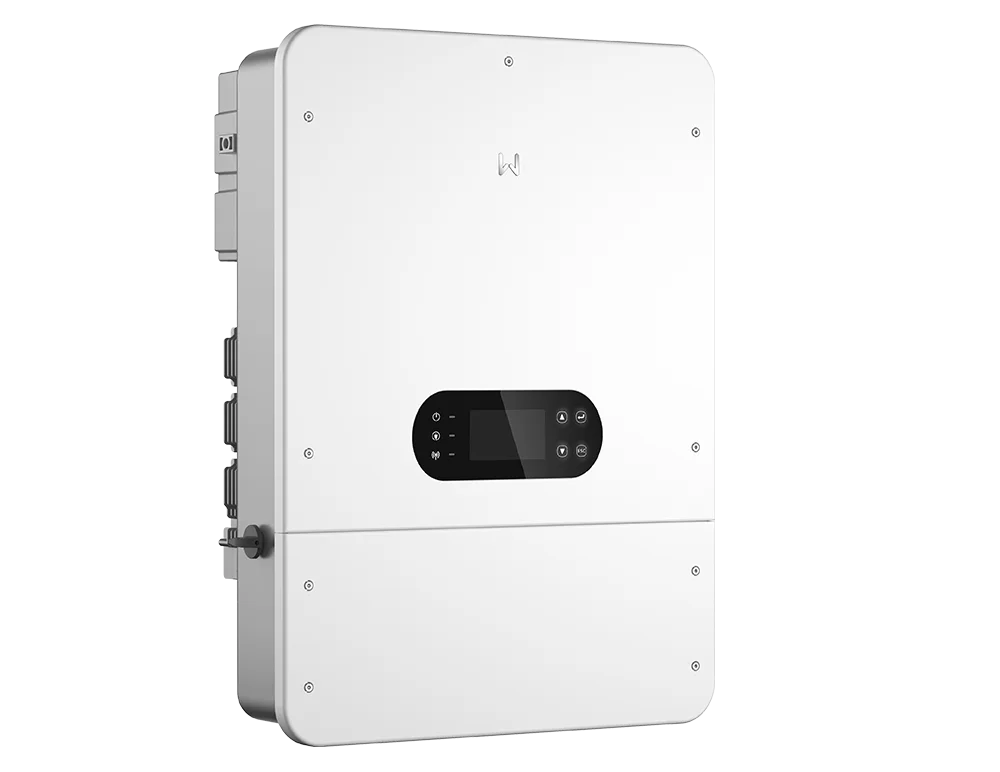

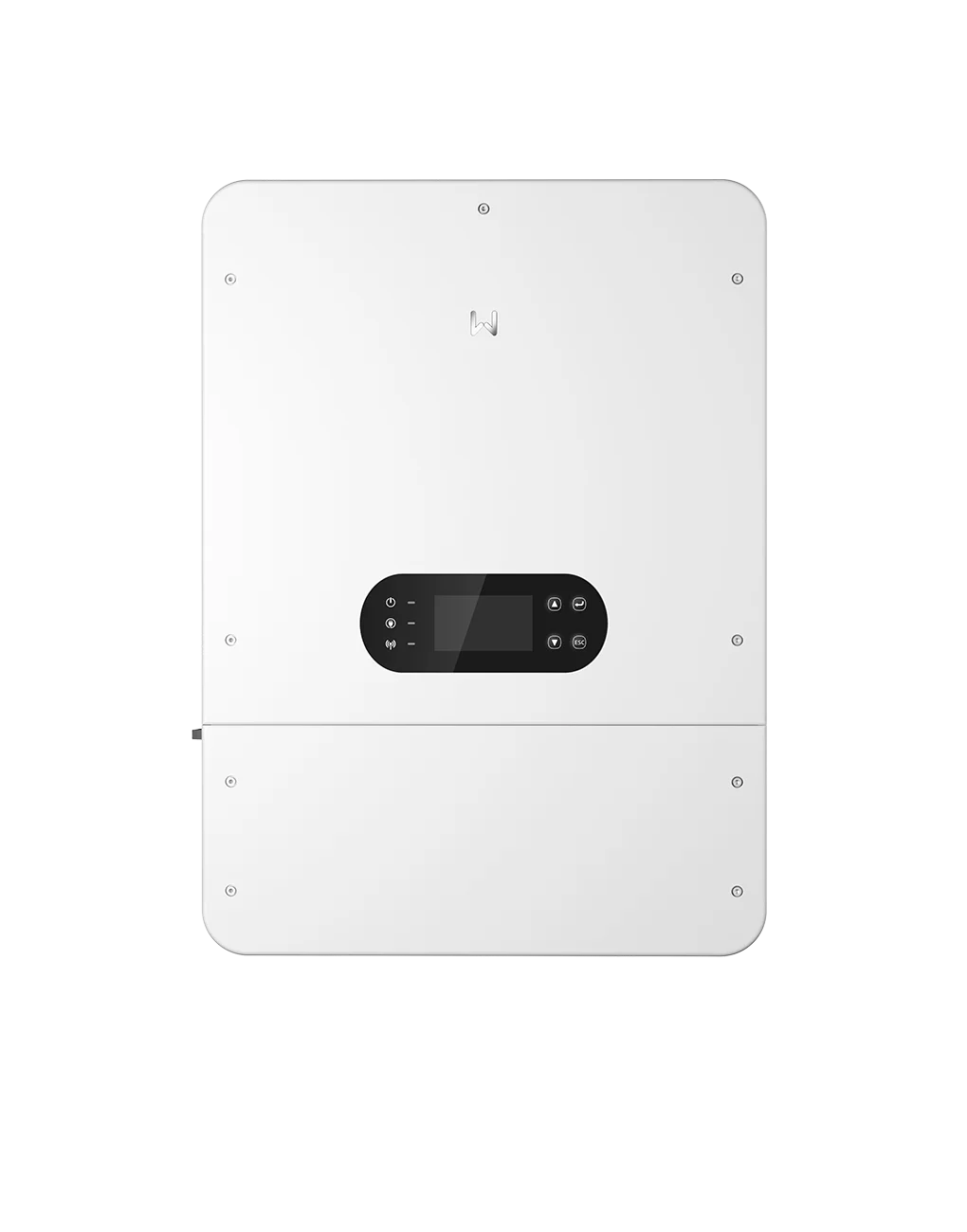

The GoodWe ET LV Series is a three phase hybrid inverter rated 5 to 20kW with up to 4 MPPTs, offering 20A input current and IP66 protection for homes.

Key Features

• Reliable Backup Power, Always Ready: With seamless switching in under 4ms and full compatibility with generators—including battery charging support—the ET LV ensures your essential loads stay powered without interruption, even during outages.
• High Performance for Demanding Energy Needs: With a 20A input current per string and support for up to 2x PV input capacity, the ET LV is built to handle high-power solar arrays. Its dual independent battery inputs with a total of 416A enable greater energy throughput and system flexibility—making it the ideal choice for homes with high energy demands and scalable storage setups.

Technical Specifications

GW20K-ET-L-G10

Battery Voltage Range (V)	40 ~ 60
Max. Continuous Charging Current (A)	208 / 208
Max. Continuous Discharging Current (A)	208 / 208
Max. Apparent Power to Utility Grid (VA)	22000
Max. MPPT Current (A)	20 / 20 / 20 / 20

GW15K-ET-L-G10

Battery Voltage Range (V)	40 ~ 60
Max. Continuous Charging Current (A)	165 / 165
Max. Continuous Discharging Current (A)	165 / 165
Max. Apparent Power to Utility Grid (VA)	16500
Max. MPPT Current (A)	20 / 20 / 20 / 20

GW12K-ET-L-G10

Battery Voltage Range (V)	40 ~ 60
Max. Continuous Charging Current (A)	250
Max. Continuous Discharging Current (A)	250
Max. Apparent Power to Utility Grid (VA)	13200
Max. MPPT Current (A)	20 / 20 / 20

GW10K-ET-L-G10

Battery Voltage Range (V)	40 ~ 60
Max. Continuous Charging Current (A)	220
Max. Continuous Discharging Current (A)	220
Max. Apparent Power to Utility Grid (VA)	11000
Max. MPPT Current (A)	20 / 20 / 20

GW8K-ET-L-G10

Battery Voltage Range (V)	40 ~ 60
Max. Continuous Charging Current (A)	175
Max. Continuous Discharging Current (A)	175
Max. Apparent Power to Utility Grid (VA)	8800
Max. MPPT Current (A)	20 / 20

GW6K-ET-L-G10

Battery Voltage Range (V)	40 ~ 60
Max. Continuous Charging Current (A)	135
Max. Continuous Discharging Current (A)	135
Max. Apparent Power to Utility Grid (VA)	6600
Max. MPPT Current (A)	20 / 20

GW5K-ET-L-G10

Battery Voltage Range (V)	40 ~ 60
Max. Continuous Charging Current (A)	125
Max. Continuous Discharging Current (A)	125
Max. Apparent Power to Utility Grid (VA)	5500
Max. MPPT Current (A)	20 / 20
