Description

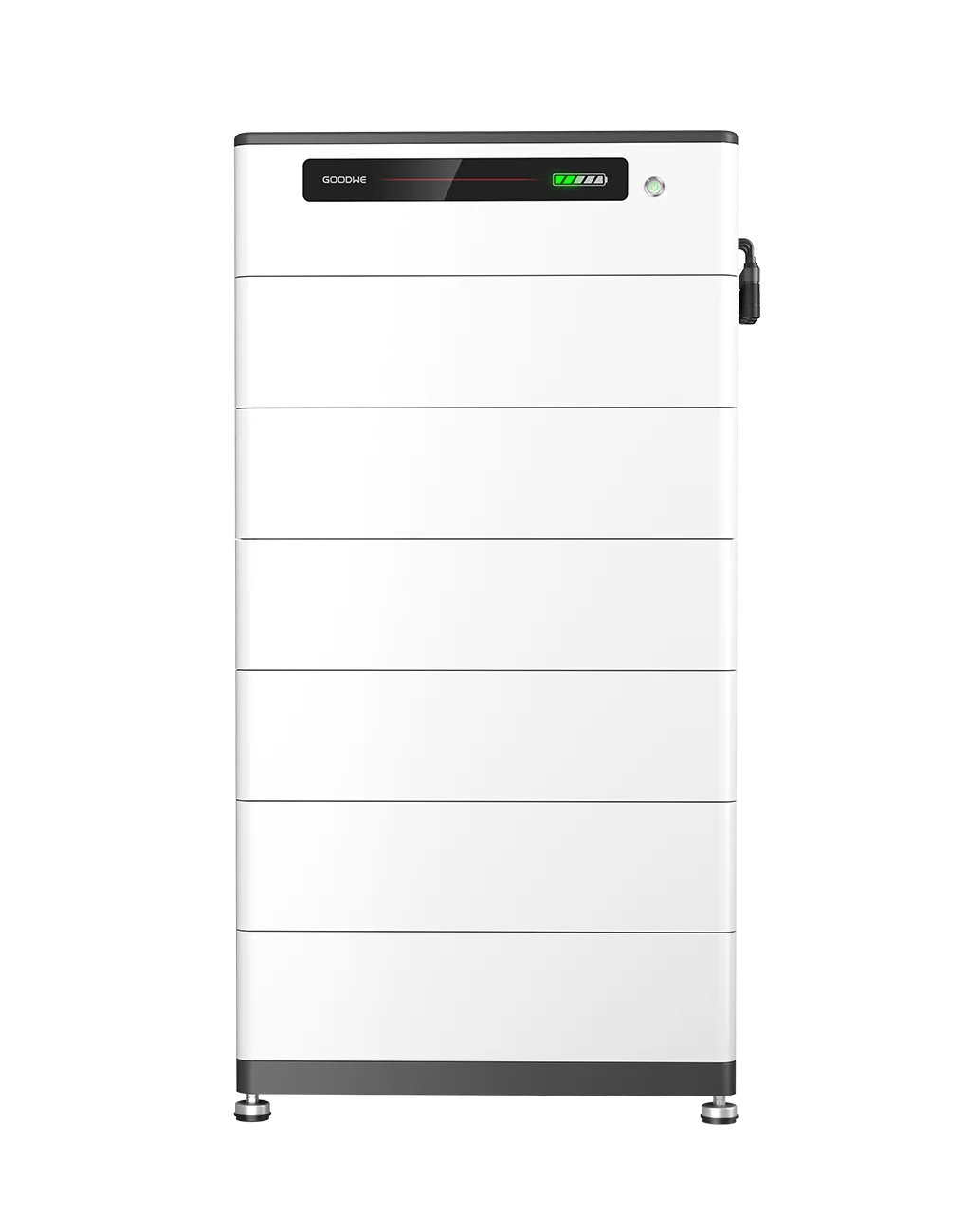

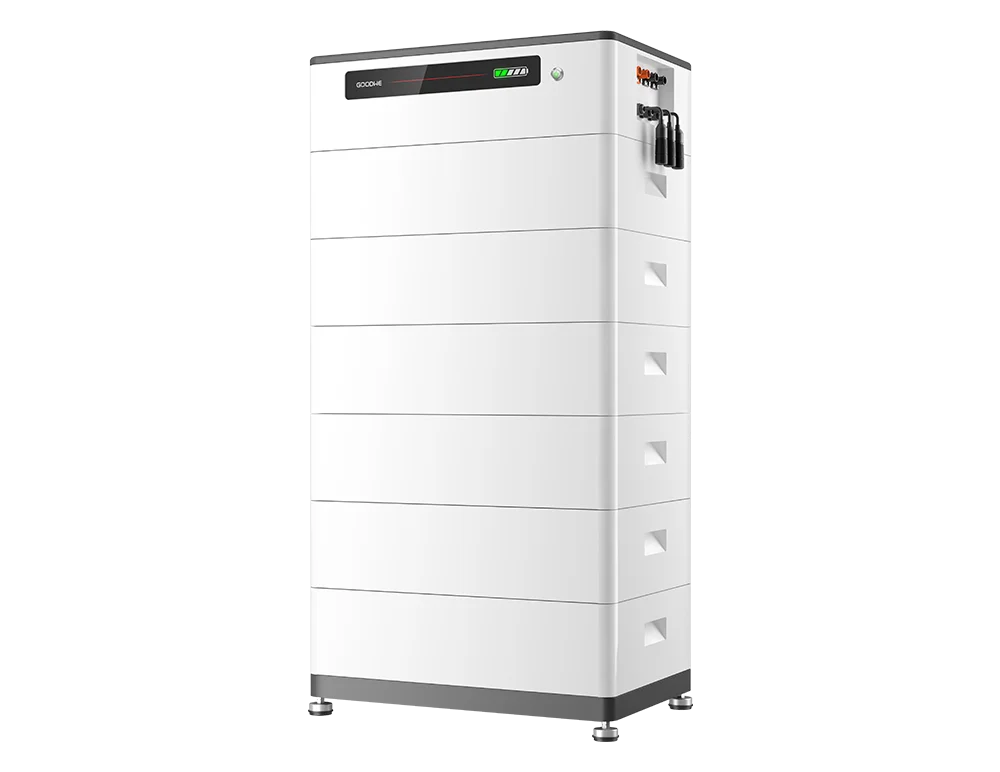

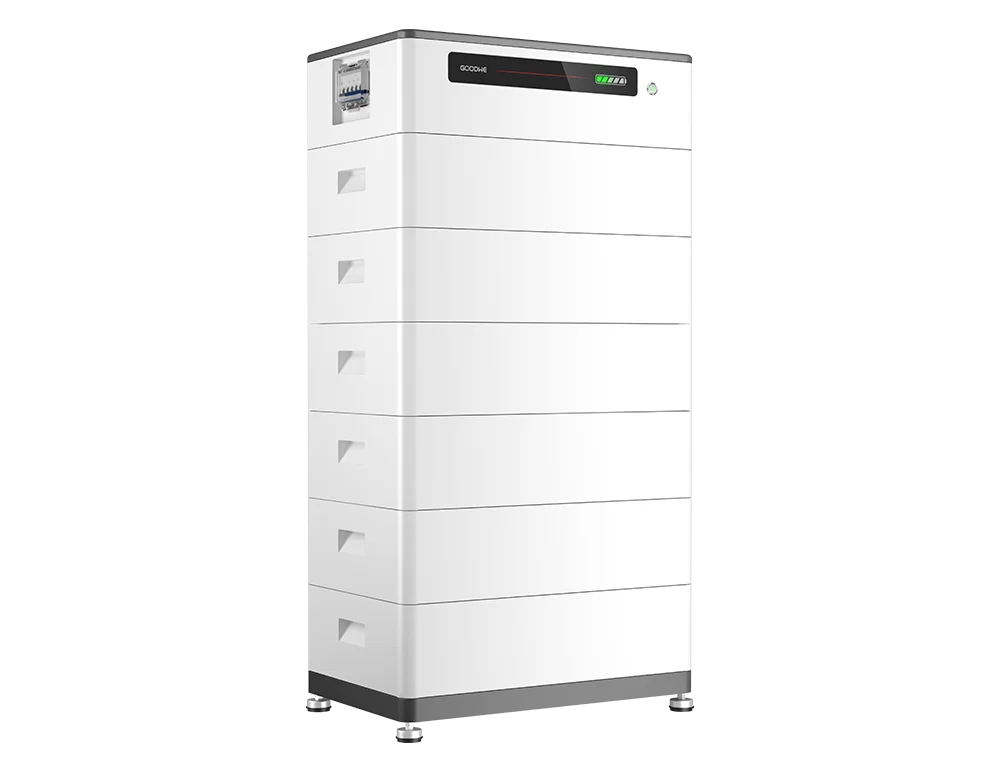

The GoodWe Lynx F G2 Series is a high voltage battery rated 6.4 to 28.8kWh, featuring plug and play installation and IP55 protection for modern homes.

Key Features

• Smart Control for Smart Energy: Lynx F G2 Series accommodates smart remote monitoring of the whole energy storage system and remote update. It can also automatically reboot if the supply voltage is high enough again after an undervoltage fault occurs. Take smart control of your smart energy.
• Friendly & Thoughtful Design: The stackable auto-recognition modules are built for ultra-simplified assembly, and pre-wired communication cables provide Plug & Play wiring to skip the complex internal wiring and commissioning, bringing fast installations for an easy start.
• Flexible & Adaptable Applications: Featuring compatibility with GoodWe BH/EH/BT/ET energy storage inverters, Lynx F G2 Series is an ideal choice to support the GoodWe one-stop energy storage solution. It accommodates remote monitoring of the whole energy storage system with a single App on-the-go, saving the bother of cross-platform management.

Technical Specifications

LX F6.4-H-20

Usable Energy (kWh)	6.4
Nominal Voltage (V)	128
Nominal Charging / Discharging Current (A)	35/35
Installation Location	Grounded
Enclosure Type	IP55

LX F28.8-H-20

Usable Energy (kWh)	28.8
Nominal Voltage (V)	576
Nominal Charging / Discharging Current (A)	35/35
Installation Location	Grounded
Enclosure Type	IP55

LX F25.6-H-20

Usable Energy (kWh)	25.6
Nominal Voltage (V)	512
Nominal Charging / Discharging Current (A)	35/35
Installation Location	Grounded
Enclosure Type	IP55

LX F22.4-H-20

Usable Energy (kWh)	22.4
Nominal Voltage (V)	448
Nominal Charging / Discharging Current (A)	35/35
Installation Location	Grounded
Enclosure Type	IP55

LX F19.2-H-20

Usable Energy (kWh)	19.2
Nominal Voltage (V)	384
Nominal Charging / Discharging Current (A)	35/35
Installation Location	Grounded
Enclosure Type	IP55

LX F16.0-H-20

Usable Energy (kWh)	16.0
Nominal Voltage (V)	320
Nominal Charging / Discharging Current (A)	35/35
Installation Location	Grounded
Enclosure Type	IP55

LX F12.8-H-20

Usable Energy (kWh)	12.8
Nominal Voltage (V)	256
Nominal Charging / Discharging Current (A)	35/35
Installation Location	Grounded
Enclosure Type	IP55

LX F9.6-H-20

Usable Energy (kWh)	9.6
Nominal Voltage (V)	192
Nominal Charging / Discharging Current (A)	35/35
Installation Location	Grounded
Enclosure Type	IP55
