Description

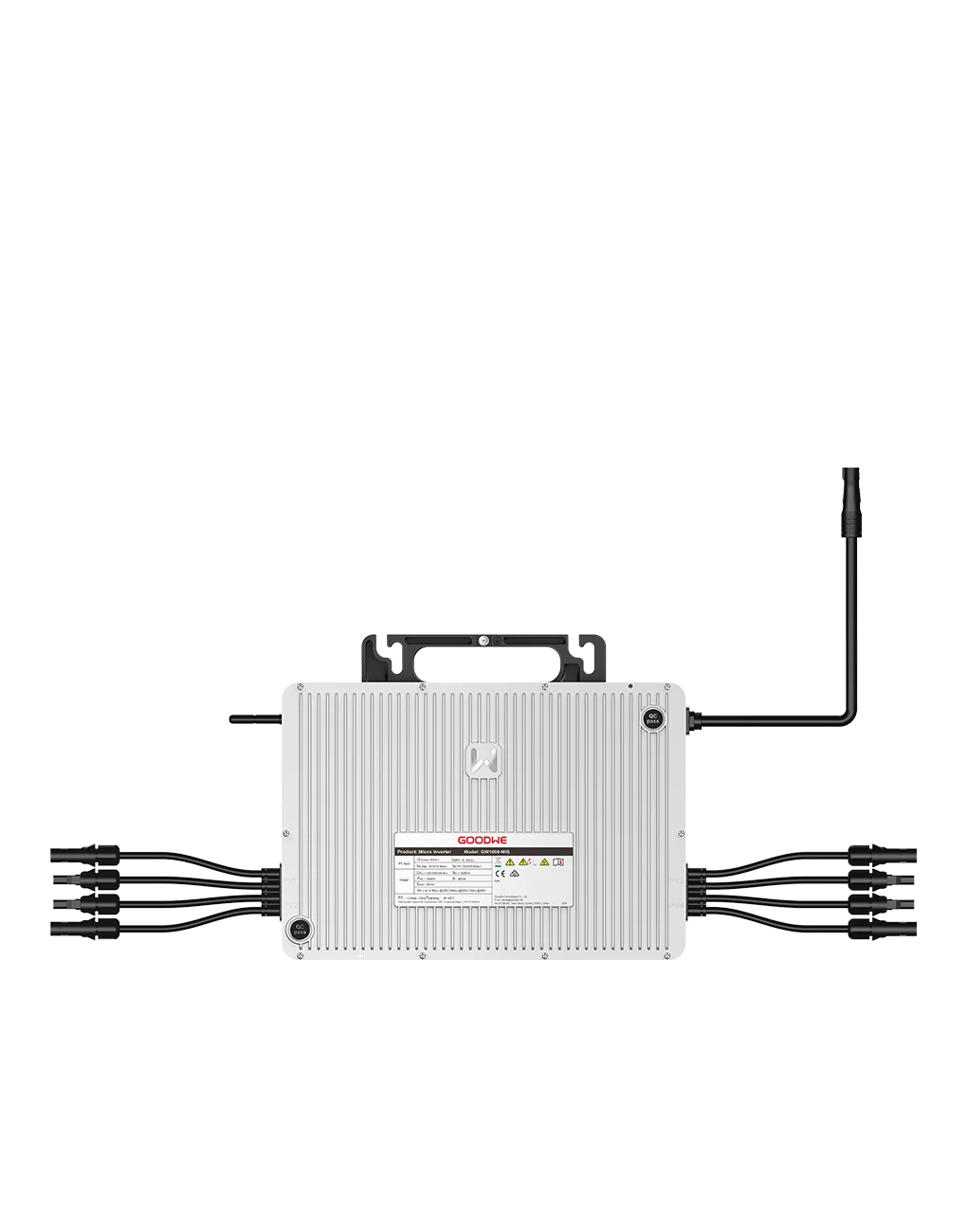

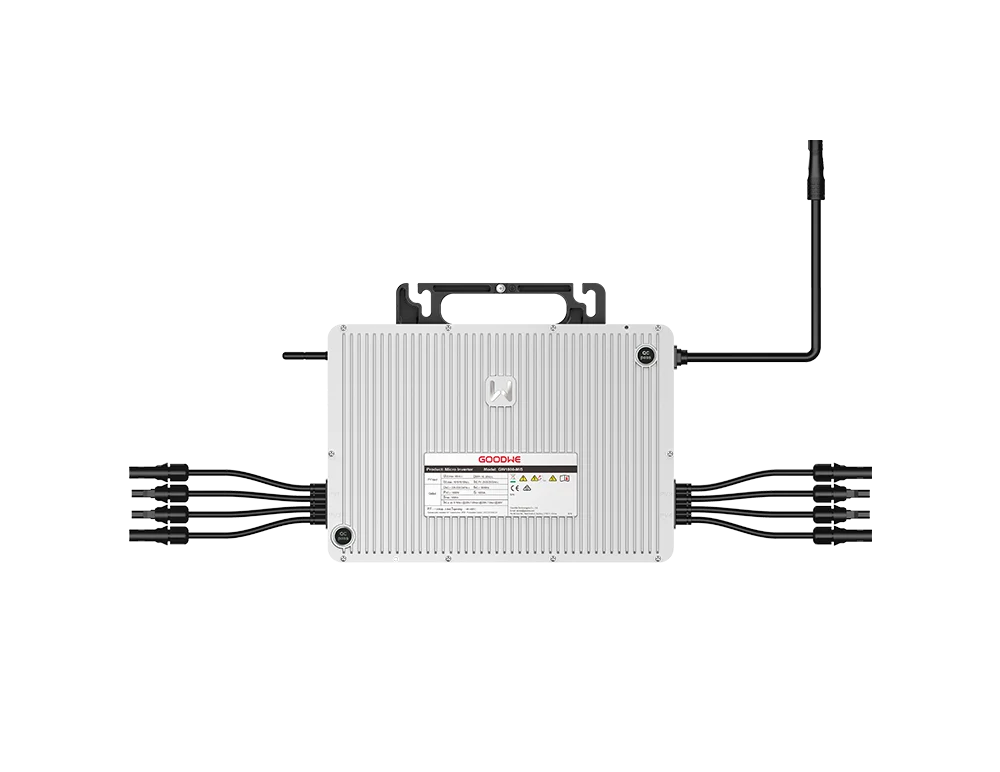

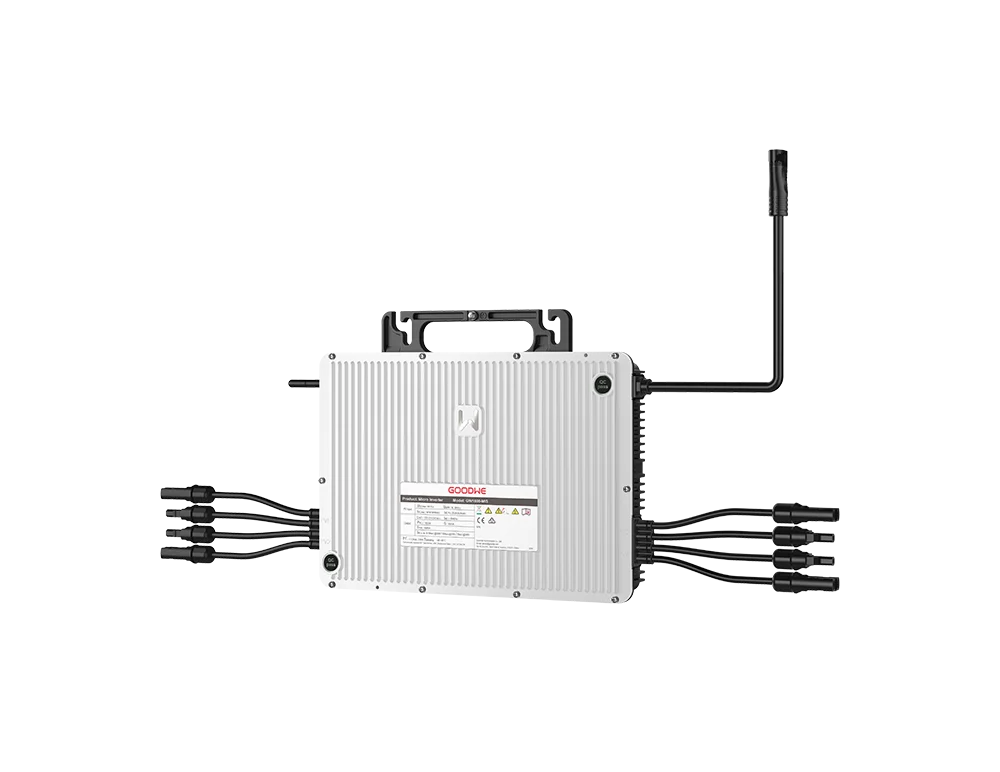

GoodWe's MIS Series is a compact single phase microinverter rated 1.6 to 2kW, offering IP67 protection and simple plug and play installation for homes.
Key Features
- Superb Safety & Reliability: MIS Series microinverters prioritize safety and reliability with a range of features. These include integrated grid protection relays, ensuring grid stability even during fluctuations. With a maximum DC voltage of 60V, they eliminate high DC voltage risks. The IP67 ingress protection shields them from harsh environmental conditions, and their design ensures there's no single point of system failure, guaranteeing uninterrupted operation.
- Optimal Performance: GoodWe's microinverter is crafted with individual MPPT control, resulting in a notable enhancement in power generation. The low startup voltage of 22V ensures continuous power generation from sunrise to sunset, optimizing solar energy utilization regardless of varying irradiation and weather conditions.
Technical Specifications
GW2000-MIS
| Max. Input Voltage (V) | 65 |
|---|---|
| Max. Input Current (A) | 4 × 16 |
| Number of MPP Trackers/Number of Inputs per MPPT | 4/1 |
| Weight (kg) | 6 |
| Nominal Output Voltage (V) | 1 / N / PE, 220 / 230 / 240 |
GW1800-MIS
| Max. Input Voltage (V) | 65 |
|---|---|
| Max. Input Current (A) | 4 × 16 |
| Number of MPP Trackers/Number of Inputs per MPPT | 4/1 |
| Weight (kg) | 6 |
| Nominal Output Voltage (V) | 1 / N / PE, 220 / 230 / 240 |
GW1600-MIS
| Max. Input Voltage (V) | 65 |
|---|---|
| Max. Input Current (A) | 4 × 16 |
| Number of MPP Trackers/Number of Inputs per MPPT | 4/1 |
| Weight (kg) | 6 |
| Nominal Output Voltage (V) | 1 / N / PE, 220 / 230 / 240 |
