Description

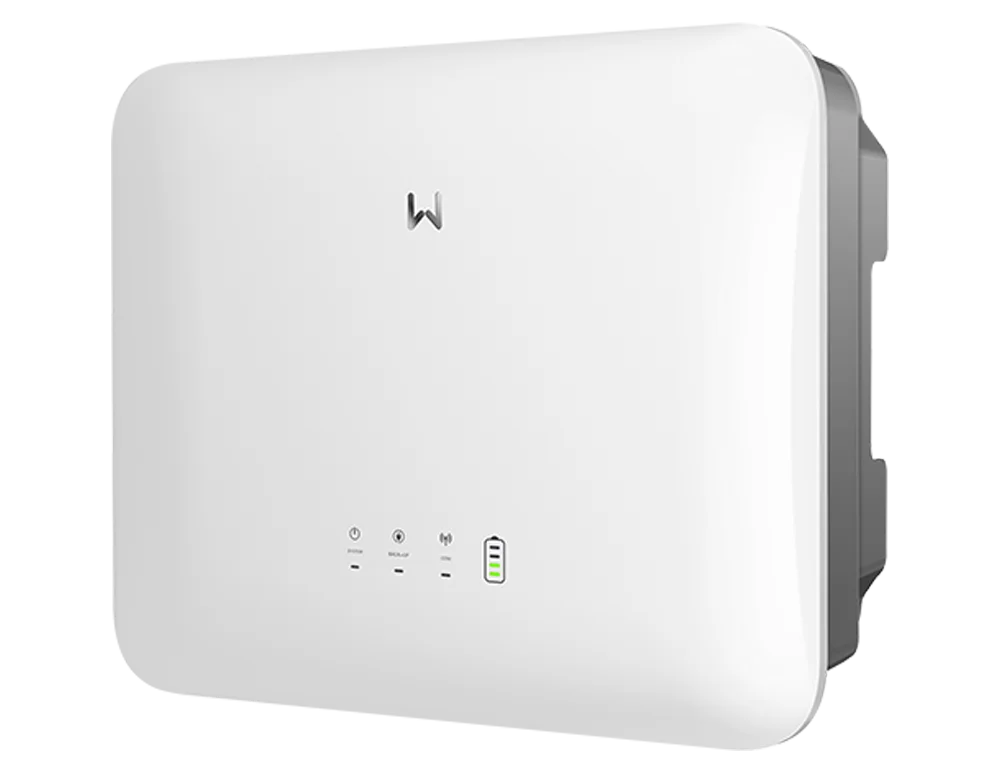

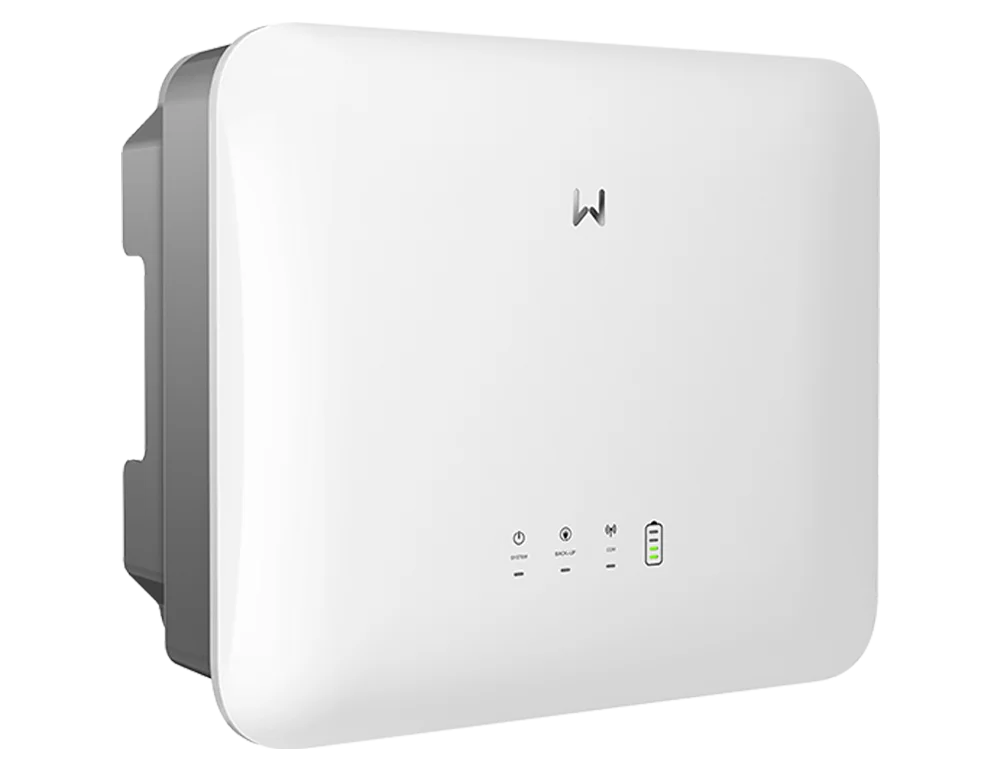

The GoodWe SBP G2 Series is an AC coupled retrofit inverter rated 3.6 to 6kW, designed to upgrade existing single phase or three phase PV systems today.
Key Features
- Smart Control for Smart Energy: SBP G2 Series can make a smart UPS-level switching to a back-up mode in less than 10 ms, ensuring the critical loads experience no interruption. Supporting a variety of communication protocols, SBP G2 Series makes the integration of smart home systems for users' custom needs possible. Easy, smart, and intuitive.
- Flexible & Adaptable Applications: GoodWe SBP G2 is suitable for both single-phase & three-phase systems, adapting to various architecture conditions of users. As an AC-coupled battery storage retrofit inverter, it can effectively upgrade an existing single-phase or three-phase on-grid PV system into an energy storage system by adding a battery.
Technical Specifications
GW6000-SBP-20
| Battery Voltage Range (V) | 40~60 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 120/120 |
| Nominal Output Voltage (V) | 220 / 230 / 240 |
| Max. Apparent Power Output to Utility Grid (VA) | 6000 |
| Back-up Nominal Apparent Power (VA) | 6000 |
GW5000-SBP-20
| Battery Voltage Range (V) | 40~60 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 120/120 |
| Nominal Output Voltage (V) | 220 / 230 / 240 |
| Max. Apparent Power Output to Utility Grid (VA) | 5000 |
| Back-up Nominal Apparent Power (VA) | 5000 |
GW3600-SBP-20
| Battery Voltage Range (V) | 40~60 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 75/75 |
| Nominal Output Voltage (V) | 220 / 230 / 240 |
| Max. Apparent Power Output to Utility Grid (VA) | 3680 |
| Back-up Nominal Apparent Power (VA) | 3680 |
