Description

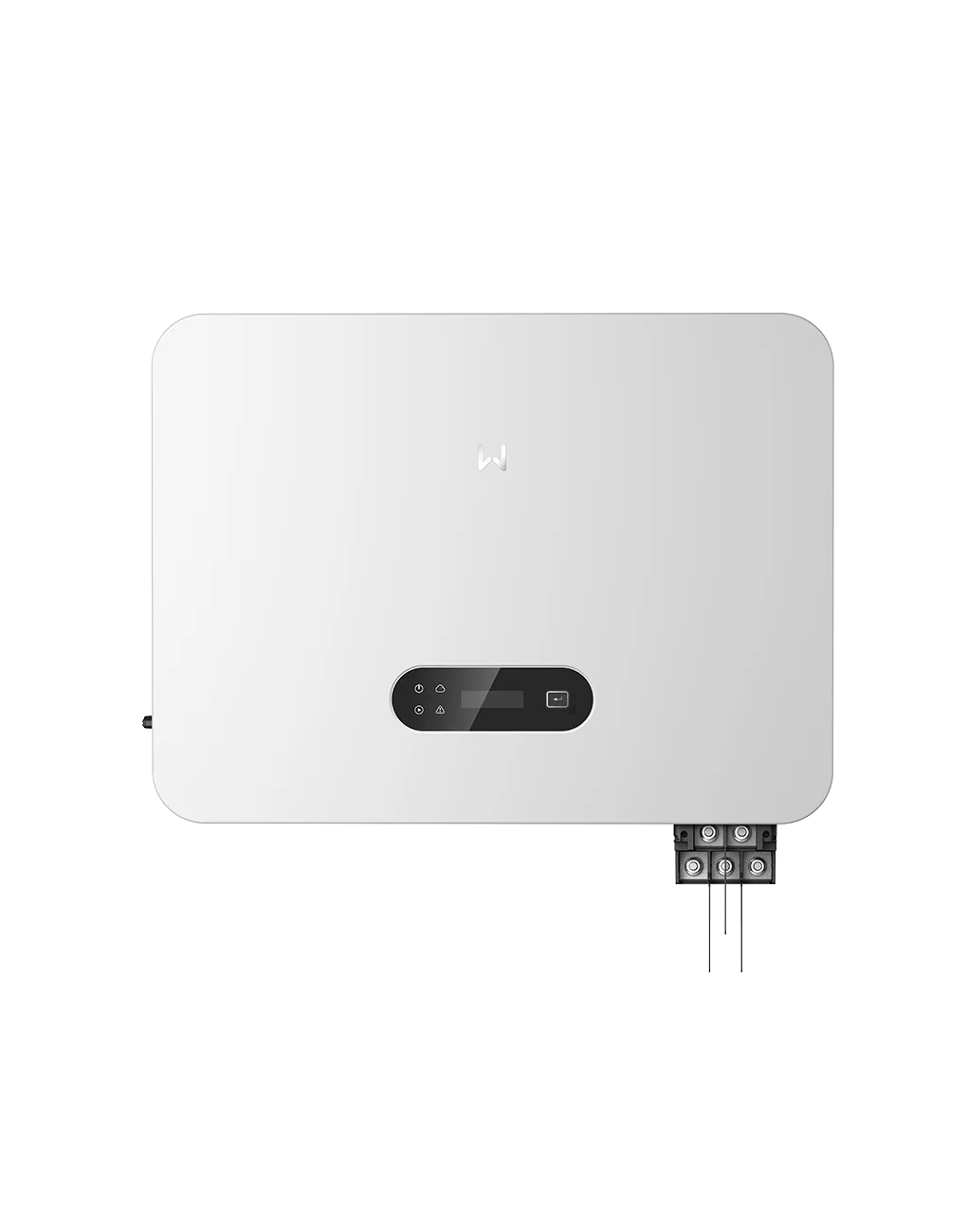

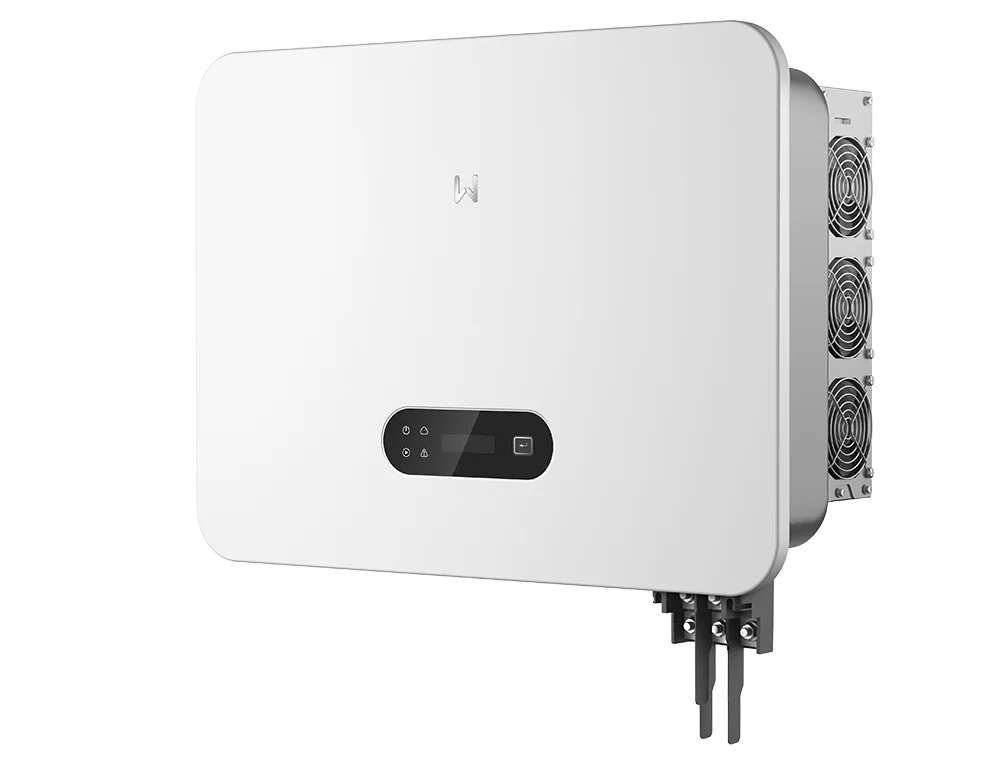

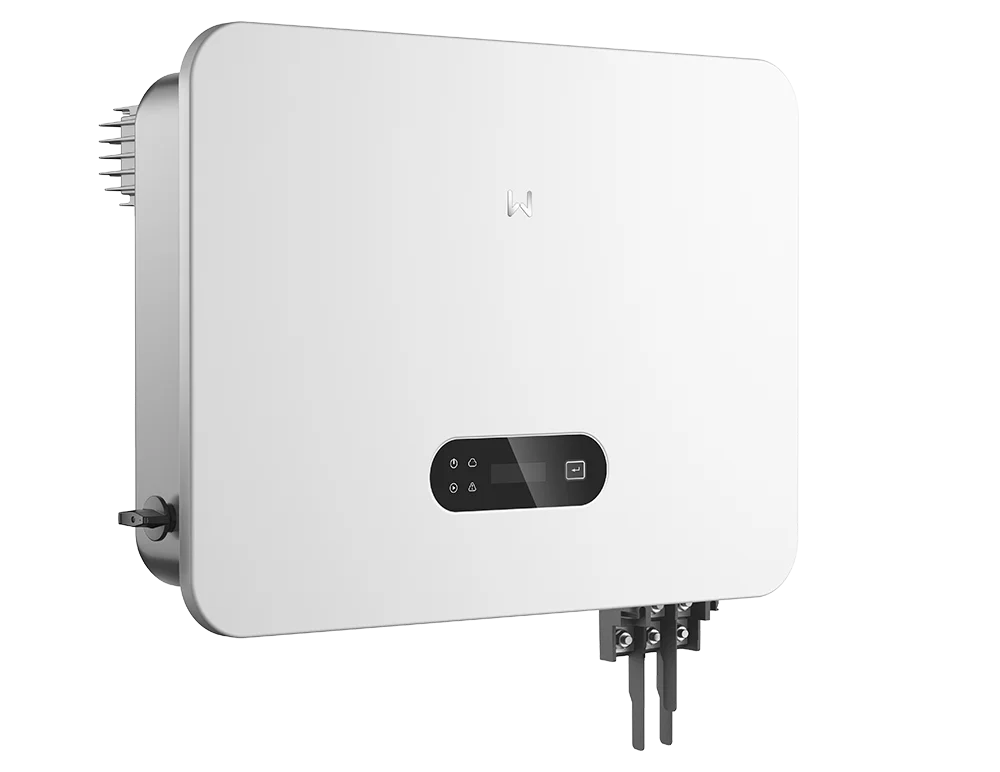

The GoodWe SDT G3 Series 30-50kW is a three phase commercial solar inverter with 2 to 4 MPPTs, offering IP66 protection and quiet operation below 50dB.
Key Features
- Superb Safety & Reliability: With optional AFCI, the inverter detects arc fault failures, sends alarms through monitoring systems, and breaks the circuit. Type II Surge Protection Device (SPD) on both sides guards against lightning and other hazards.
- High Power Generation: The SDT G3 inverter is engineered for maximum energy yield, featuring 4 MPPTs, up to 98.7% efficiency, and 21A input current per string. With support for 180% PV oversizing, it captures more solar energy throughout the day for optimal system performance.
Technical Specifications
GW30K-SDT-C30
| Max. Input Voltage (V) | 1100 |
|---|---|
| Max. Input Current per MPPT (A) | 42 / 32 |
| Number of MPP trackers/Number of Strings per MPPT | 2 / 2 |
| Max. Efficiency | 98.6% |
| Nominal Output Voltage (V) | 220 / 380, 230 / 400, 240 / 415, 3L / N / PE or 3L / PE |
GW30K-SDT-30
| Max. Input Voltage (V) | 1100 |
|---|---|
| Max. Input Current per MPPT (A) | 40 / 40 / 40 |
| Number of MPP trackers/Number of Strings per MPPT | 3 / 2 |
| Max. Efficiency | 98.7% |
| Nominal Output Voltage (V) | 220 / 380, 230 / 400, 240 / 415, 3L / N / PE or 3L / PE |
GW33K-SDT-C30
| Max. Input Voltage (V) | 1100 |
|---|---|
| Max. Input Current per MPPT (A) | 42 / 42 / 32 |
| Number of MPP trackers/Number of Strings per MPPT | 3 / 2 |
| Max. Efficiency | 98.6% |
| Nominal Output Voltage (V) | 220 / 380, 230 / 400, 240 / 415, 3L / N / PE or 3L / PE |
GW36K-SDT-C30
| Max. Input Voltage (V) | 1100 |
|---|---|
| Max. Input Current per MPPT (A) | 42 / 42 / 32 |
| Number of MPP trackers/Number of Strings per MPPT | 3 / 2 |
| Max. Efficiency | 98.6% |
| Nominal Output Voltage (V) | 220 / 380, 230 / 400, 240 / 415, 3L / N / PE or 3L / PE |
GW40K-SDT-C30
| Max. Input Voltage (V) | 1100 |
|---|---|
| Max. Input Current per MPPT (A) | 42 / 42 / 32 |
| Number of MPP trackers/Number of Strings per MPPT | 3 / 2 |
| Max. Efficiency | 98.6% |
| Nominal Output Voltage (V) | 220 / 380, 230 / 400, 240 / 415, 3L / N / PE or 3L / PE |
GW40K-SDT-P30
| Max. Input Voltage (V) | 1100 |
|---|---|
| Max. Input Current per MPPT (A) | 40 |
| Number of MPP trackers/Number of Strings per MPPT | 4 / 2 |
| Max. Efficiency | 98.6% |
| Nominal Output Voltage (V) | 220 / 380, 230 / 400, 240 / 415, 3L / N / PE or 3L / PE |
GW50K-SDT-C30
| Max. Input Voltage (V) | 1100 |
|---|---|
| Max. Input Current per MPPT (A) | 40 |
| Number of MPP trackers/Number of Strings per MPPT | 4/2 |
| Max. Efficiency | 98.7% |
| Nominal Output Voltage (V) | 220 / 380, 230 / 400, 240 / 415, 3L / N / PE or 3L / PE |
