Description

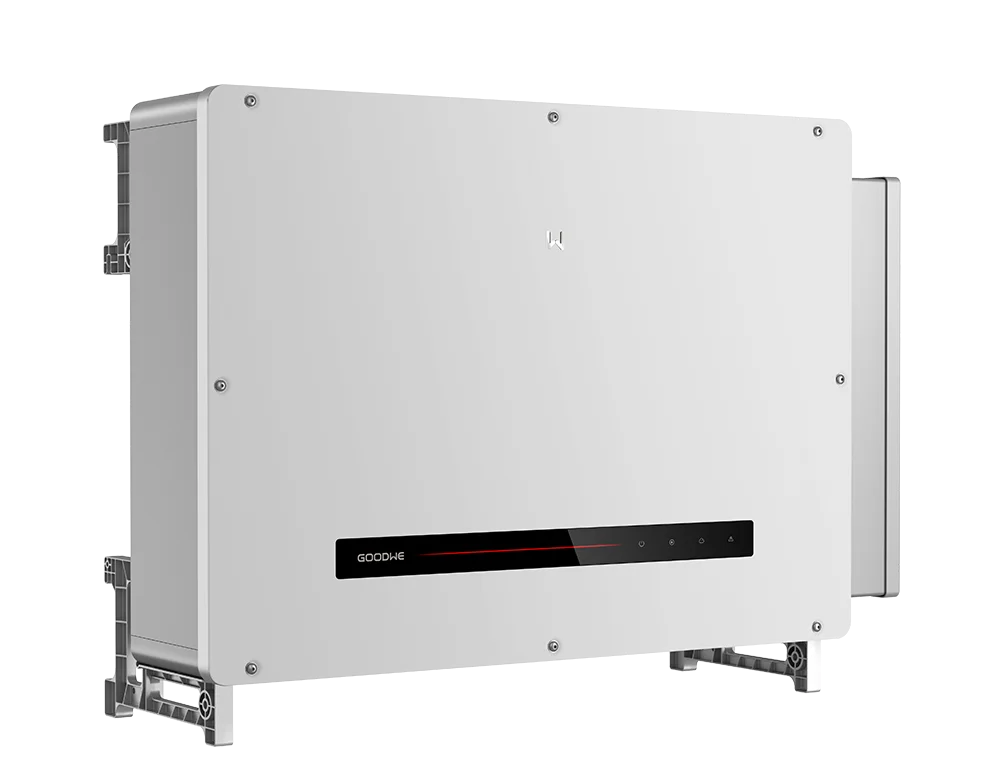

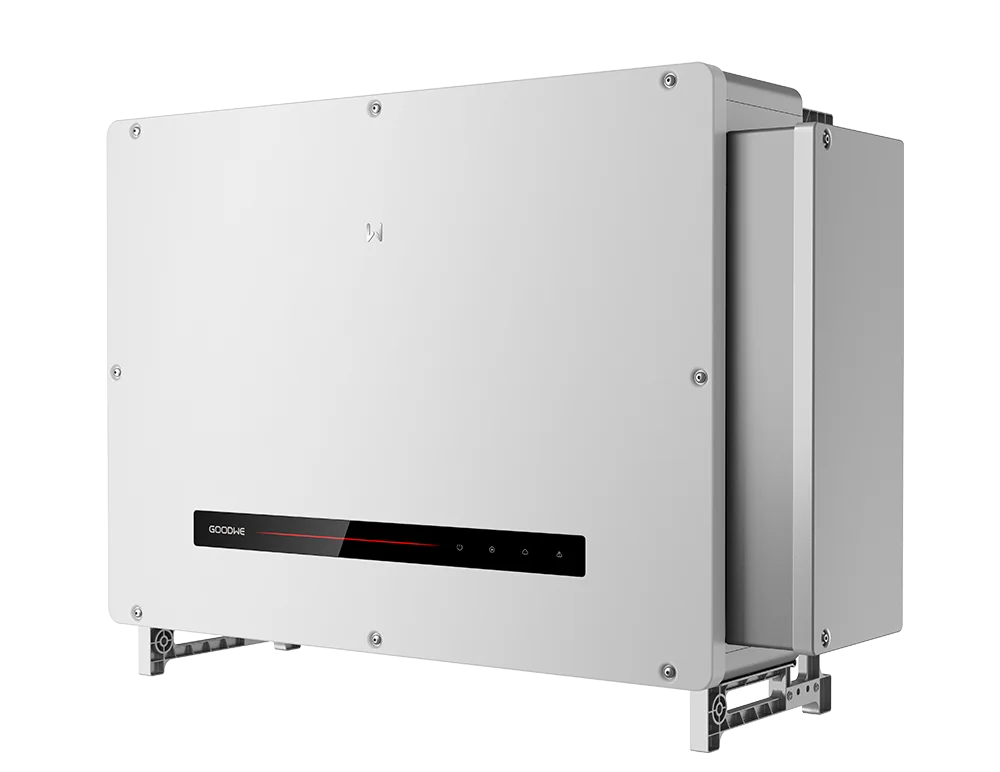

The GoodWe UT Series is a three phase utility scale solar inverter rated 320 or 350kW with 12 or 15 MPPTs, featuring Type II surge protection and IP66.
Key Features
- Superb Safety & Reliability: Type II Surge Protection Device (SPD) on both DC and AC sides protects the system from electrical fire and lightning hazards in extreme environments. Furthermore, the inverter offers IP66 rating for enhanced protection against dust and water, along with the option for C5 corrosion protection.
- Smart O&M: String level monitoring allows for complete observation of the energy system. Users can monitor each panel for smart and proactive maintenance.
- Higher Yields: UT Series is ideal for high-power 210mm modules by supporting up to 20A max. input current per string, which makes full use of power generated and guarantees LCOE for clients.
Technical Specifications
GW350KH-UT
| Max. Input Voltage (V): | 1500 |
|---|---|
| Max. Input Current per MPPT (A): | 40 |
| Number of MPP trackers/Number of Strings per MPPT: | 12/2 |
| Max. Efficiency : | 99.01% |
| Nominal Output Voltage (V) : | 800, 3L / PE |
GW350K-UT
| Max. Input Voltage (V): | 1500 |
|---|---|
| Max. Input Current per MPPT (A): | 30 |
| Number of MPP trackers/Number of Strings per MPPT: | 15/2 |
| Max. Efficiency : | 99.01% |
| Nominal Output Voltage (V) : | 800, 3L / PE |
GW320KH-UT
| Max. Input Voltage (V): | 1500 |
|---|---|
| Max. Input Current per MPPT (A): | 40 |
| Number of MPP trackers/Number of Strings per MPPT: | 12/2 |
| Max. Efficiency : | 99.01% |
| Nominal Output Voltage (V) : | 800, 3L / PE |
GW320K-UT
| Max. Input Voltage (V): | 1500 |
|---|---|
| Max. Input Current per MPPT (A): | 30 |
| Number of MPP trackers/Number of Strings per MPPT: | 15/2 |
| Max. Efficiency : | 99.01% |
| Nominal Output Voltage (V) : | 800, 3L / PE |
