Description

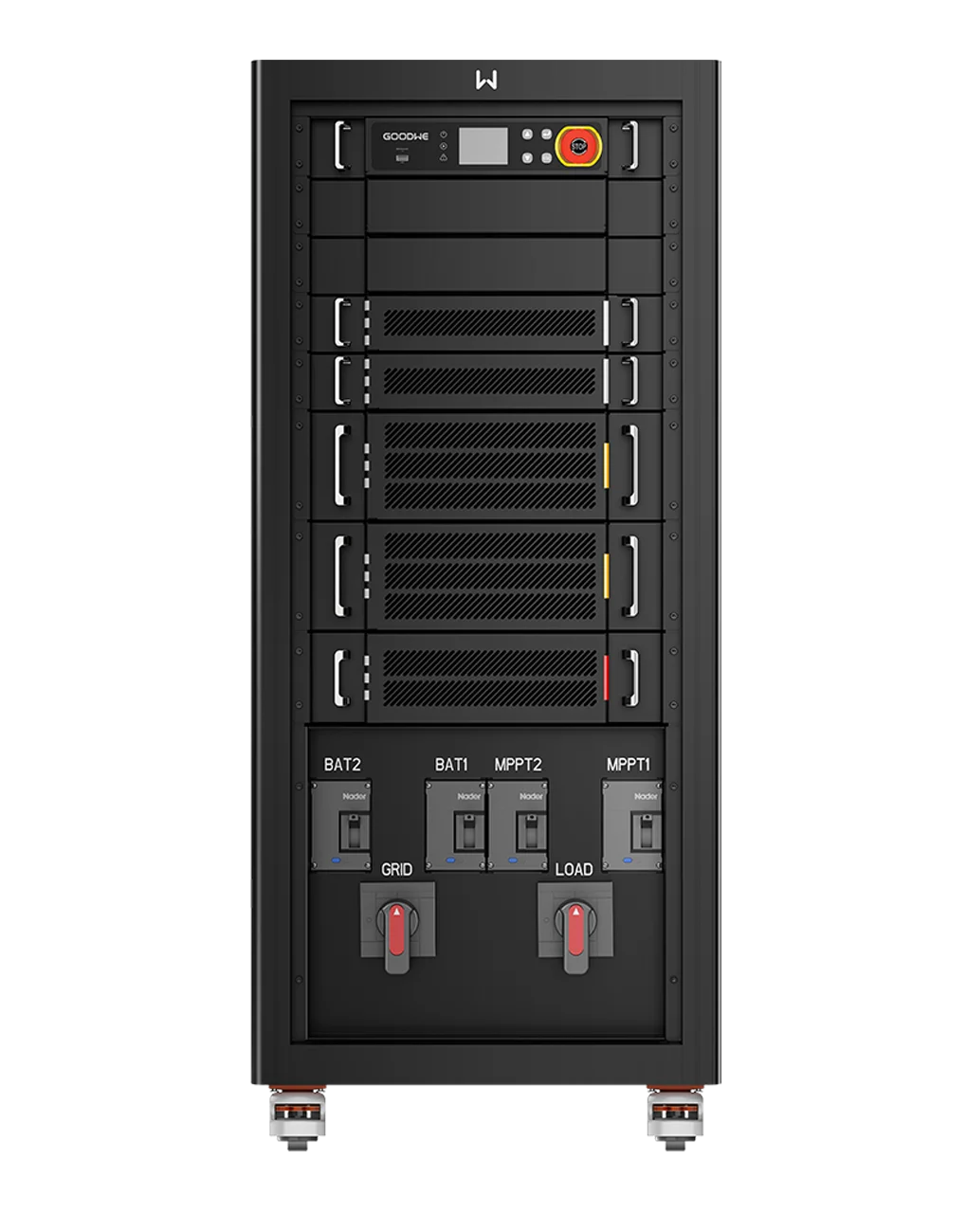

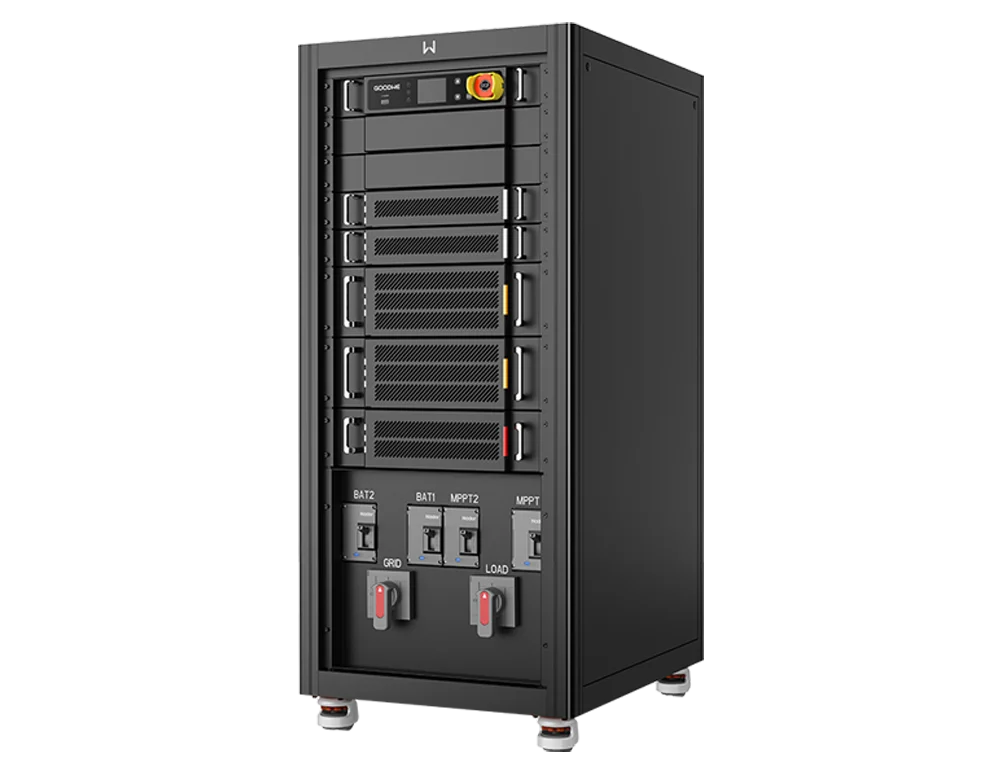

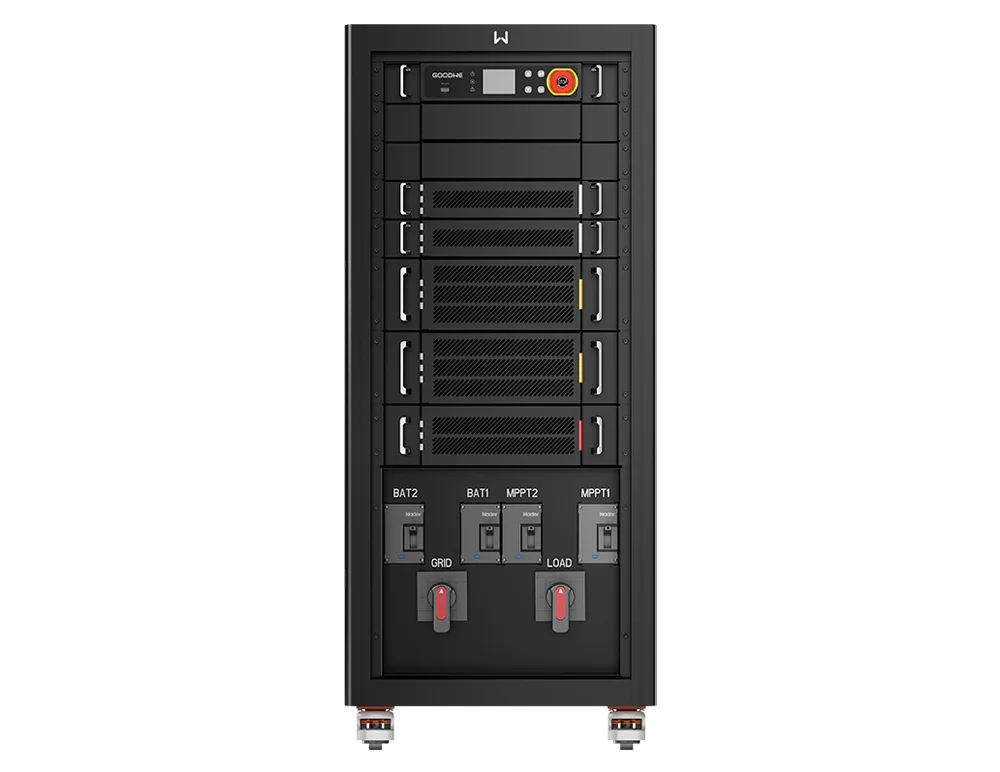

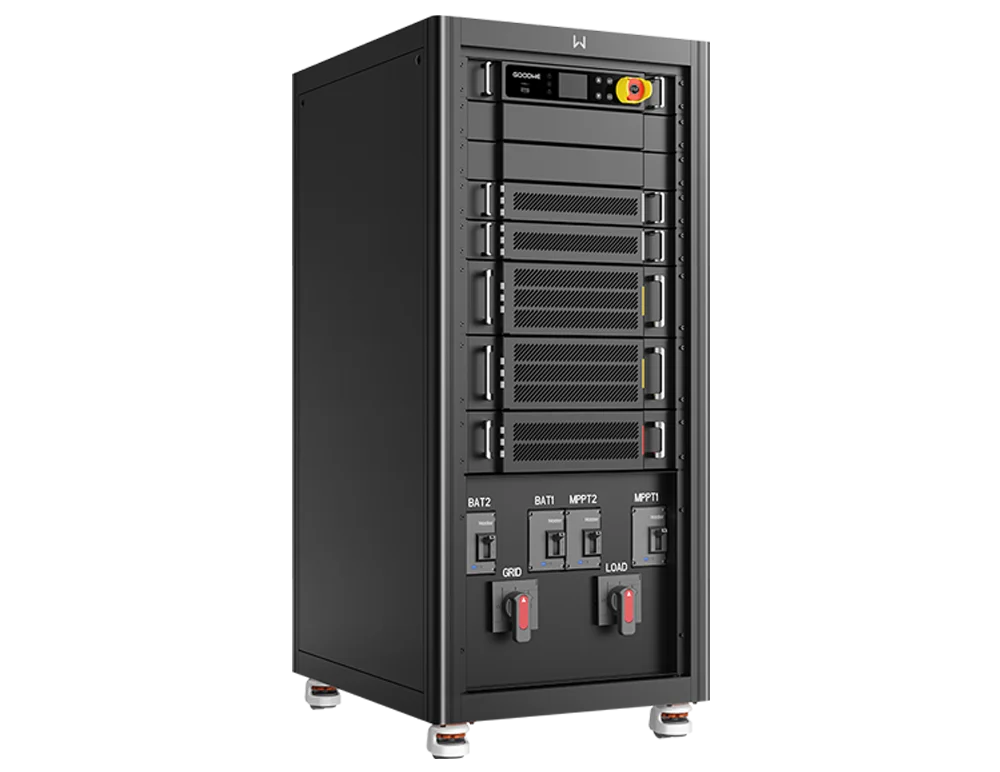

The GoodWe BTC Series is a three phase AC coupled retrofit inverter rated 50 or 100kW, featuring DC/DC, DC/AC, STS and EMS modules for high voltage PV.
Key Features
- Amazing flexibility for energy harvest: 100% unbalanced output increases load flexibility, extends application scenarios, and maximizes self-consumption ratios. The powerful 110% continuous AC overload capacity guarantees robust energy supply in backup mode.
- System stability and safety guaranteed: With the ability to make a smart UPS-level switching in less than 10 ms, an uninterruptible power supply is always operational for critical loads. The lightning protection on AC side prevents voltage peaks from destroying connected devices and secures system reliability.
Technical Specifications
GW50K06-BTC
| Battery Voltage Range (V) | 200~865 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 100/100 |
| Nominal Output Voltage (V) | 400, 3L / N / PE |
| Max. Apparent Power Output to Utility Grid (VA) | 55000 |
| Back-up Nominal Apparent Power (VA) | 50000 |
GW100K06-BTC
| Battery Voltage Range (V) | 200~865 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 100/100 |
| Nominal Output Voltage (V) | 400, 3L / N / PE |
| Max. Apparent Power Output to Utility Grid (VA) | 110000 |
| Back-up Nominal Apparent Power (VA) | 100000 |
GW100K07-BTC
| Battery Voltage Range (V) | 200~865 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 100/100 |
| Nominal Output Voltage (V) | 400, 3L / N / PE |
| Max. Apparent Power Output to Utility Grid (VA) | 110000 |
| Back-up Nominal Apparent Power (VA) | 100000 |
GW50K07-BTC
| Battery Voltage Range (V) | 200~865 |
|---|---|
| Max. Continuous Charging / Discharging Current(A) | 100/100 |
| Nominal Output Voltage (V) | 400, 3L / N / PE |
| Max. Apparent Power Output to Utility Grid (VA) | 55000 |
| Back-up Nominal Apparent Power (VA) | 50000 |
